IP67

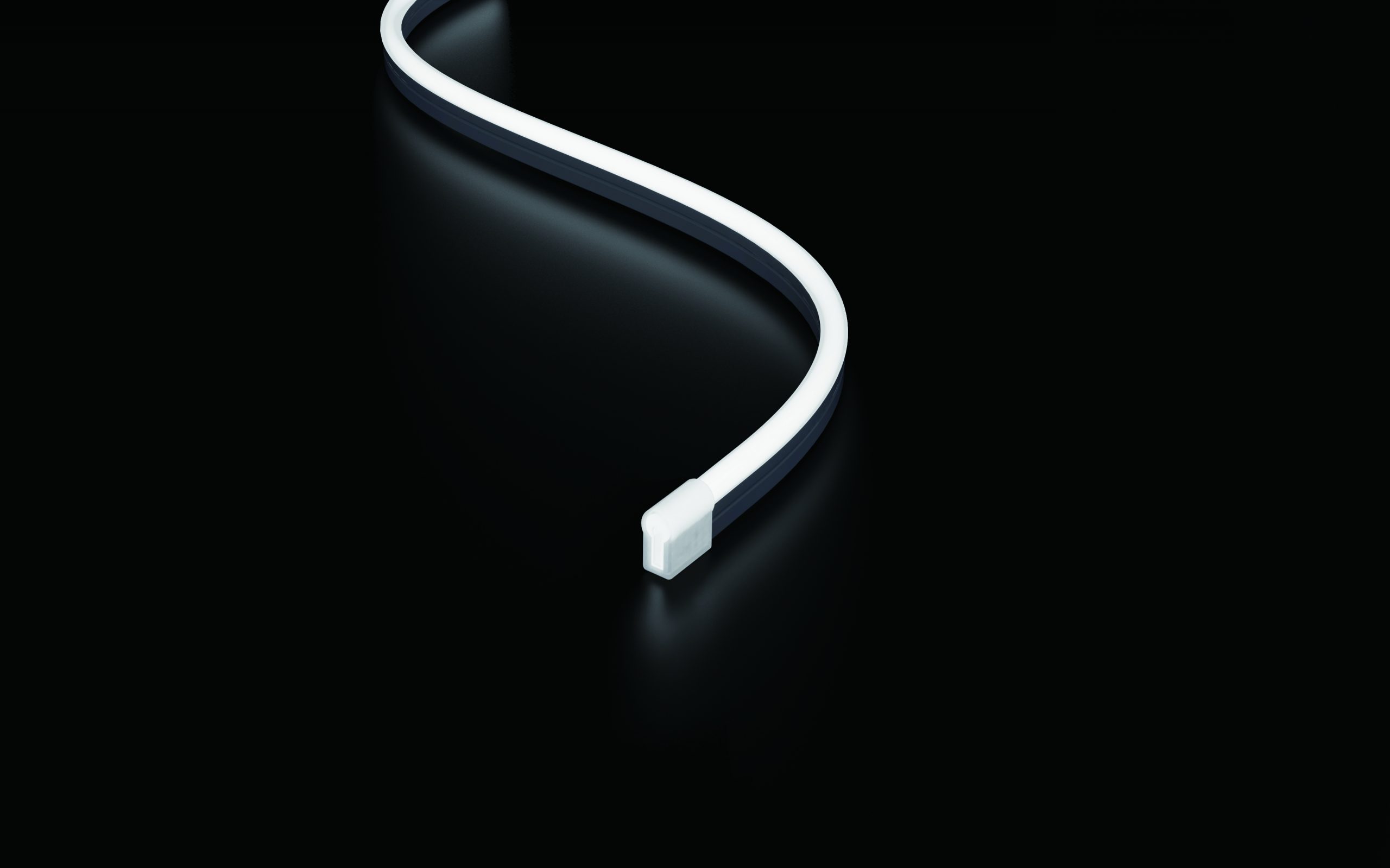

NSR1025
No: NSR1025
- Color options: WN, RGB, RGBW and PIXEL
- Silicone integrated extrusion shaping process, good weather adaptability
- Good flexibility, side bending
- Support 0~1KHz PWM dimming (Pixel do not support PWM dimming and is recommended to use controller SP105E/MR-502)
- Warranty: 5 years indoor, 3 years outdoor
- Customization: multiple spec options, can be customized upon requirements
DataSheet
-
NSR1025NEW View PDF DataSheet

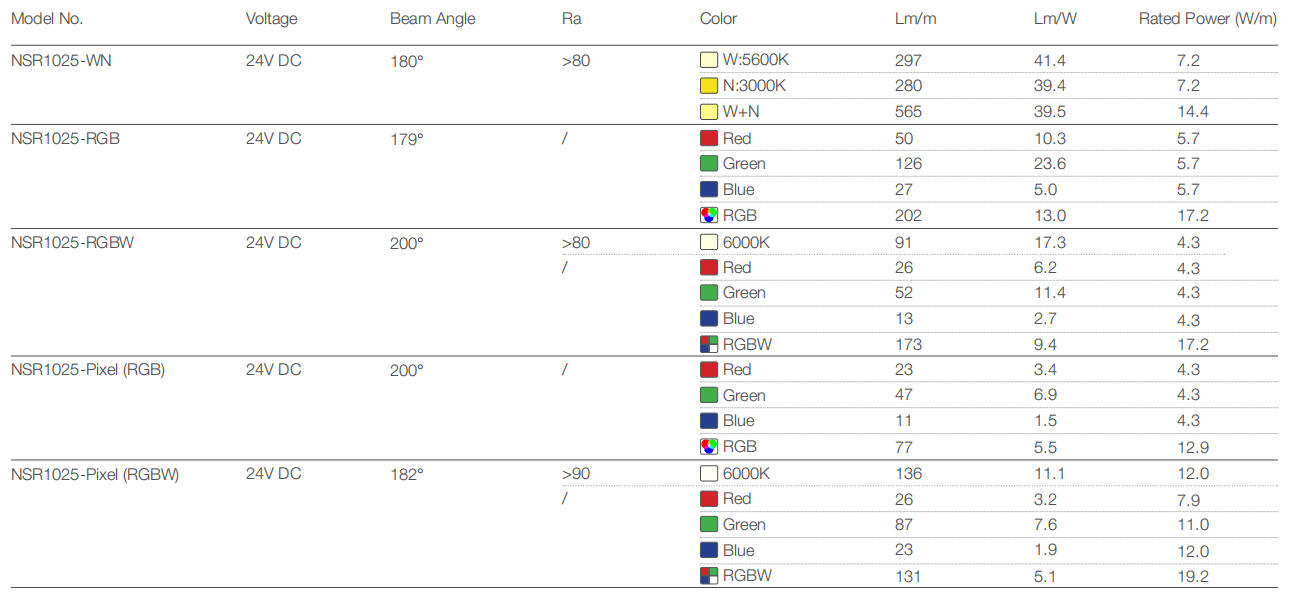

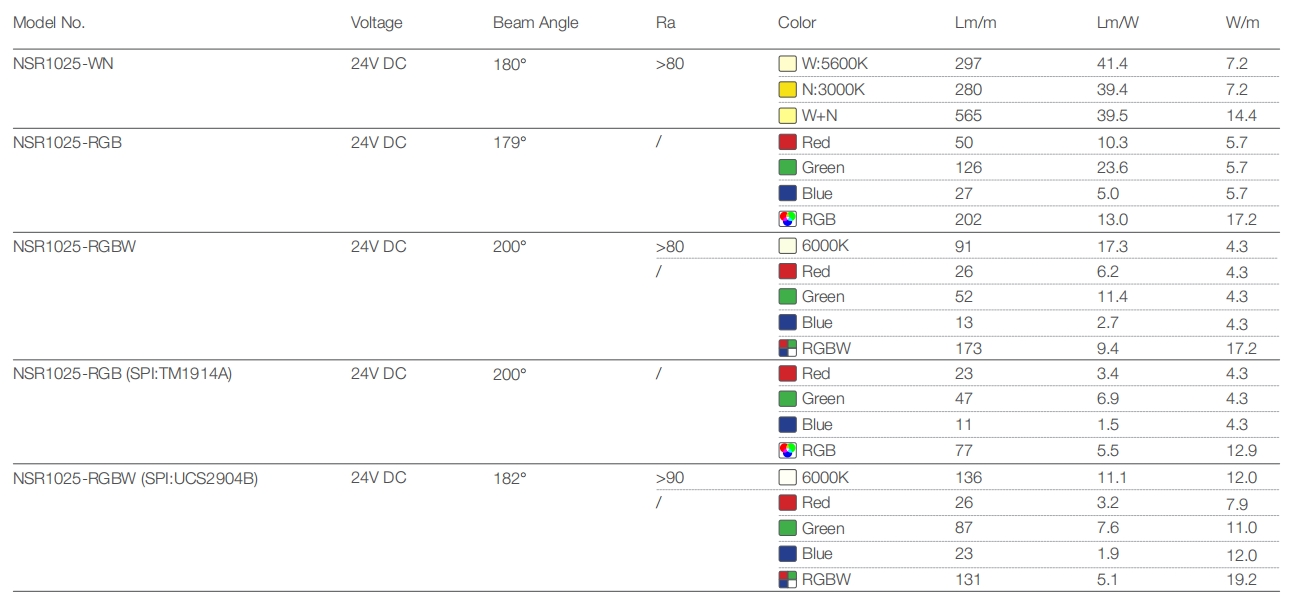

General Parameters NSR1025
| Model No. | Voltage | Beam Angle | Ra | Color | Lm/m | Lm/W | W/m |
| NSR1025-WN | 24V DC | 180° | >80 | W:5600K | 297 | 41.4 | 7.2 |
| N:3000K | 280 | 39.4 | 7.2 | ||||
| W+N | 565 | 39.5 | 14.4 | ||||
| NSR1025-RGB | 24V DC | 179° | / | Red | 50 | 10.3 | 5.7 |
| Green | 126 | 23.6 | 5.7 | ||||
| Blue | 27 | 5.0 | 5.7 | ||||
| RGB | 202 | 13.0 | 17.2 | ||||
| NSR1025-RGBW | 24V DC | 200° | >80 | 6000K | 91 | 17.3 | 4.3 |
| / | Red | 26 | 6.2 | 4.3 | |||
| Green | 52 | 11.4 | 4.3 | ||||
| Blue | 13 | 2.7 | 4.3 | ||||
| RGBW | 173 | 9.4 | 17.2 | ||||
| NSR1025-RGB (SPI:TM1914A) | 24V DC | 200° | / | Red | 23 | 3.4 | 4.3 |
| Green | 47 | 6.9 | 4.3 | ||||
| Blue | 11 | 1.5 | 4.3 | ||||
| RGB | 77 | 5.5 | 12.9 | ||||
| NSR1025-RGBW (SPI:UCS2904B) | 24V DC | 182° | >90 | 6000K | 136 | 11.1 | 12.0 |
| / | Red | 26 | 3.2 | 7.9 | |||
| Green | 87 | 7.6 | 11.0 | ||||
| Blue | 23 | 1.9 | 12.0 | ||||
| RGBW | 131 | 5.1 | 19.2 |
