IP68

24V Multi Color Top-Bend Neon Flex NDF1617

No: NDF1617

Features

Color options: Single color, WN , RGB, RGBW and PIXEL.
Adopt high quality constant current components with stable and reliable performance.
Top bending with good flexibility.
Single color does not support dimming (If using Mean Well ELG/HLG power supply, it supports PWM dimming within 2KHz.
Warranty: 5 years indoor, 3 years outdoor.
Customization: multiple spec options, can be customized upon requirements.

DataSheet

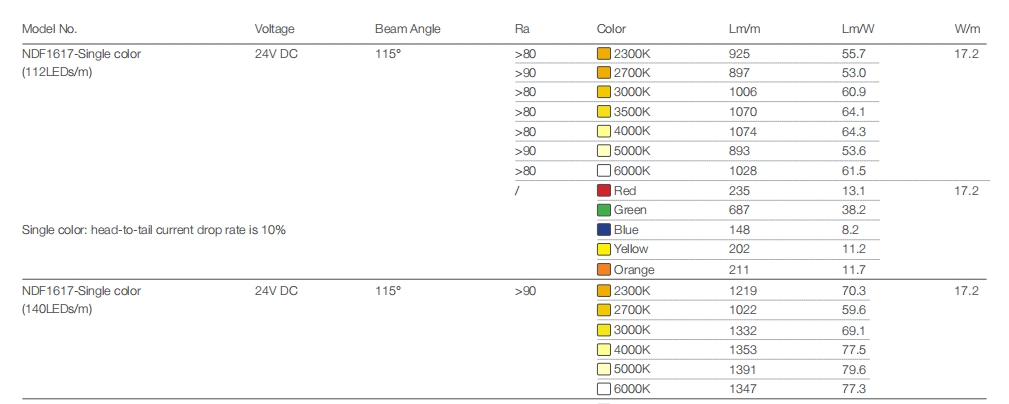

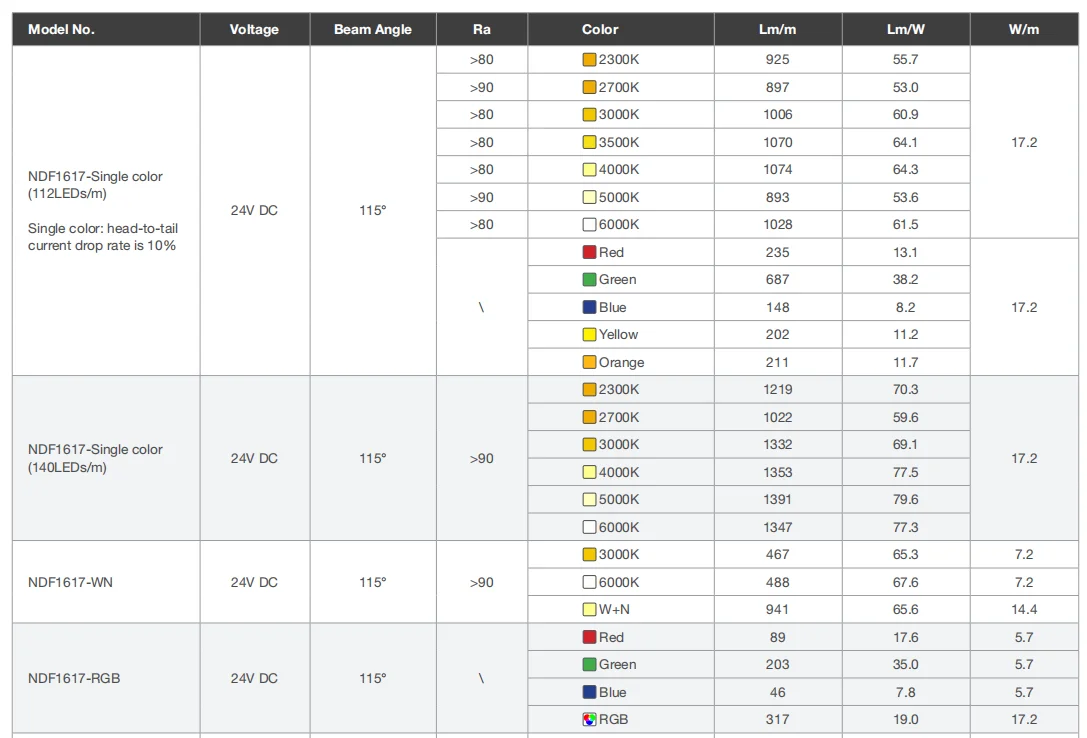

Model No.	Voltage	Beam Angle	Ra	Color	Lm/m	Lm/W	W/m
NDF1617-Single color (112LEDs/m) Single color: head-to-tail current drop rate is 10%	24V DC	115°	>80	2300K	925	55.7	17.2
			>90	2700K	897	53
			>80	3000K	1006	60.9
			>80	3500K	1070	64.1
			>80	4000K	1074	64.3
			>90	5000K	893	53.6
			>80	6000K	1028	61.5
			\	Red	235	13.1	17.2
				Green	687	38.2
				Blue	148	8.2
				Yellow	202	11.2
				Orange	211	11.7
NDF1617-Single color (140LEDs/m)	24V DC	115°	>90	2300K	1219	70.3	17.2
				2700K	1022	59.6
				3000K	1332	69.1
				4000K	1353	77.5
				5000K	1391	79.6
				6000K	1347	77.3
NDF1617-WN	24V DC	115°	>90	3000K	467	65.3	7.2
				6000K	488	67.6	7.2
				W+N	941	65.6	14.4
NDF1617-RGB	24V DC	115°	\	Red	89	17.6	5.7
				Green	203	35	5.7
				Blue	46	7.8	5.7
				RGB	317	19	17.2
