IP65

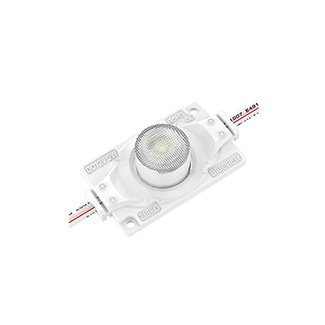

Z18-C
No: Z18-C
- High efficacy 3030 LED
- Injection molding with IP65 water-proof
- Aluminum PCB with excellent heat dissipation
- Special lens with 10*28 deg beam angle
- Cuttable between LEDs
DataSheet
-
Z18-CView PDF DataSheet

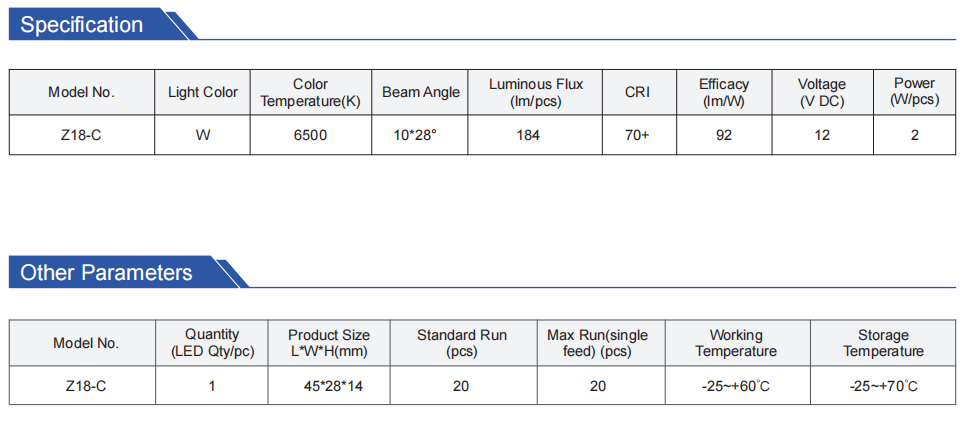

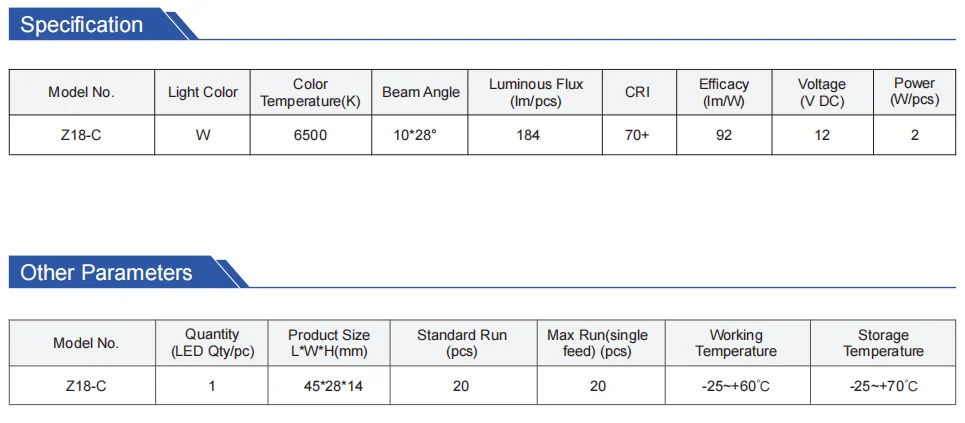

General Parameters Z18-C
| Model No. | Light Color | Color Temperature(K) | Beam Angle | Luminous Flux (lm/pcs) | CRI | Efficacy (lm/W) | Voltage (V DC) | Power (W/pcs) |
| Z18-C | W | 6500 | 10*28° | 184 | 70+ | 92 | 12 | 2 |
Other Parameters
| Model No. | Quantity (LED Qty/pc) |
Product Size L*W*H(mm) |
Standard Run (pcs) |
Max Run(single feed) (pcs) | Working Temperature | Storage Temperature |
| Z18-C | 1 | 45*28*14 | 20 | 20 | -25~+60°C | -25~+70°C |
