IP60

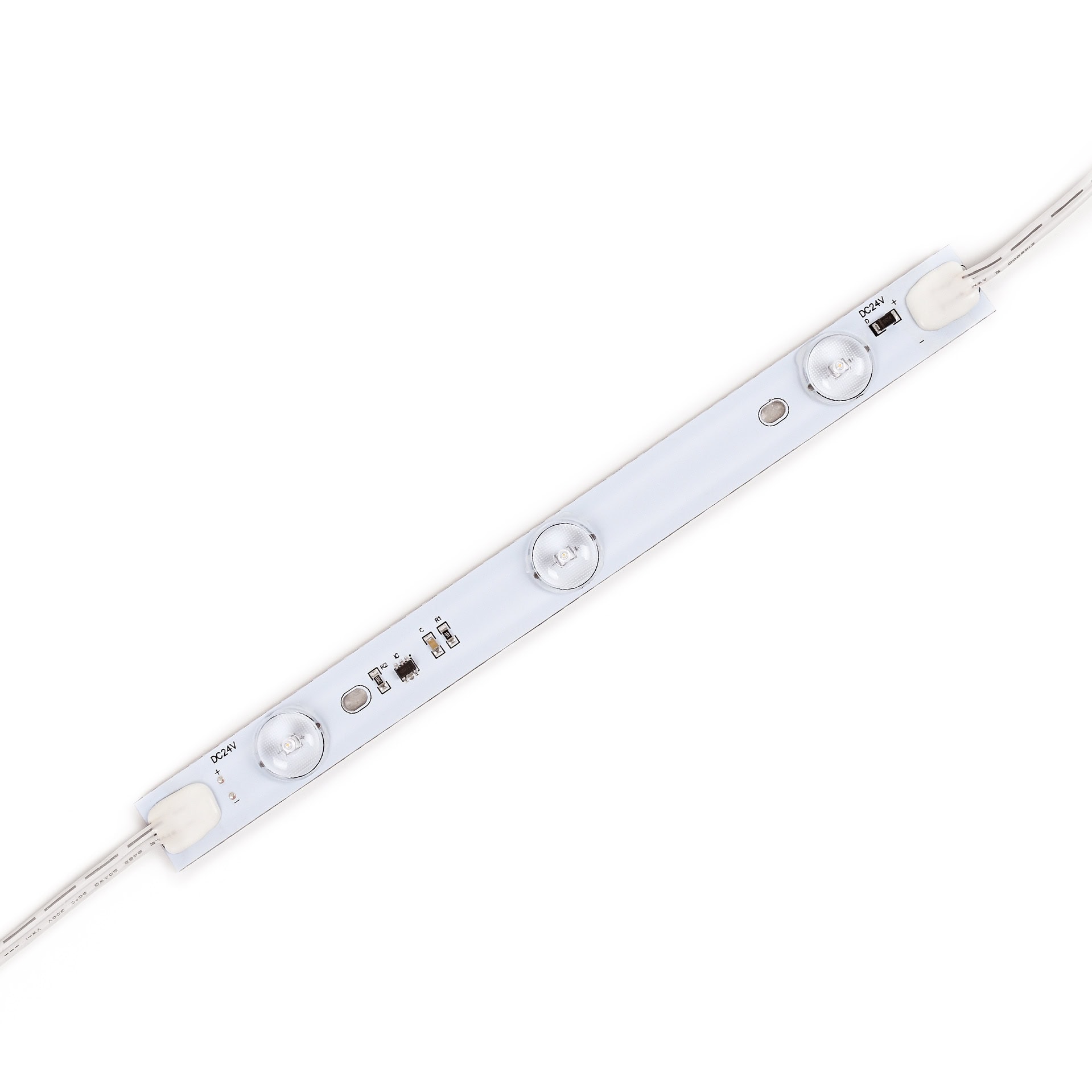

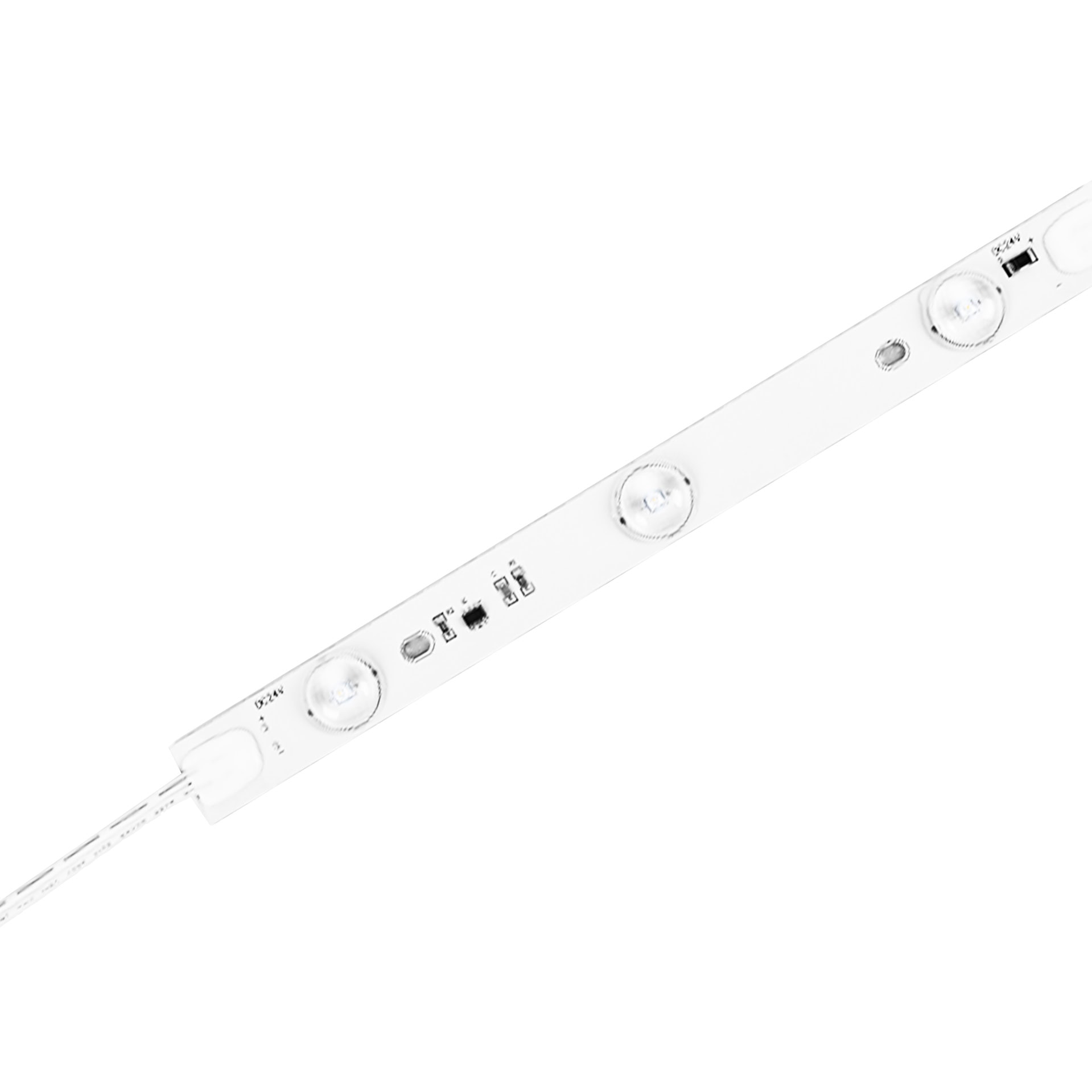

24V Brand LED High Efficiency Rigid Bar YD8 1.0
No: YD8 1.0
~370lm/M
3.2W/m
Ra: ≥80
SMD3030
QTY: 7
Light Efficacy: 116lm/W
Run Length:8mm
20mm(W) / 7.4mm(H)
- Adopt Nichia 3030 SMD LED.
- Secondary optical lens with 160° beam angle
- High efficacy up to 116lm/W
- SA-01 connector, no distinguish female or male, easier for installation
- Aluminum PCB for better heat dissipation
- Specification: 3 LEDs/ 270mm, 4 LEDs/ 360mm, 7 LEDs/630mm
DataSheet
-
YD8 1.0 oldView PDF DataSheet

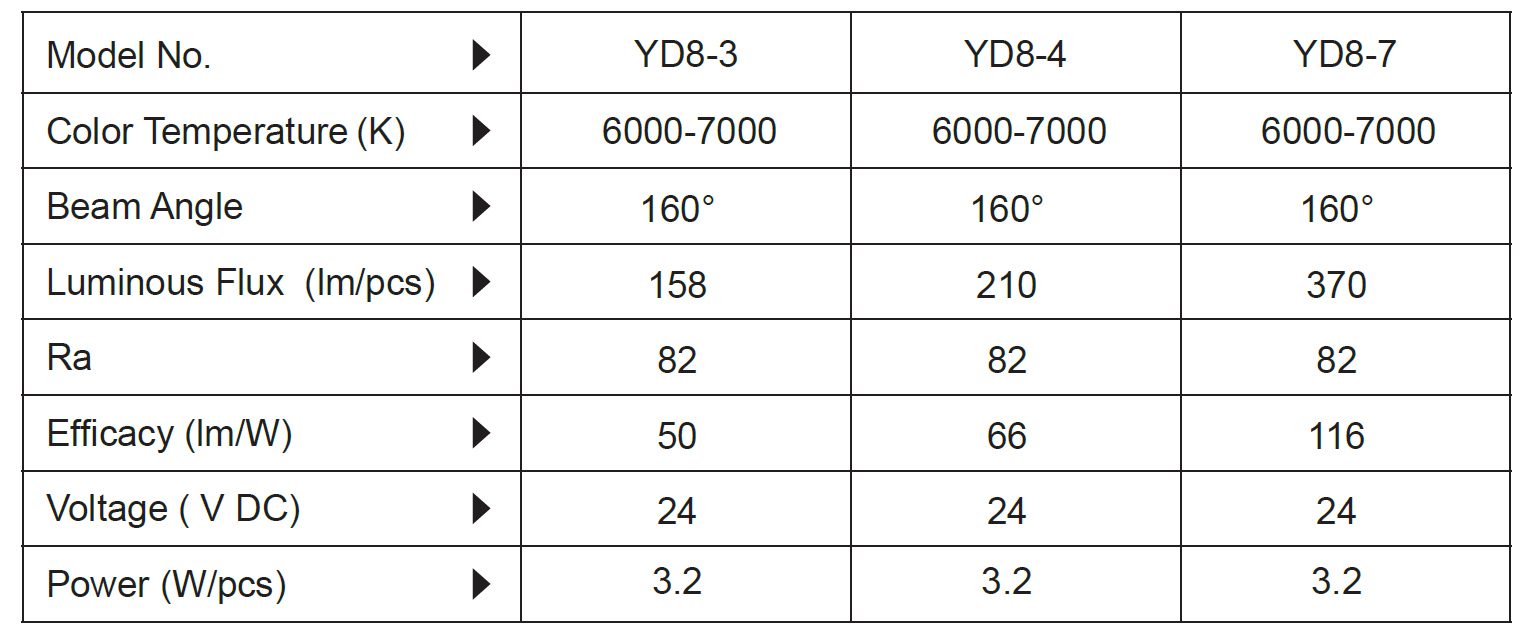

General Parameters 24V Brand LED High Efficiency Rigid Bar YD8 1.0
| Model No. | YD8-3 | YD8-4 | YD8-7 |
| Color Temperature (K) | 6000-7000 | 6000-7000 | 6000-7000 |
| Beam Angle | 160° | 160° | 160° |
| Luminous Flux (lm/pcs) | 158 | 210 | 370 |
| Ra | 82 | 82 | 82 |
| Efficacy (lm/W) | 50 | 66 | 116 |
| Voltage (V DC) | 24 | 24 | 24 |
| Power (W/pcs) | 3.2 | 3.2 | 3.2 |
