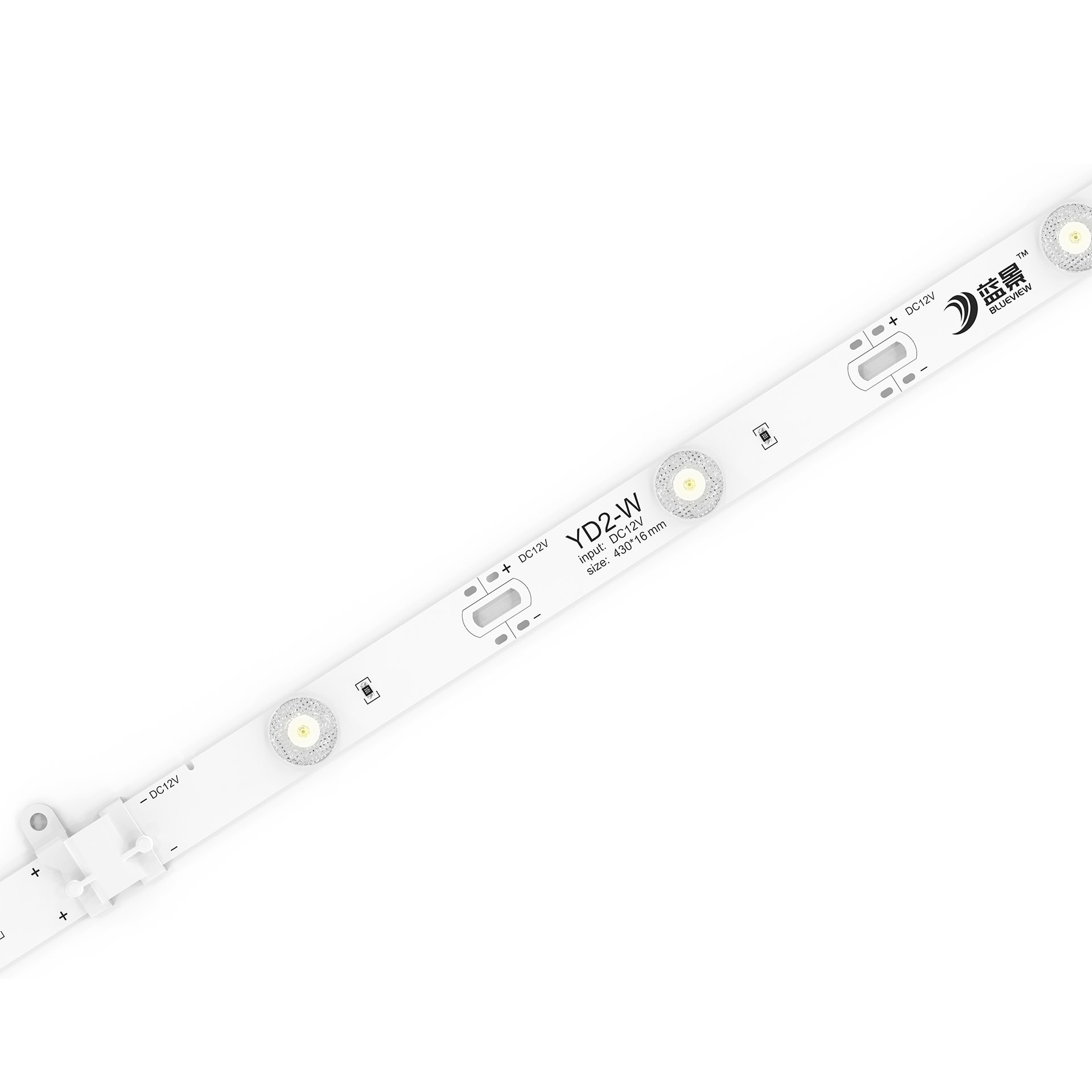

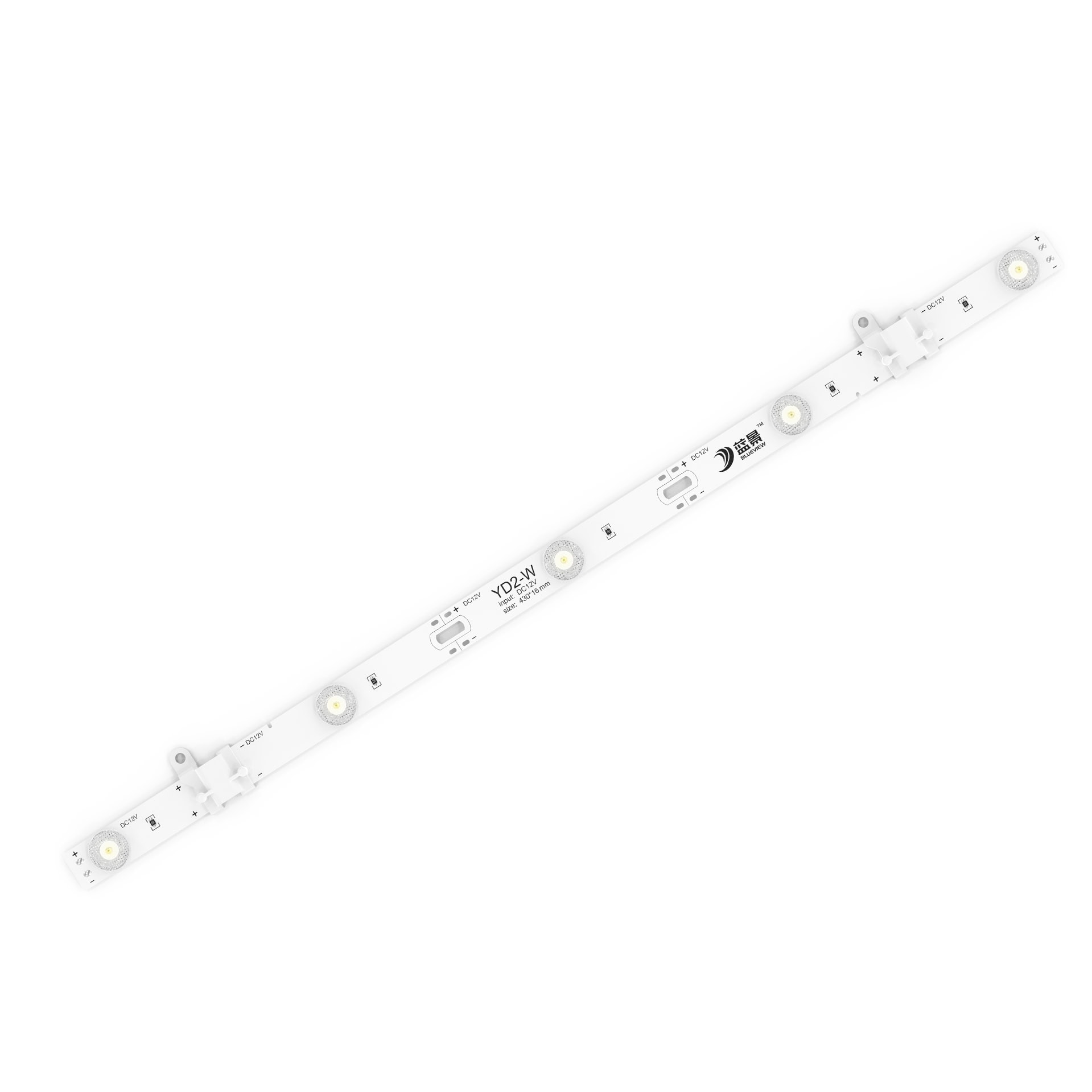

YD2-W
No: YD2-W
- Adopt high quality 2835 LED
- High efficacy up to 90lm/W
- Self-designed secondary lens with 170°beam angle for uniform light
- Aluminum PCB for direct and quick heat dissipation
- Curtain style for easy mounting
- Two lengths for option
DataSheet
-
YD2-WView PDF DataSheet

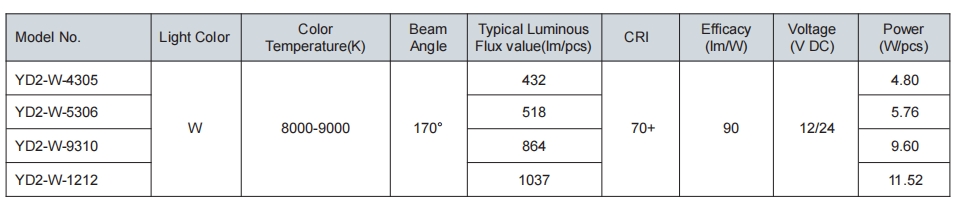

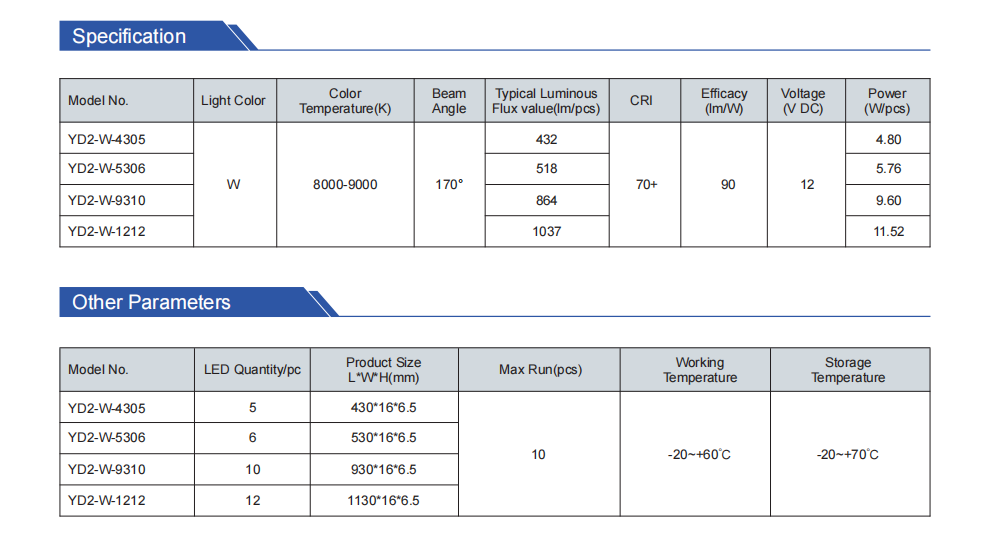

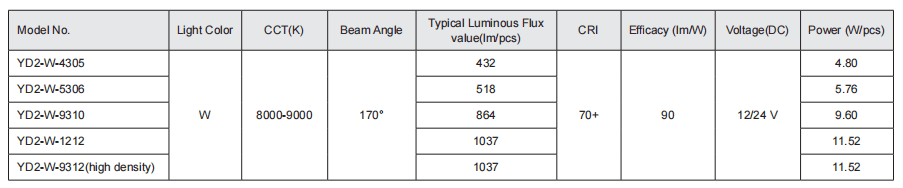

General Parameters YD2-W
| Model No. | Light Color | CCT(K) | Beam Angle | Typical Luminous Flux value(lm/pcs) | CRI | Efficacy (lm/W) | Voltage(DC) | Power (W/pcs) |
| YD2-W-4305 | W | 8000-9000 | 170° | 432 | 70+ | 90 | 12/24 V | 4.80 |
| YD2-W-5306 | 518 | 5.76 | ||||||
| YD2-W-9310 | 864 | 9.60 | ||||||
| YD2-W-1212 | 1037 | 11.52 | ||||||
| YD2-W-9312(high density) | 1037 | 11.52 |
