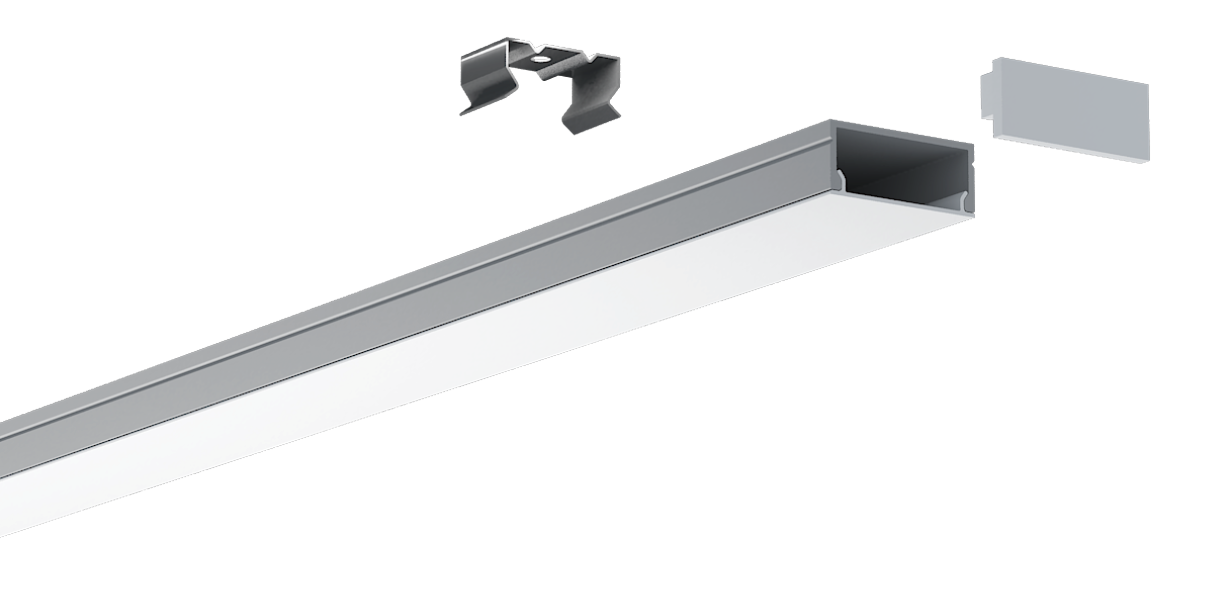

VERTICAL SURFACE MOUNTED SERIES SL251122
No: VERTICAL SURFACE MOUNTED SERIES SL251122
- Installation: Verical Surface Mounted
- Length Available: 1-3m
- Profifile Color: Silver, Black Anodized, White Powder Coating
- Lens: Opal, Diffuser, Clear
- Input Cable: Endcaps, Profifile Bottom, Profifile Sides
- Quick Female/Male Connectors Input cable & Junction Box available
DataSheet
-
SL251122View PDF DataSheet

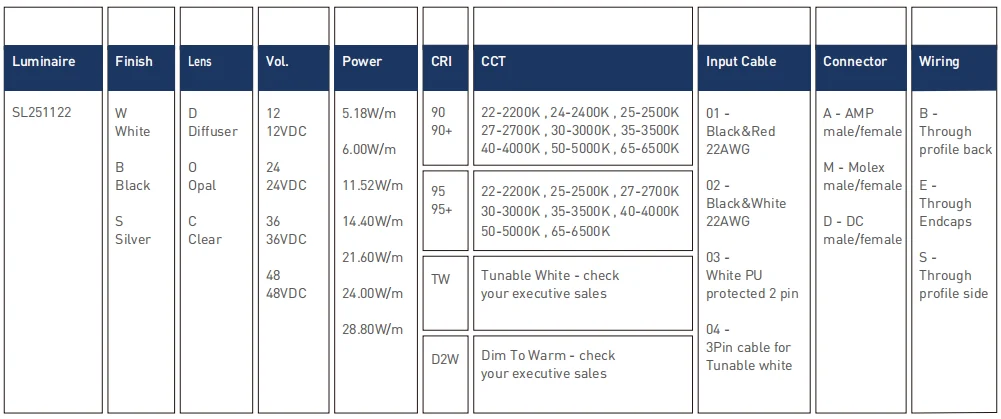

General Parameters VERTICAL SURFACE MOUNTED SERIES SL251122
| Luminaire | Finish | Lens | Vol. | Power | CRI | CCT | Input Cable | Connector | Wiring |
| SL251122 | W White
B Black
S |
D Diffuser
O Opal
C |
12 12VDC
24 24VDC
36
48 |
5.18W/m
6.00W/m
11.52W/m
14.40W/m
21.60W/m
24.00W/m
28.80W/m |
90
90+
|
22-2200K, 24-2400K, 25-2500K,
27-2700K, 30-3000K, 35-3500K, 40-4000K, 50-5000K, 65-6500K |
01 –
Black&Red 22AWG
02 – Black&White 22AWG
03 – White PU protected 2 pin
04 – 3Pin cable for Tunable white |
A-AMP
male/female
M-Molex male/female
D-DC male/female |
B – Through
profile back
E – Through Endcaps
S – Through profile side
|
| 95
95+ |
22-2200K, 25-2500K, 27-2700K,
30-3000K, 35-3500K, 40-4000K, 50-5000K, 65-6500K |
||||||||
| TW | Tunable White-check
your executive sales |
||||||||
| D2W | Dim To Warm- check
your executive sales |
