IP65
STL-H
No: STL-H
- Self designed lens with 170° beam angle for uniform light
- High efficacy up to 160lm/W
- Fully integrated glue filling process, beautiful appearance
- Single module cuttable
- Dimming is not supported. (If using Mean Well ELG/HLG power supply, it supports PWM dimming within 2KHz)
DataSheet
-
STL-HView PDF DataSheet

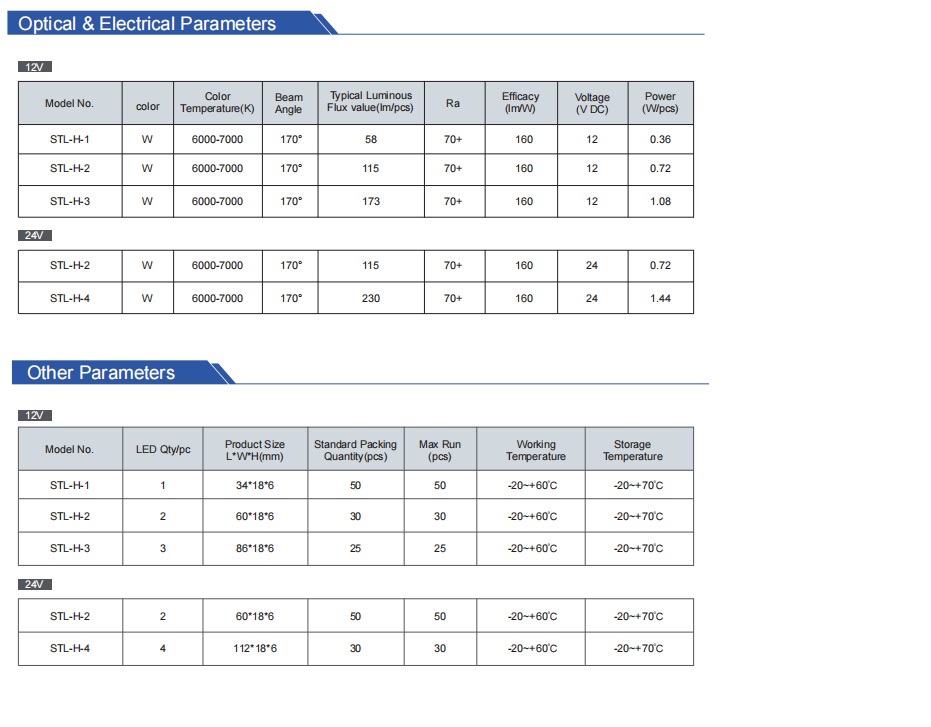

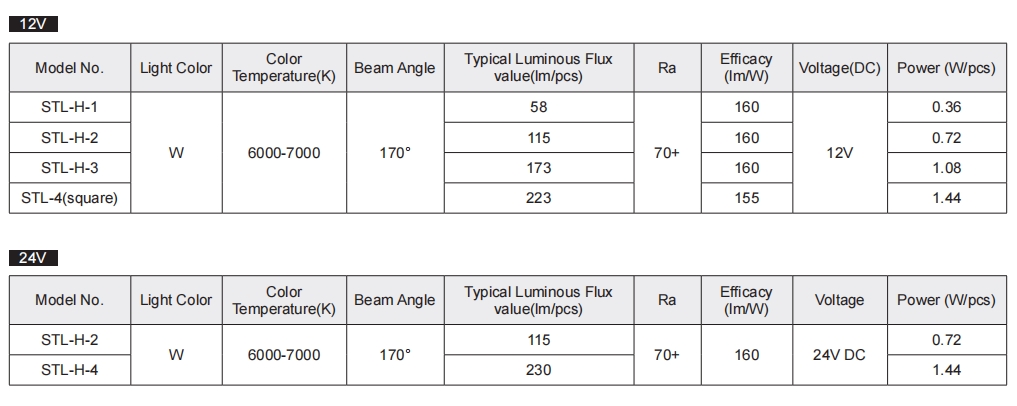

General Parameters STL-H
| Model No. | Light Color | Color Temperature(K) | Beam Angle | Typical Luminous Flux value(lm/pcs) | Ra | Efficacy (lm/W) | Voltage(DC) | Power (W/pcs) |
| STL-H-1 | W | 6000-7000 | 170° | 58 | 70+ | 160 | 12V | 0.36 |
| STL-H-2 | 115 | 160 | 0.72 | |||||
| STL-H-3 | 173 | 160 | 1.08 | |||||
| STL-H-4(square) | 223 | 155 | 1.44 |
| Model No. | Light Color | Color Temperature(K) | Beam Angle | Typical Luminous Flux value(lm/pcs) | Ra | Efficacy (lm/W) | Voltage | Power (W/pcs) |
| STL-H-2 | W | 6000-7000 | 170° | 115 | 70+ | 160 | 24V DC | 0.72 |
| STL-H-4 | 230 | 1.44 |
