IP68

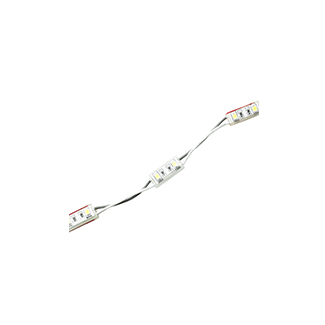

SS208
No: SS208
- Tiny 2835 LED, small and delicate in appearance
- Fully integrated glue filling process ,IP68, excellent weather resistance
- Single module cuttable
DataSheet
-
SS208View PDF DataSheet

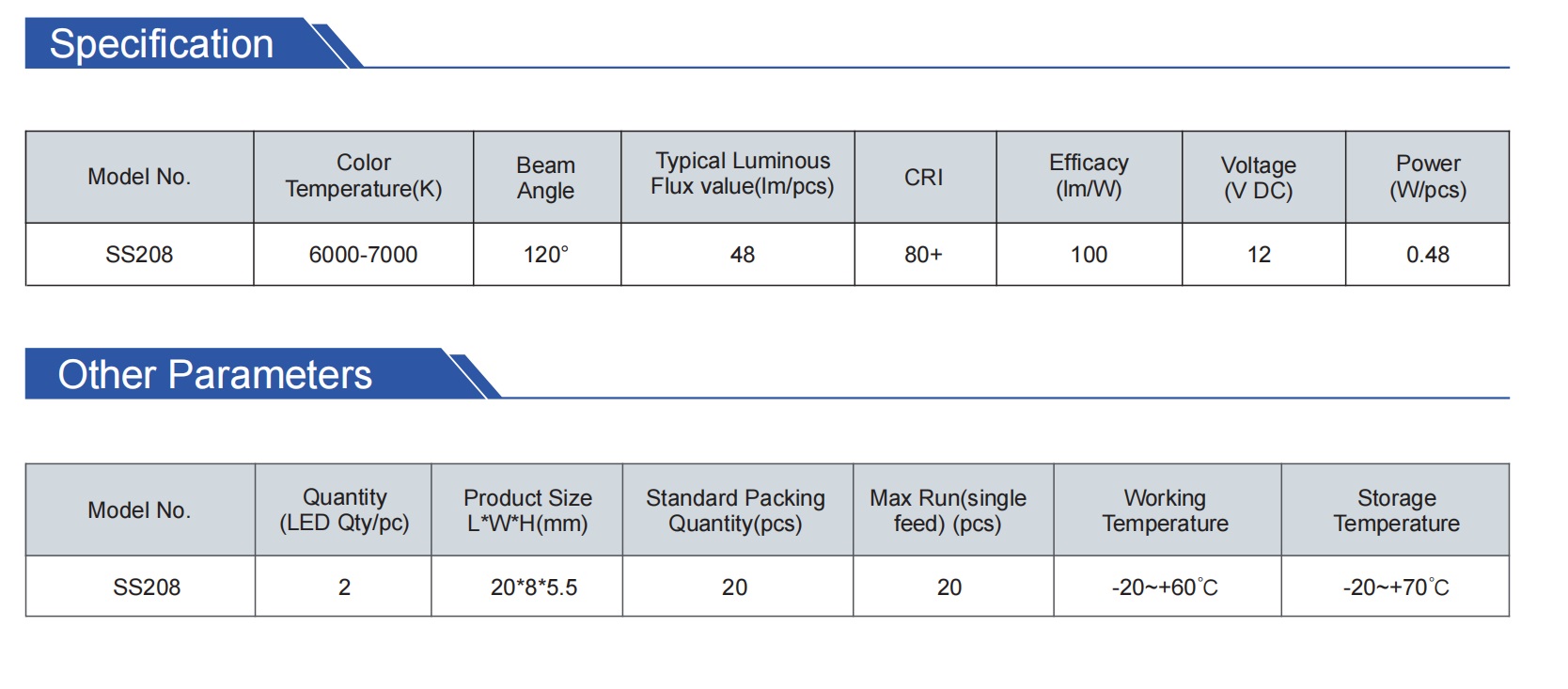

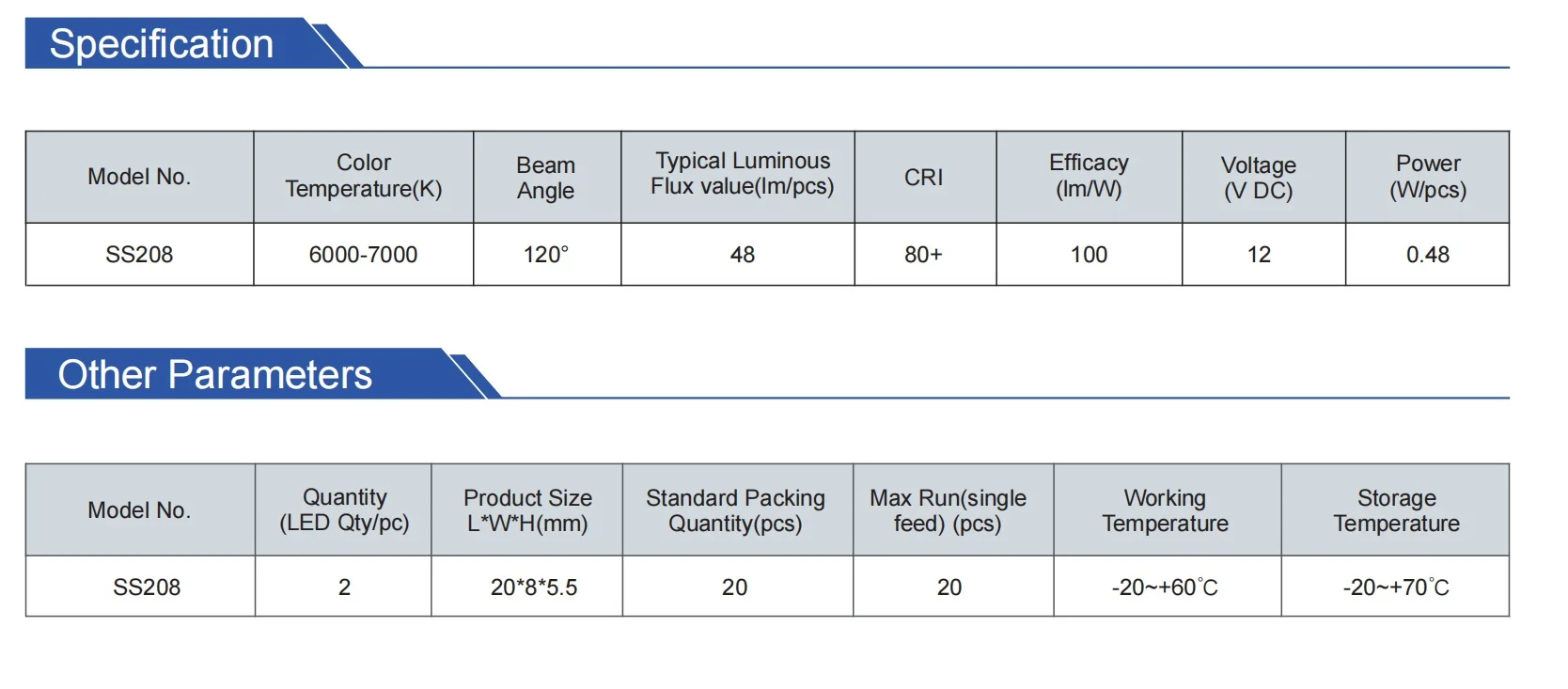

General Parameters SS208
| Model No. | Color Temperature(K) | Beam Angle | Typical Luminous Flux value(lm/pcs) | CRI | Efficacy (lm/W) | Voltage (V DC) | Power (W/pcs) |
| SS208 | 6000-7000 | 120° | 48 | 80+ | 100 | 12 | 0.48 |
Other Parameters
| Model No. | Quantity (LED Qty/pc) |
Product Size L*W*H(mm) |
Standard Packing Quantity(pcs) |
Max Run(single feed) (pcs) |
Working Temperature |
Storage Temperature |
| SS208 | 2 | 20*8*5.5 | 20 | 20 | -20~+60°C | -20~+70°C |
