IP68
SS10

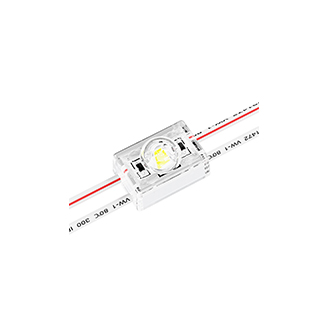

No: SS10
- Adopt McAdam 3 step LED,good color consistency
- Tiny 2835 LED, ideal for mini letters and light box
- High Rg,Rf value, wide CCT range from 2000-12000K
- Uniform light & stable performance
- Fully integrated glue filling process ,IP68, excellent weather resistance
- Single module cuttable
- Integrated diffuse reflection optical lens to achieve wide beam angle 150°
DataSheet
-
1629355117-SS10 Spec.View PDF DataSheet

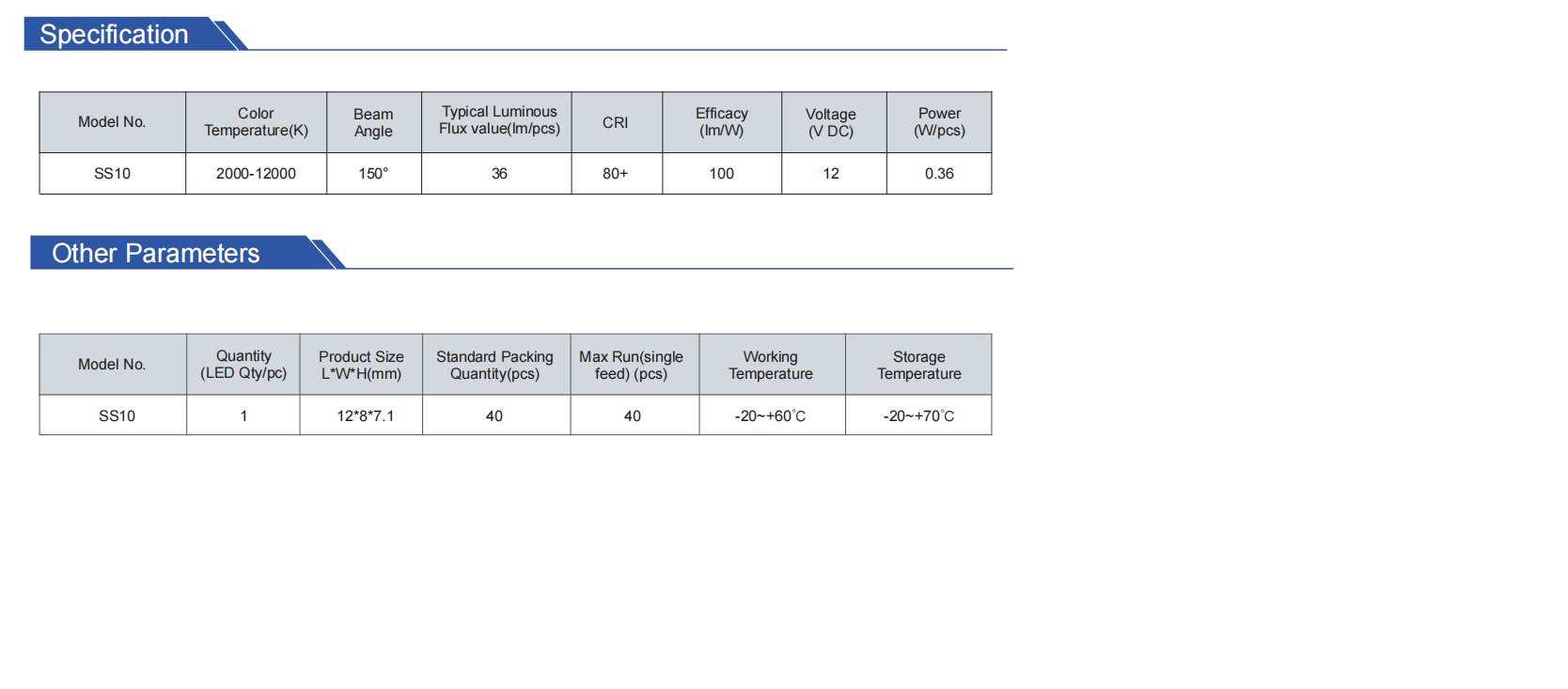

General Parameters SS10
| Model No. | Color Temperature(K) | Beam Angle | Typical Luminous Flux value(lm/pcs) | CRI | Efficacy (lm/W) | Voltage (V DC) | Power (W/pcs) |
| SS10 | 2000-12000 | 150° | 36 | 80+ | 100 | 12 | 0.36 |
Other Parameters
| Model No. | Quantity (LED Qty/pc) |
Product Size L*W*H(mm) |
Standard Packing Quantity(pcs) |
Max Run(single feed) (pcs) |
Working Temperature |
Storage Temperature |
| SS10 | 1 | 12*8*7.1 | 40 | 40 | -20~+60°C | -20~+70°C |
