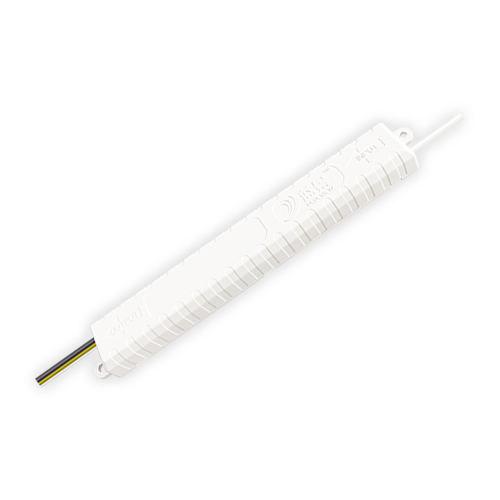

SMART CONSTANT CURRENT DIMMING POWER SUPPLY-BV-CCXXD
No: SMART CONSTANT CURRENT DIMMING POWER SUPPLY-BV-CCXXD
- High-brightness digital dimming technology, showing perfect visual experience
- Innovative thermal management technology, intelligent protection of power supply life
- Power supply dimming range 1%-100%
- Mobile APP dimming control
- Adopt environmental safety materials
DataSheet
-
BV-CCXXD（AM8-D smart power supply）View PDF DataSheet

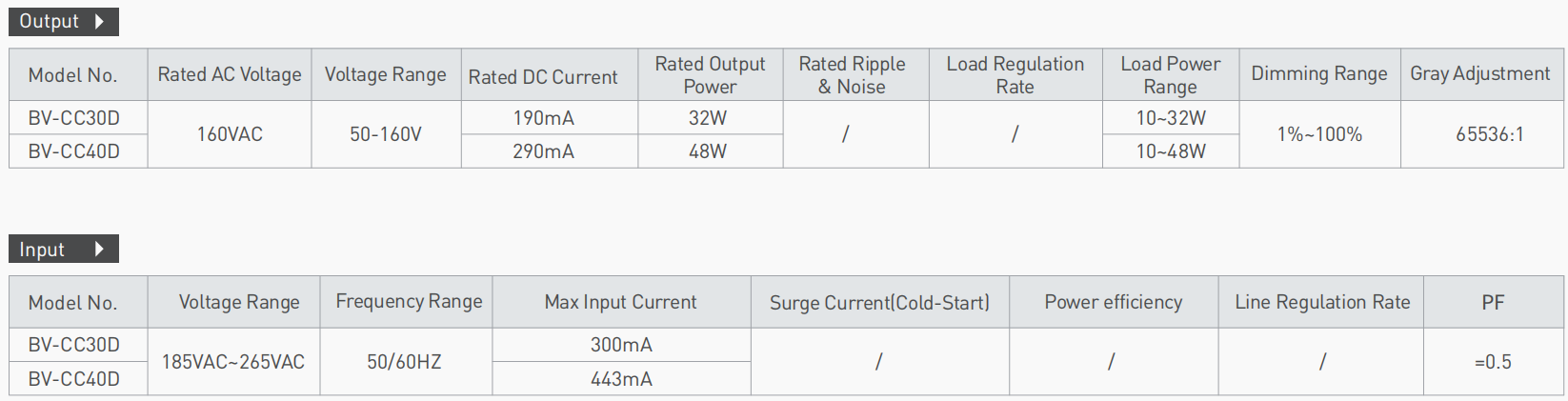

General Parameters SMART CONSTANT CURRENT DIMMING POWER SUPPLY-BV-CCXXD
Output
| Model No. | Rated AC Voltage | Voltage Range | Rated DC Current | Rated Output Power | Rated Ripple & Noise | Load Regulation Rate | Load Power Range | Dimming Range | Gray Adjustment |
| BV-CC30D | 160VAC | 50-160V | 190mA | 32W | / | / | 10~32W | 1%~100% | 65536:1 |
| BV-CC40D | 290mA | 48W | 10~48W |
Input
| Model No. | Voltage Range | Frequency Range | Max Input Current | Surge Current(Cold-Start) | Power efficiency | Line Regulation Rate | PF |
| BV-CC30D | 185VAC~265VAC | 50/60HZ | 300mA | / | / | / | =0.5 |
| BV-CC40D | 443mA |
