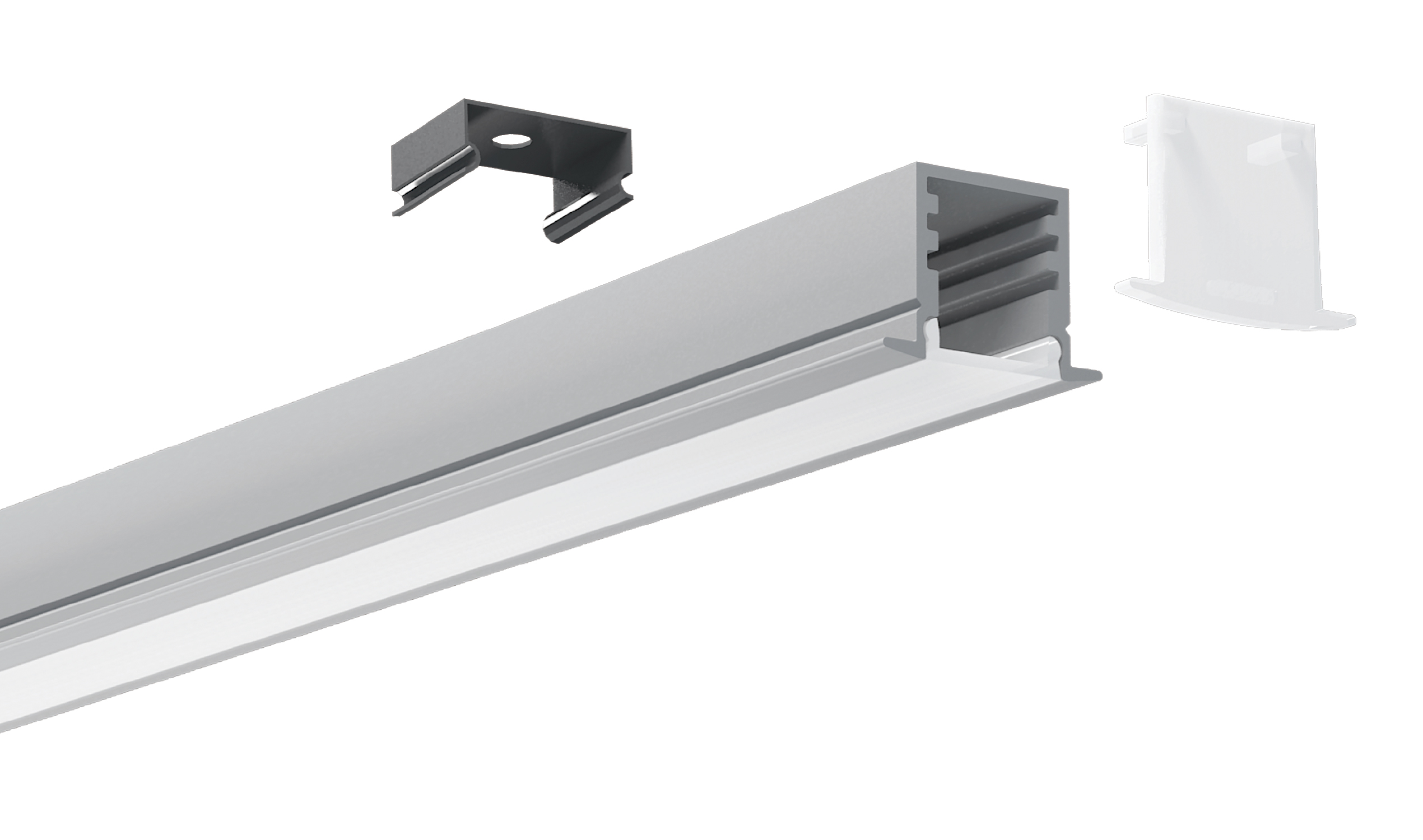

SL2014K12 MINI SERIES
No: SL2014K12 MINI SERIES
- Installation: Trimed Recessed
- Length Available: 1-3m
- Profifile Color: Silver, Black Anodized, White Powder Coating
- Lens: Opal, Diffuser, Clear
- Input Cable: Endcaps, Profifile Bottom, Profifile Sides
- Quick Female/Male Connectors Input cable & Junction Box available
DataSheet
-
1671587390-SL2014K12View PDF DataSheet

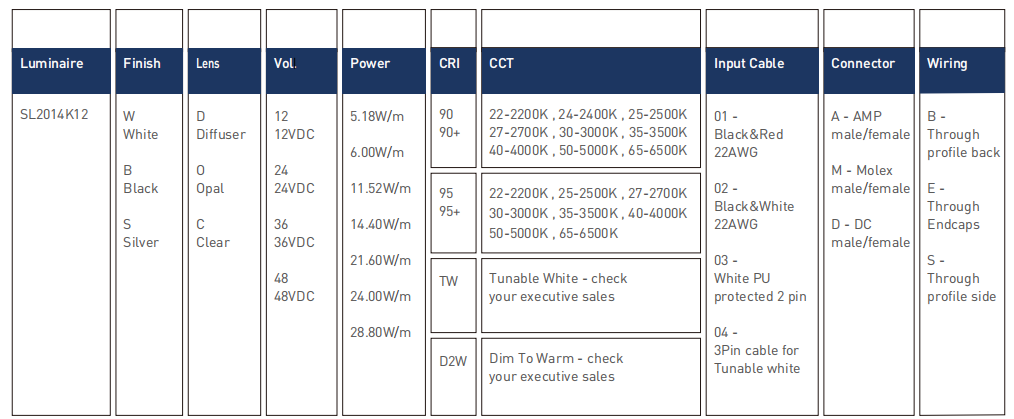

General Parameters SL2014K12 MINI SERIES
| Luminaire | Finish | Lens | Vol. | Power | CRI | CCT | Input Cable | Connector | Wiring |
| SL2014K12 | W White
B
S |
D Diffuser
O
C |
12 12VDC
24
36
48 |
5.18W/m
6.00W/m
11.52W/m
14.40W/m
21.60W/m
24.00W/m
28.80W/m |
90
90+
|
22-2200K,24-2400K,25-2500K，
27-2700K,30-3000K,35-3500K， 40-4000K,50-5000K,65-6500K |
01 –
Black&Red 22AWG
02 – Black&White 22AWG
03 – White PU protected 2 pin
04 – 3Pin cable for Tunable white |
A-AMP male/female
M-Molex male/female
D-DC male/female |
B – Through profile back
E – Through Endcaps
S – Through profile side
|
| 95
95+ |
22-2200K,25-2500K,27-2700K,
30-3000K,35-3500K,40-4000K, 50-5000K,65-6500K |
||||||||
| TW | Tunable White-check your executive sales | ||||||||
| D2W | Dim To Warm- check your executive sales |
