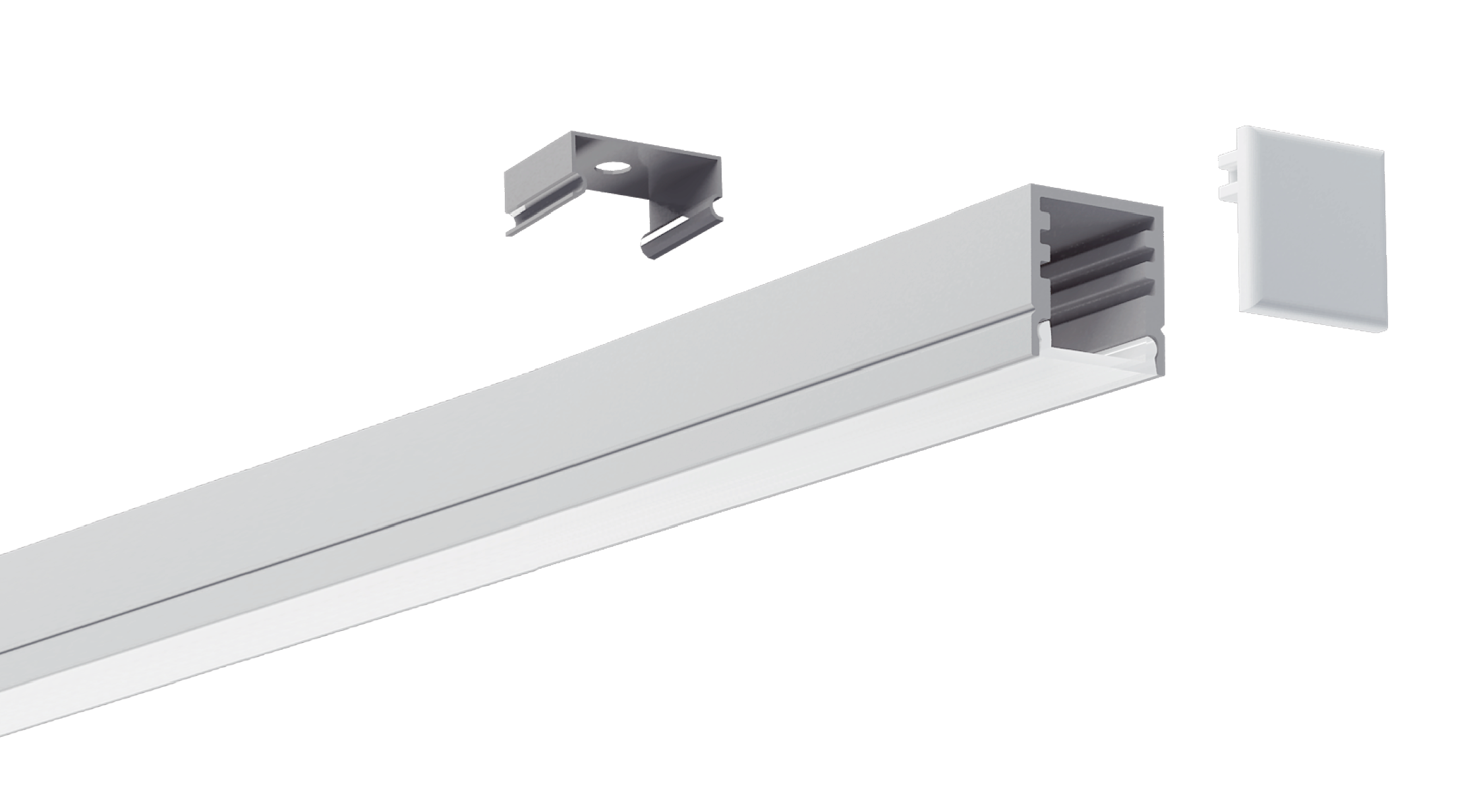

SL1415K12 MINI SERIES
No: SL1415K12 MINI SERIES
- Installation: Surface Mounted
- Length Available: 1-3m
- Profile Color: Silver, Black Anodized, White Powder Coating
- Lens: Opal, Diffuser, Clear
- Input Cable: Endcaps, Profile Bottom, Profile Sides
- Quick Female/Male Connectors Input cable & Junction Box available
DataSheet
-
SL1415K12View PDF DataSheet

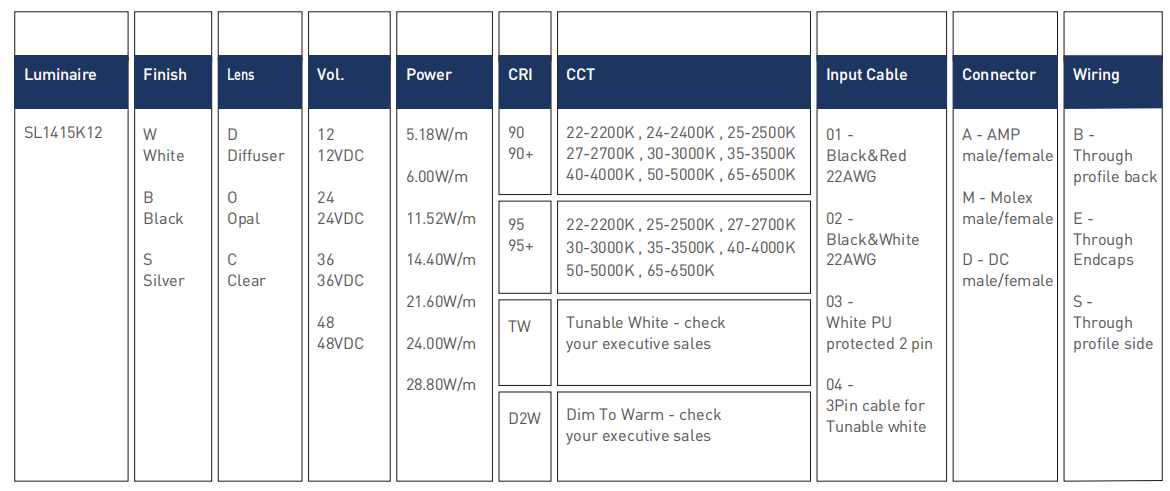

General Parameters SL1415K12 MINI SERIES
| Luminaire | Finish | Lens | Vol. | Power | CRI | CCT | Input Cable | Connector | Wiring |
| SL1415K12 | W White |
D Diffuser |
12 12VDC |
5.18W/m | 90 90+ |
22-2200K,24-2400K,25-2500K，27-2700K,30-3000K,35-3500K，40-4000K,50-5000K,65-6500K | 01 –
Black&Red |
A – AMP
male/female |
B – Through
profile back |
| B Black |
O Opal |
24 24VDC |
6.00W/m | M – Molex
male/female |
E – Through
Endcaps |
||||
| S Silver |
C Clear |
36 36VDC |
11.52W/m | 95 95+ |
22-2200K,25-2500K,27-2700K,30-3000K, 35-3500K，40-4000K, 50-5000K, 65-6500K | 02 –
Black&White |
D – DC
male/female |
S – Through
profile side |
|
| 36VDC | 14.40W/m | ||||||||
| 48 48VDC |
21.60W/m | TW | Tunable White –
check your executive sales |
03 –
White PU protected 2 pin |
|||||
| 24.00W/m | |||||||||
| 28.80W/m | D2W | Dim To Warm –
check your executive sales |
04 –
3Pin cable for Tunable white |
