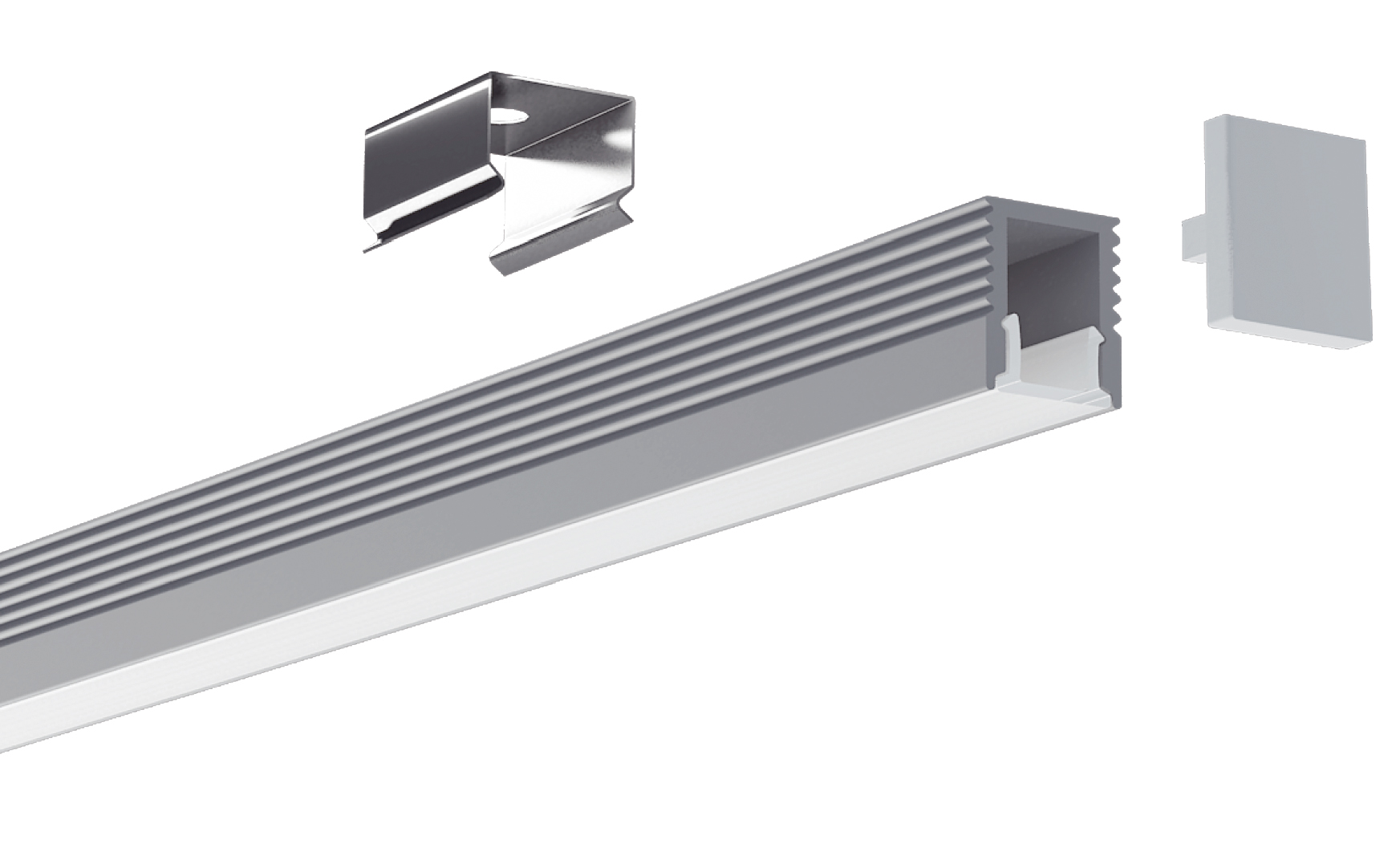

SL080905 MINI SERIES
No: SL080905 MINI SERIES
- Installation: Surface Mounted
- Length Available: 1-3m
- Profifile Color: Silver, Black Anodized, White Powder Coating
- Lens: Opal, Diffuser, Clear
- Input Cable: Endcaps, Profifile Bottom, Profifile Sides
- Quick Female/Male Connectors Input cable & Junction Box available
DataSheet
-
SL080905View PDF DataSheet

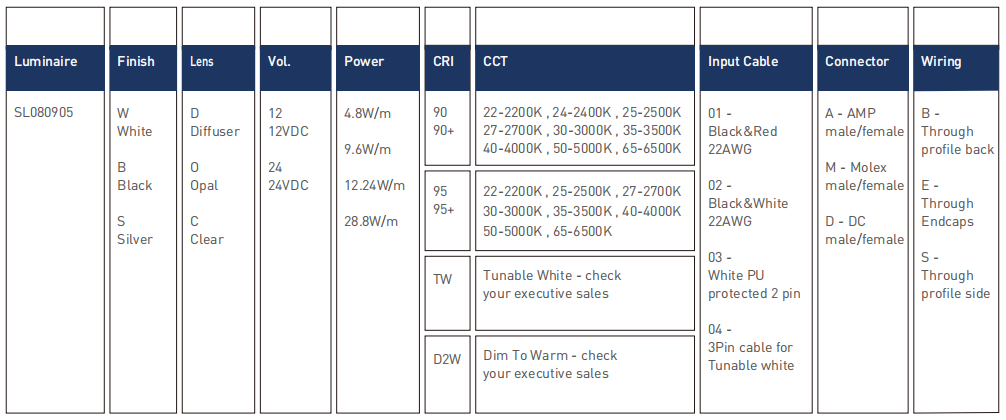

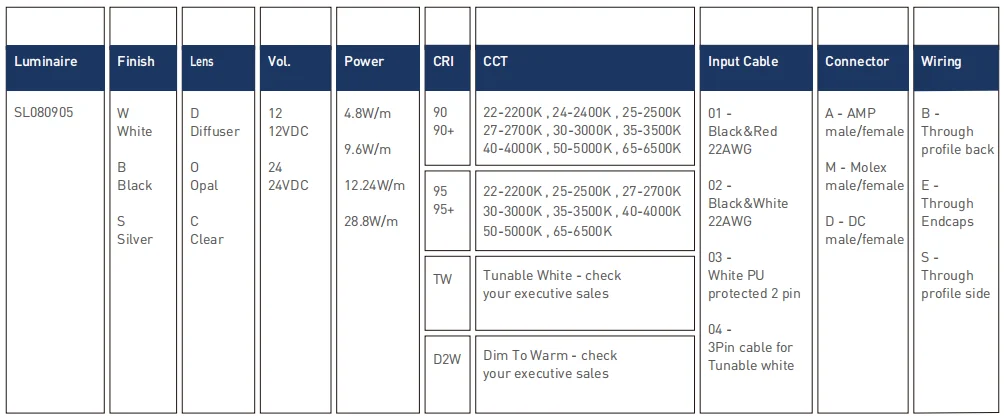

General Parameters SL080905 MINI SERIES
| Luminaire | Finish | Lens | Vol. | Power | CRI | CCT | Input Cable | Connector | Wiring |
| SL080905 | W White
B
S |
D Diffuser
O
C |
12 12VDC
24 |
4.8W/m
9.6W/m
12.24W/m
28.8W/m |
90
90+
|
22-2200K, 24-2400K, 25-2500K,
27-2700K, 30-3000K, 35-3500K， 40-4000K, 50-5000K, 65-6500K |
01 –
Black&Red 22AWG
02 – Black&White 22AWG
03 – White PU protected 2 pin
04 – 3Pin cable for Tunable white |
A-AMP
male/female
M-Molex male/female
D-DC male/female |
B – Through
profile back
E – Through Endcaps
S – Through profile side
|
| 95
95+ |
22-2200K, 25-2500K, 27-2700K,
30-3000K, 35-3500K, 40-4000K, 50-5000K, 65-6500K |
||||||||
| TW | Tunable White-check your executive sales | ||||||||
| D2W | Dim To Warm- check your executive sales |
