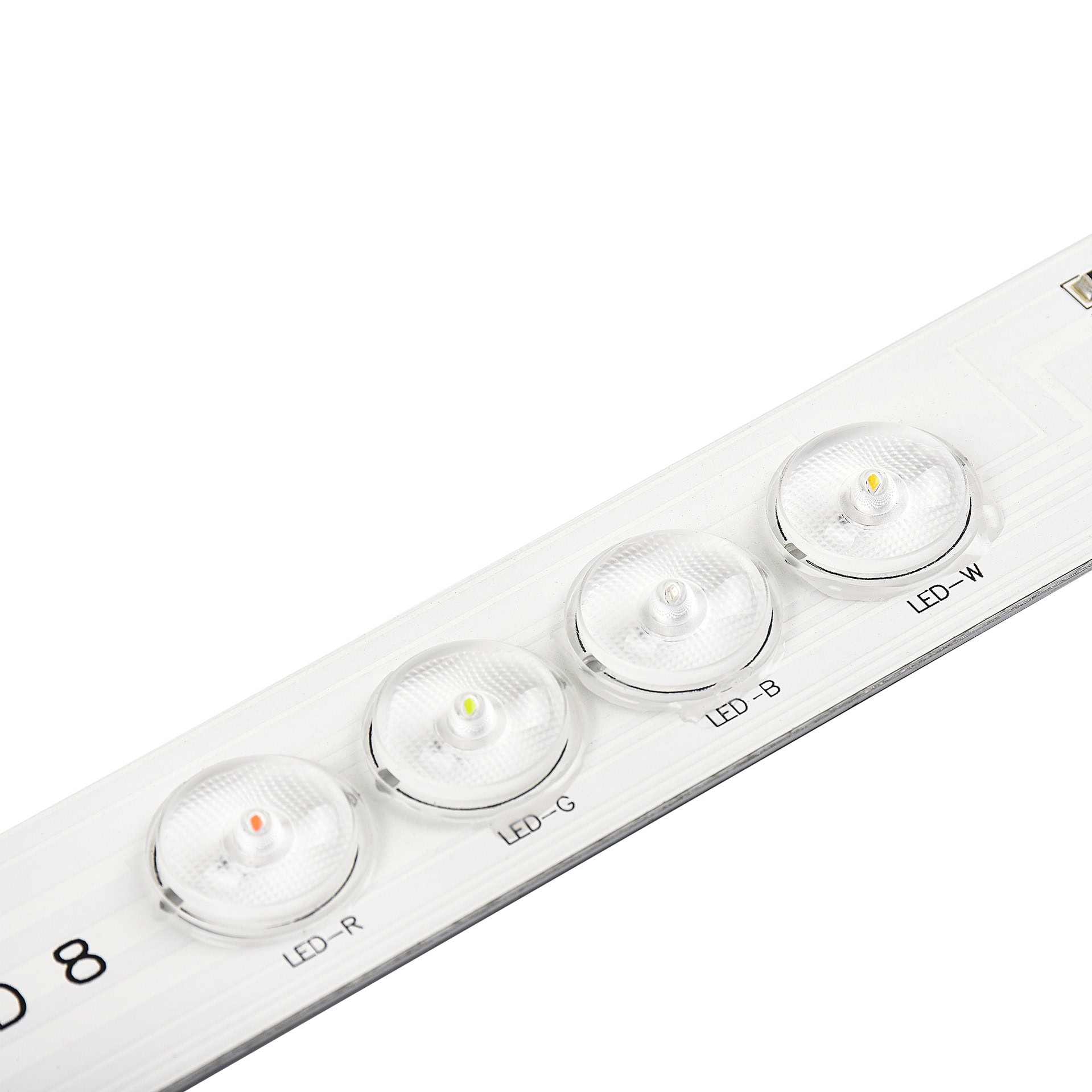

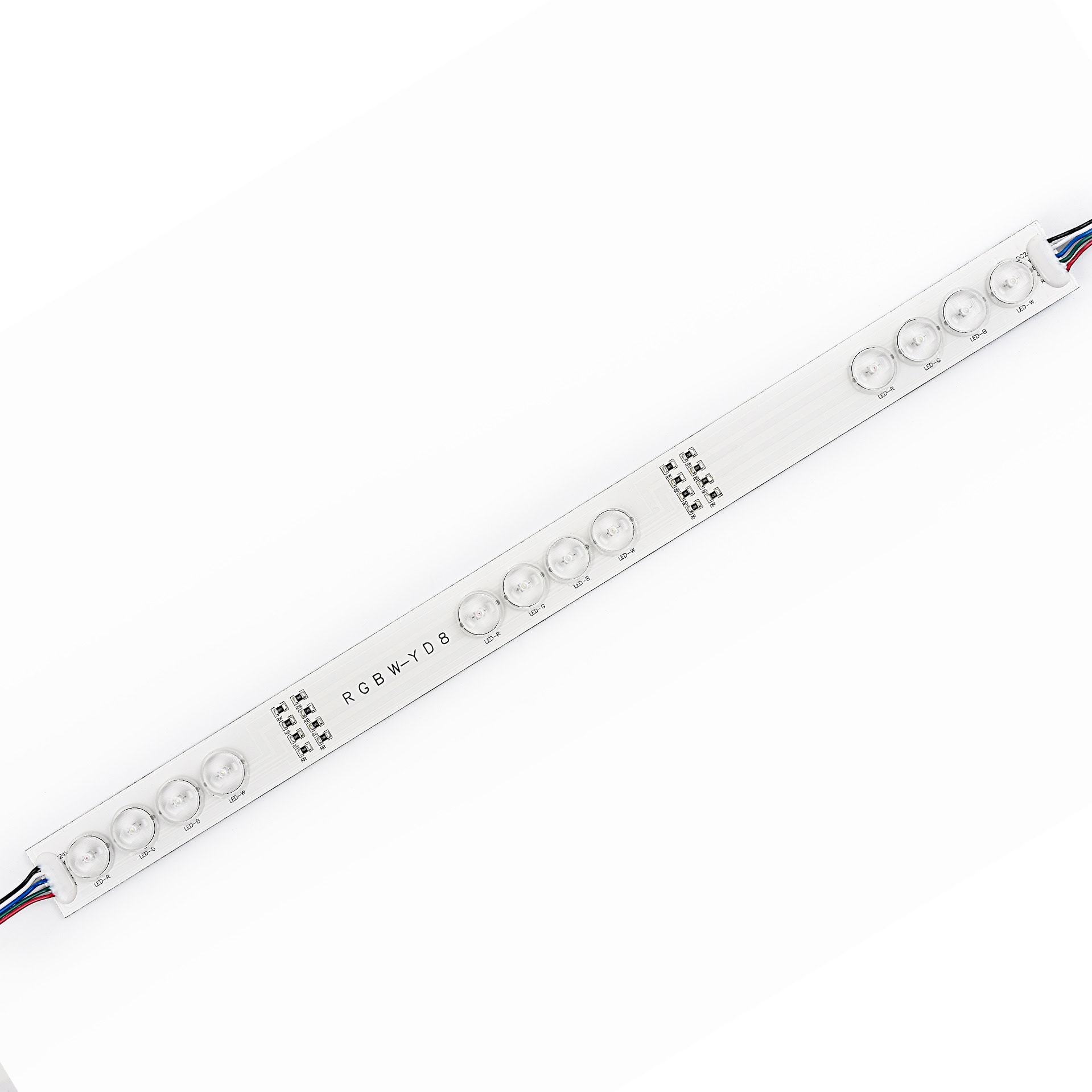

RGBW-YD8
No: RGBW-YD8
- Input voltage: DC24V
- Osram LED,excellent performance and stability with great color mixing
- Connected with external controller for full-color effect
- 170° beam angle for more uniform light, ideal for slim lightbox
- Aluminum PCB with heat conductive adhesive on back for better heat dissipation
DataSheet
-
RGBW-YD8View PDF DataSheet

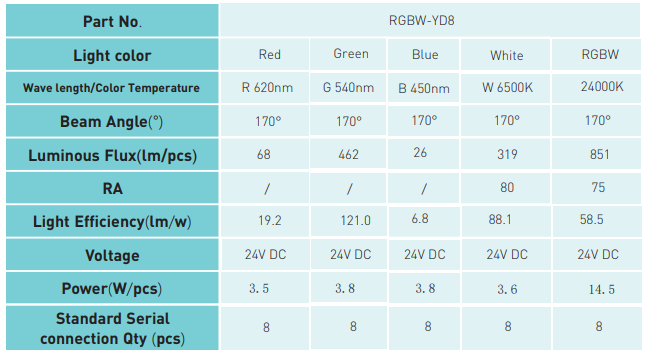

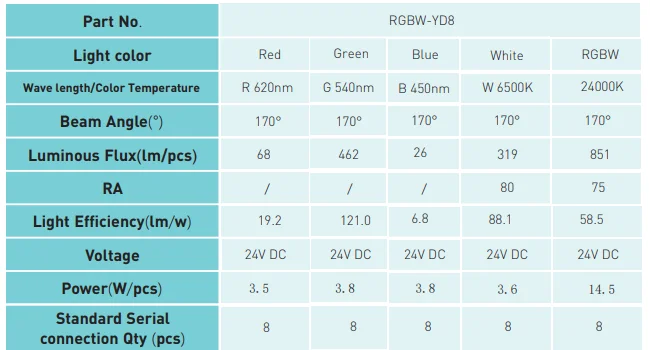

General Parameters RGBW-YD8
| Part No. | RGBW-YD8 | ||||
| Light color | Red | Green | Blue | White | RGBW |
| Wave length/Color Temperature | R 620nm | G 540nm | B 450nm | W 6500K | 24000K |
| Beam Angle(°) | 170° | 170° | 170° | 170° | 170° |
| Luminous Flux(lm/pcs) | 68 | 462 | 26 | 319 | 851 |
| RA | / | / | / | 80 | 75 |
| Light Efficiency(lm/w) | 19.2 | 121.0 | 6.8 | 88.1 | 58.5 |
| Voltage | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Power(W/pcs) | 3.5 | 3.8 | 3.8 | 3.6 | 14.5 |
| Standard Serial connection Qty (pcs) |
8 | 8 | 8 | 8 | 8 |
