IP20

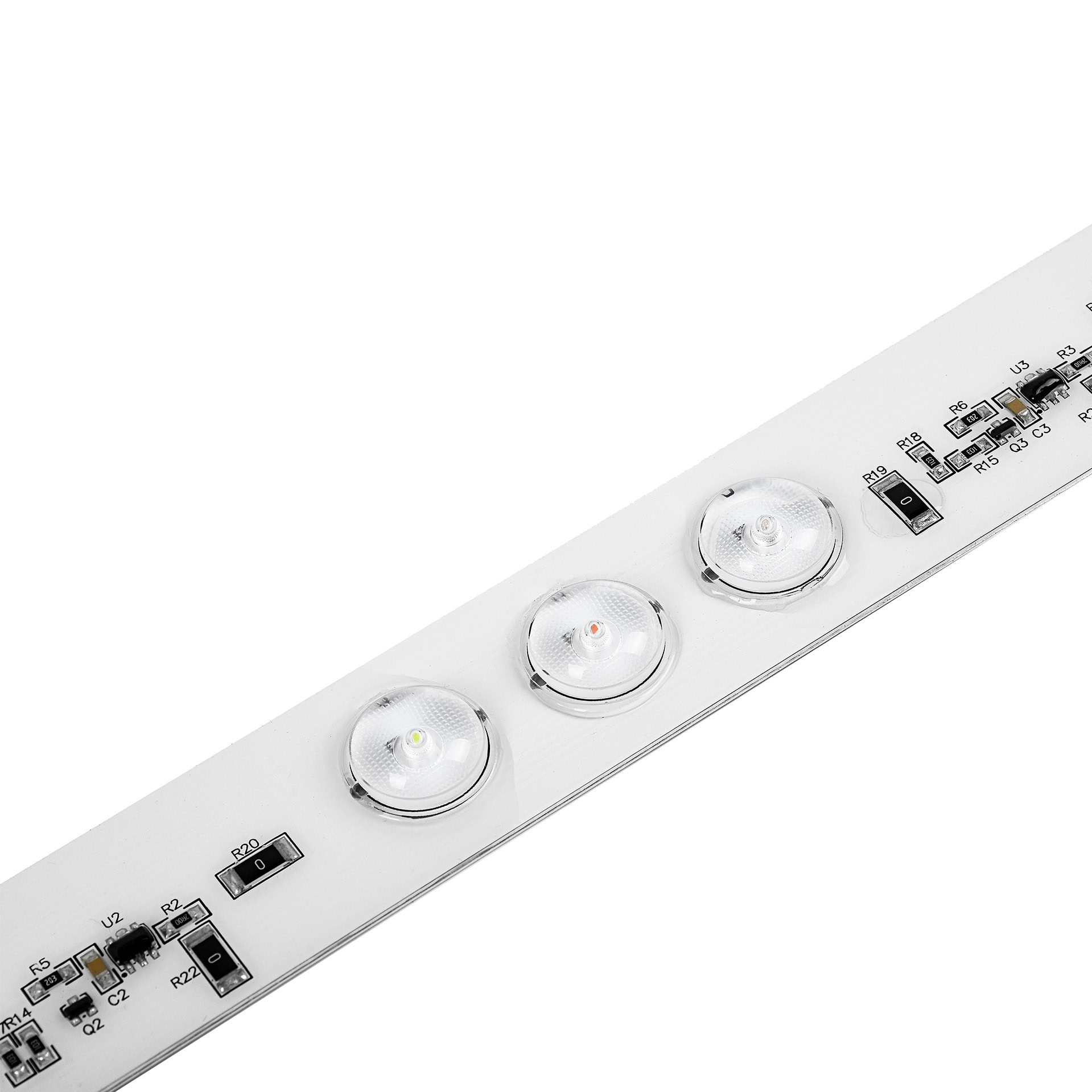

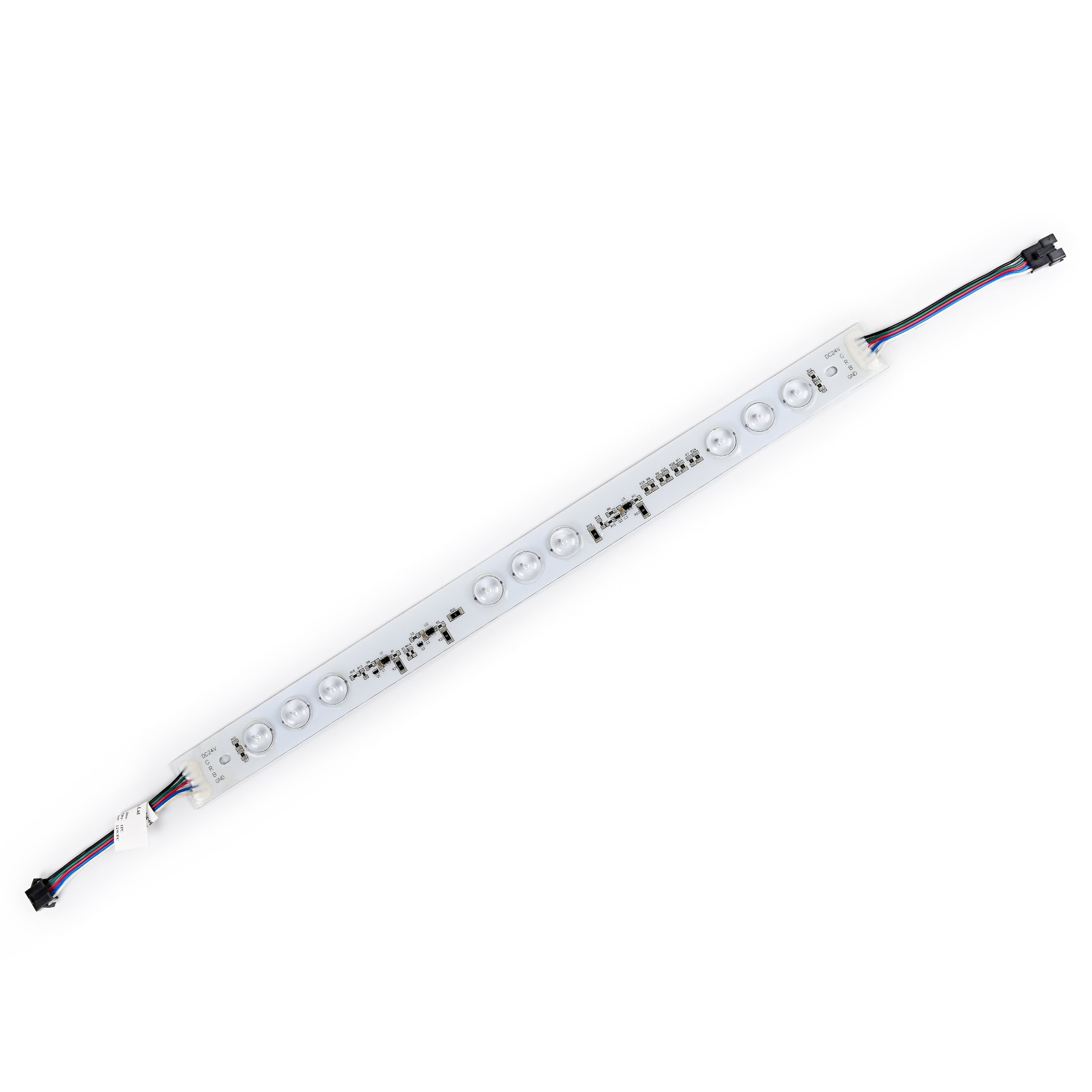

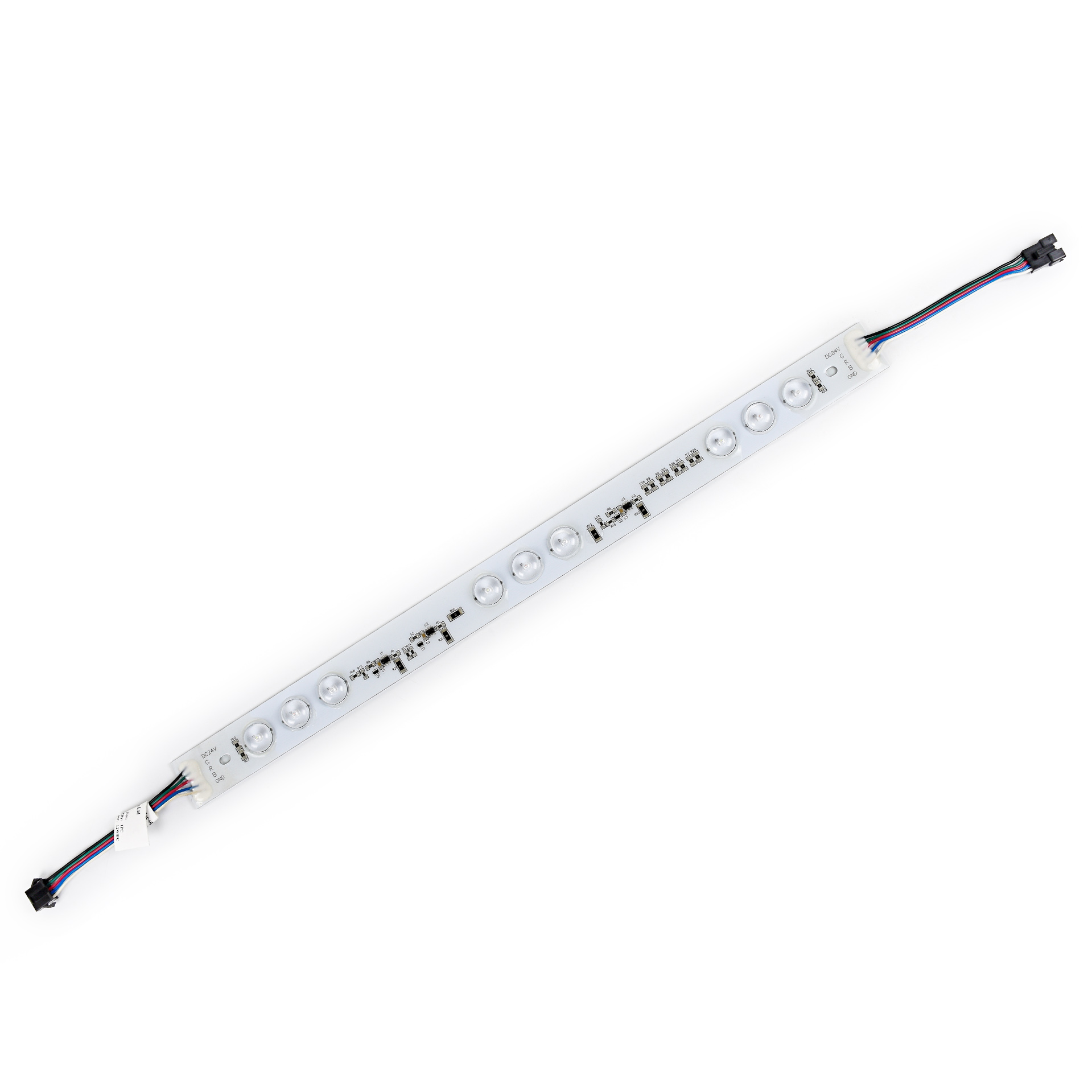

24V RGB Large Angle Rigid Bar QYD8
No: QYD8
- Input voltage: DC24V
- Osram single color LED, color mixing well, excellent light performance and stability
- Can be connected with external controller, and achieve full-color effect
- Beam angle 170°, excellent light effect, suitable for slim light box
- Aluminum PCB and backside with heat conductive adhesive tape, better heat diffusion
DataSheet

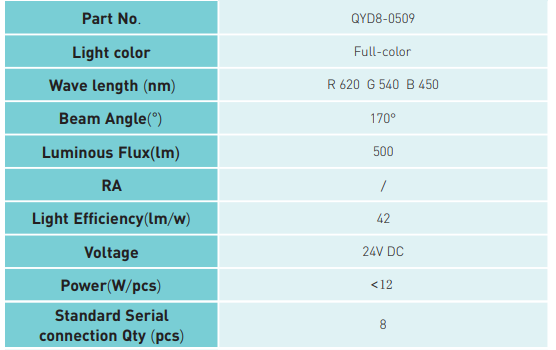

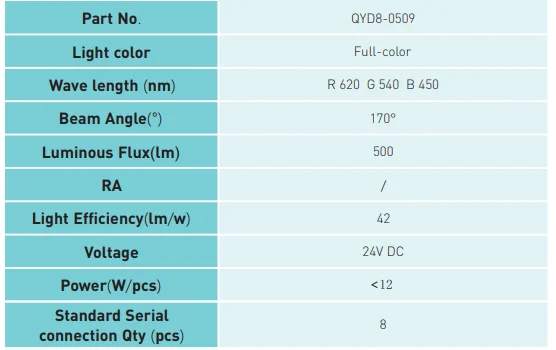

General Parameters 24V RGB Large Angle Rigid Bar QYD8
| Part No. | QYD8-0509 |
| Light color | Full-color |
| Wave length (nm) | R 620 G 540 B 450 |
| Beam Angle(°) | 170° |
| Luminous Flux(lm) | 500 |
| RA | / |
| Light Efficiency(lm/w) | 42 |
| Voltage | 24V DC |
| Power(W/pcs) | <12 |
| Standard Serial connection Qty (pcs) |
8 |
