IP68

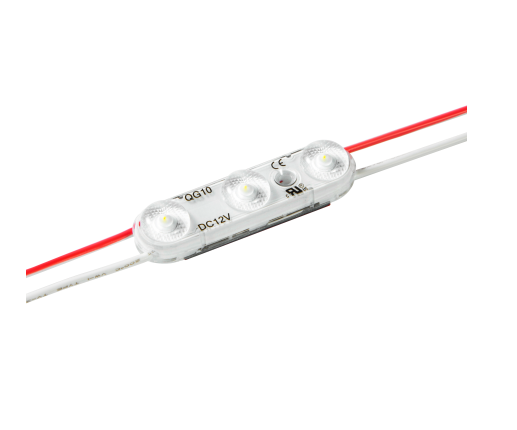

QG10
No: QG10
- High effi cacy
- Adopt integrated lens
- Full glue coated, can be directly used for outdoors
- Single module can be cut
DataSheet
-
QG10View PDF DataSheet

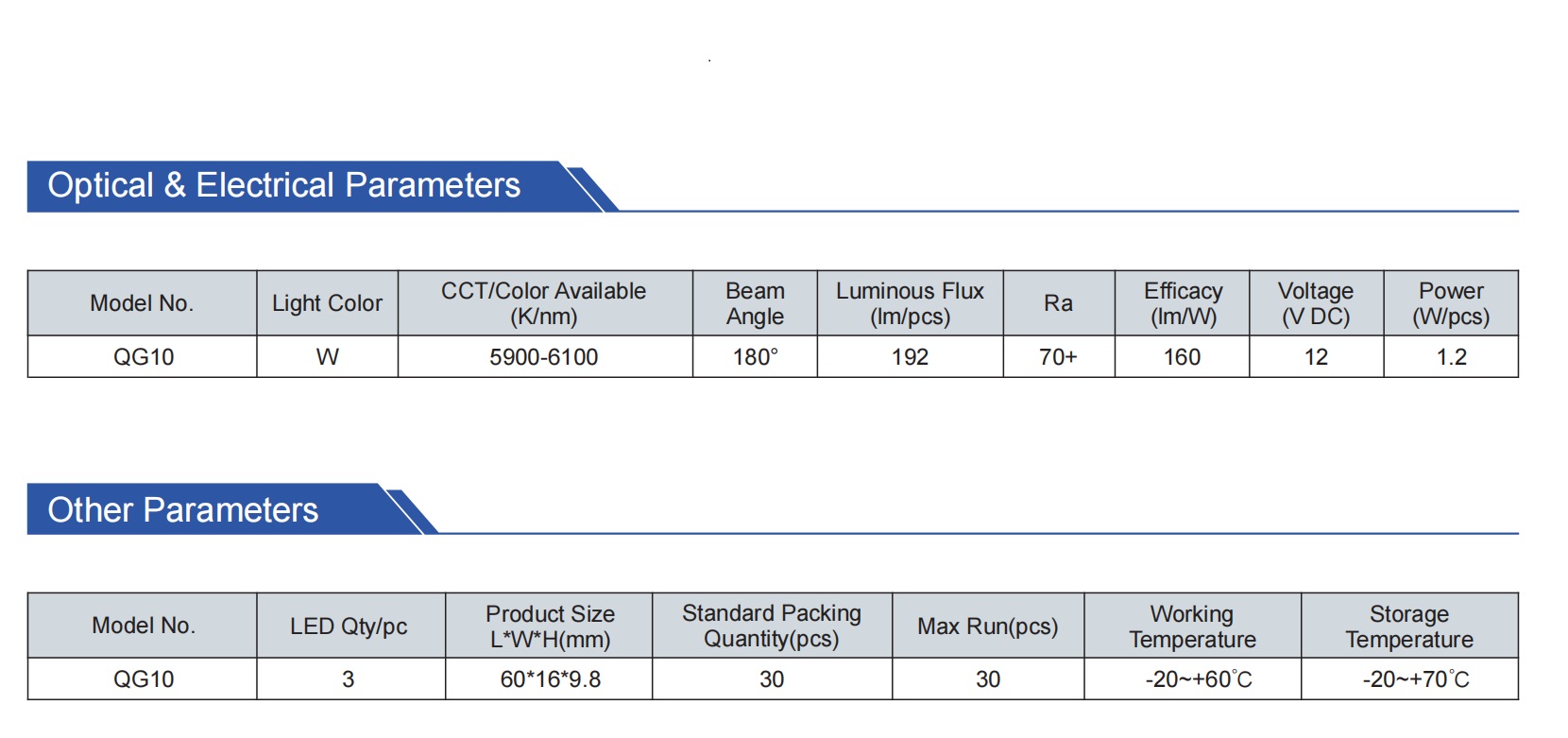

General Parameters QG10
| Model No. | Light Color | CCT/Color Available (K/nm) | Beam Angle | Luminous Flux (lm/pcs) | Ra | Efficacy (lm/W) | Voltage (V DC) | Power (W/pcs) |
| QG10 | W | 5900-6100 | 180° | 192 | 70+ | 160 | 12 | 1.2 |
Other Parameters
| Model No. | LED Qty/pc | Product Size L*W*H(mm) | Standard Packing Quantity(pcs) | Max Run(pcs) | Working Temperature | Storage Temperature |
| QG10 | 3 | 60*16*9.8 | 30 | 30 | -20~+60°C | -20~+70°C |
