IP68

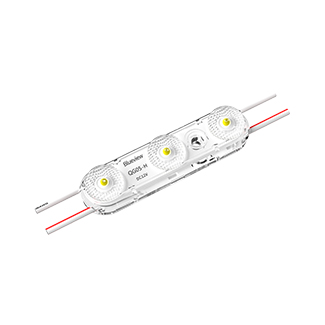

QG05-H
No: QG05-H
- High luminous efficiency
- Big beam angle
- Constant current design, long run series
- Adopt integrated lens
- Full glue coated, suitable for outdoor use
- Single module can be cut, customization available
DataSheet
-
QG5-HView PDF DataSheet
General Parameters QG05-H
| Model No. | Light Color | CCT(K) | Beam Angle | Luminous Flux (lm/pcs) | Ra | Efficacy (lm/W) | Voltage (V DC) | Power (W/pcs) |
| QG05-H | W | 6000-7000 | 180° | 175 | 70+ | 175 | 12 | 1.0 |
Other Parameters
| Model No. | LED Qty/pc | Product Size L*W*H(mm) | Standard Run(pcs) | Max Run(pcs) | Working Temperature | Storage Temperature |
| QG05-H | 3 | 60*16*9.8 | 50 | 50 | -20~+60°C | -20~+70°C |
