QBPS-RGB
No: QBPS-RGB
- Input voltage: DC24V
- CREE single color LED, color mixing well, excellent light performance and stability
- Can be connected with external controller, and achieve full-color effect
- Beam angle 10*60°, better light effect and longer shooting distance
- Aluminum PCB and backside with heat conductive adhesive tape, better heat diffusion
DataSheet
-
QBPSView PDF DataSheet

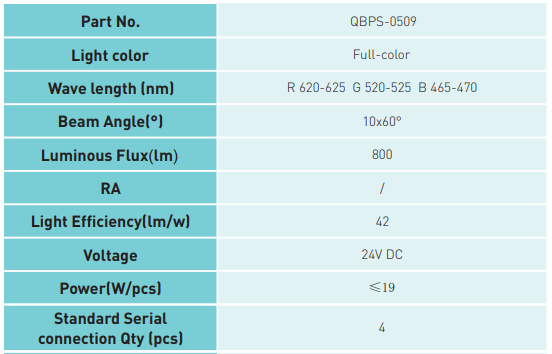

General Parameters QBPS-RGB
| Part No. | QBPS-0509 |
| Light color | Full-color |
| Wave length (nm) | R 620-625 G 520-525 B 465-470 |
| Beam Angle(°) | 10×60° |
| Luminous Flux(lm) | 800 |
| RA | / |
| Light Efficiency(lm/w) | 42 |
| Voltage | 24V DC |
| Power(W/pcs) | ≤19 |
| Standard Serial connection Qty (pcs) |
4 |
