IP66
PT12
No: PT12
- Adopt integrated, diffuse reflection and large angle lens;
- Ultrasonic waterproofing technology;
- A single module can be cut, easy to install;
- Support PWM dimming
DataSheet
-
PT12View PDF DataSheet

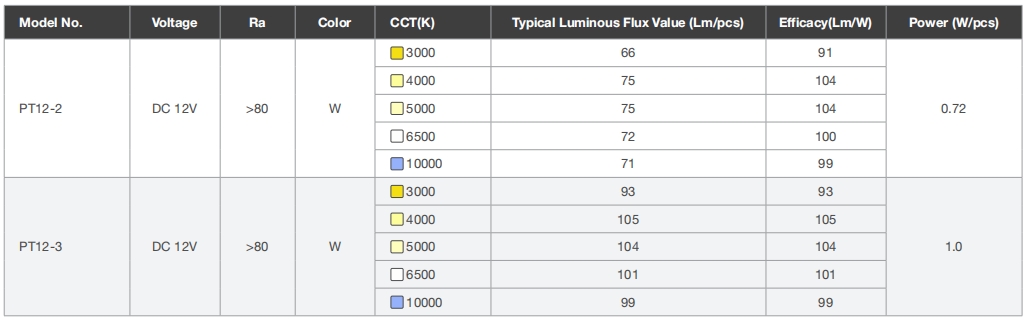

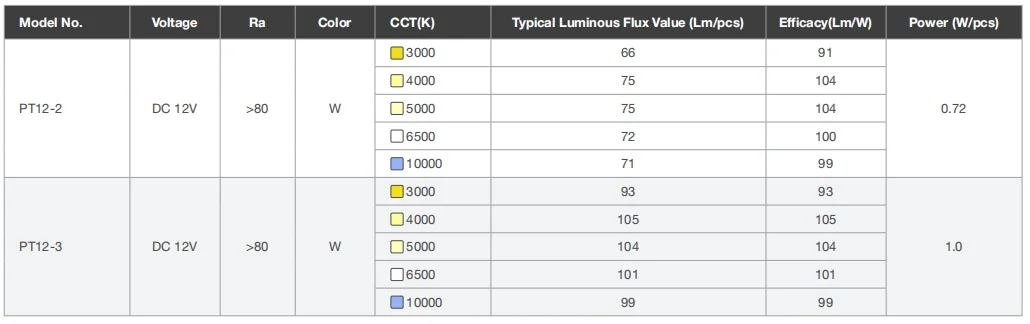

General Parameters PT12
| Model No. | Voltage | Ra | Color | CCT(K) | Typical Luminous Flux Value (Lm/pcs) | Efficacy(Lm/W) | Power (W/pcs) |
| PT12-2 | DC 12V | >80 | W | 3000 | 66 | 91 | 0.72 |
| 4000 | 75 | 104 | |||||
| 5000 | 75 | 104 | |||||
| 6500 | 72 | 100 | |||||
| 10000 | 71 | 99 | |||||
| PT12-3 | DC 12V | >80 | W | 3000 | 93 | 93 | 1.0 |
| 4000 | 105 | 105 | |||||
| 5000 | 104 | 104 | |||||
| 6500 | 101 | 101 | |||||
| 10000 | 99 | 99 |
