IP66

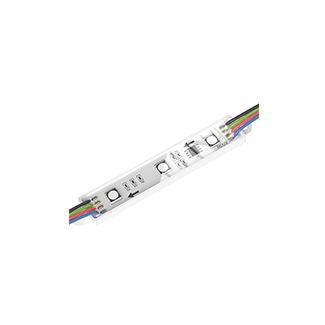

PQ5-B
No: PQ5-B
- Adopt auto integer forwarding technology, long distance signal transmission without signal distortion or weakness.
- PWM signal, 256 grades brightness controllable. Single-line three-channel LED constant current drive, the external controller
- can control the chip with single line.
- Signal never rip even foregoing led error.
- Support multiple controllers to realize various light effects.
- Controller must be used to lit the product.
DataSheet
-
PQ5-BView PDF DataSheet

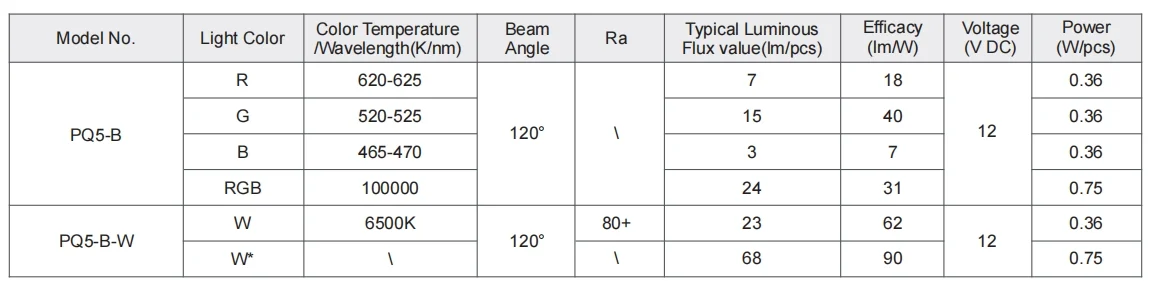

General Parameters PQ5-B
| Model No. | Light Color | Color Temperature /Wavelength(K/nm) | Beam Angle | Ra | Typical Luminous Flux value(lm/pcs) | Efficacy (lm/W) | Voltage (V DC) | Power (W/pcs) |
| PQ5-B | R | 620-625 | 120° | \ | 7 | 18 | 12 | 0.36 |
| G | 520-525 | 15 | 40 | 0.36 | ||||
| B | 465-470 | 3 | 7 | 0.36 | ||||
| RGB | 100000 | 24 | 31 | 0.75 | ||||
| PQ5-B-W | W | 6500K | 120° | 80+ | 23 | 62 | 12 | 0.36 |
| W* | \ | \ | 68 | 90 | 0.75 |
