IP67
NSR0615
No: NSR0615
- Color options: Single color and tunable white
- Side bending with good flexibility
- Adopt integrated silicone extrusion molding process, good weather resistance
- Warranty: 5 years indoor, 3 years outdoor
- Customization: multiple spec options, can be customized upon requirements
- Single color supports PWM, 0-10V, DALI and DMX dimming
DataSheet
-
NSR0615View PDF DataSheet

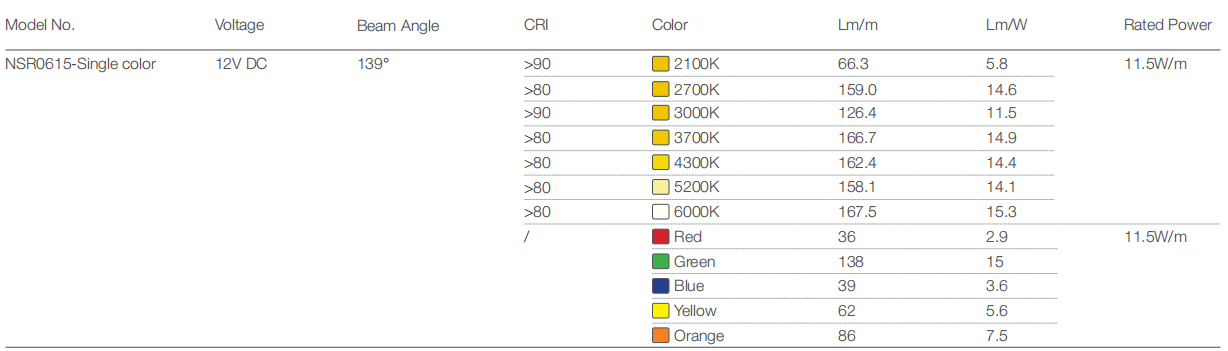

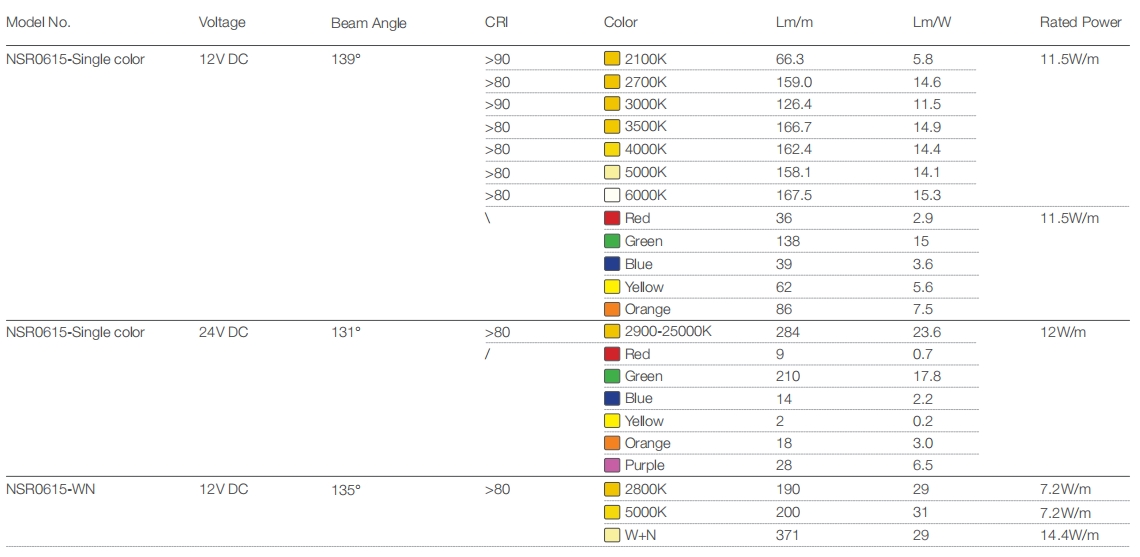

General Parameters NSR0615
| Model No. | Voltage | Beam Angle | CRI | Color | Lm/m | Lm/W | Rated Power |
| NSR0615-Single color | 12V DC | 139° | >90 | 2100K | 66.3 | 5.8 | 11.5W/m |
| >80 | 2700K | 159.0 | 14.6 | ||||
| >90 | 3000K | 126.4 | 11.5 | ||||
| >80 | 3500K | 166.7 | 14.9 | ||||
| >80 | 4000K | 162.4 | 14.4 | ||||
| >80 | 5000K | 158.1 | 14.1 | ||||
| >80 | 6000K | 167.5 | 15.3 | ||||
| \ | Red | 36 | 2.9 | 11.5W/m | |||
| Green | 138 | 15 | |||||
| Blue | 39 | 3.6 | |||||
| Yellow | 62 | 5.6 | |||||
| Orange | 86 | 7.5 | |||||
| NSR0615-Single color | 24V DC | 131° | >80 | 2900-25000K | 284 | 23.6 | 12W/m |
| / | Red | 9 | 0.7 | ||||
| Green | 210 | 17.8 | |||||
| Blue | 14 | 2.2 | |||||
| Yellow | 2 | 0.2 | |||||
| Orange | 18 | 3.0 | |||||
| Purple | 28 | 6.5 | |||||
| NSR0615-WN | 12V DC | 135° | >80 | 2800K | 190 | 29 | 7.2W/m |
| 5000K | 200 | 31 | 7.2W/m | ||||
| W+N | 371 | 29 | 14.4W/m |
