IP67
NSF0612
No: NSF0612
- Color options: Single color, WN.
- Adopt high quality components with stable and reliable performance.

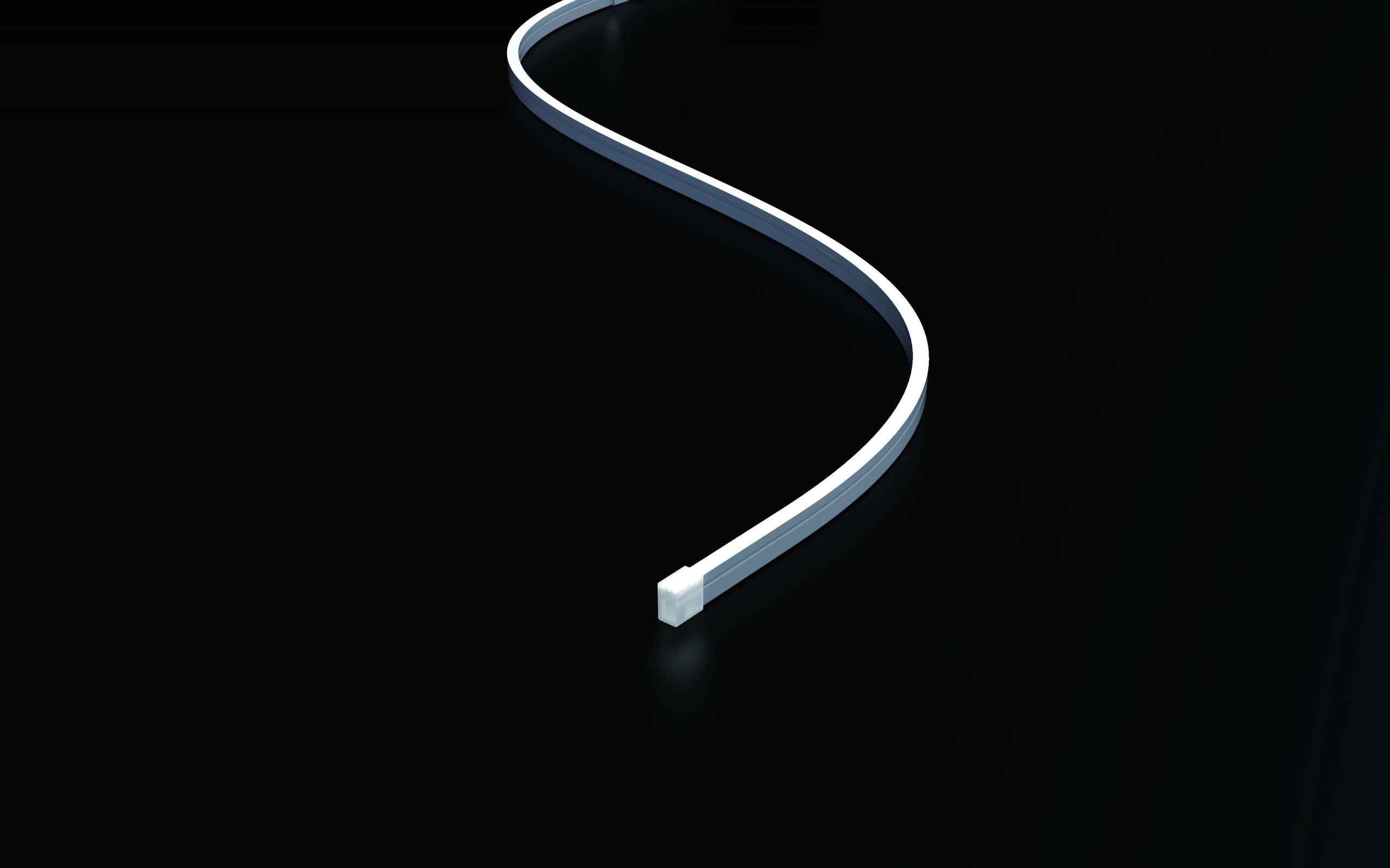

- Side bending, suitable for many shapes and good weather resistance.
- Warranty: 5 years indoor, 3 years outdoor.
- Customization: multiple spec options, can be customized upon requirements.
- Single color supports PWM, 0-10V, DALI and DMX dimming.
DataSheet
-
NSF0612View PDF DataSheet

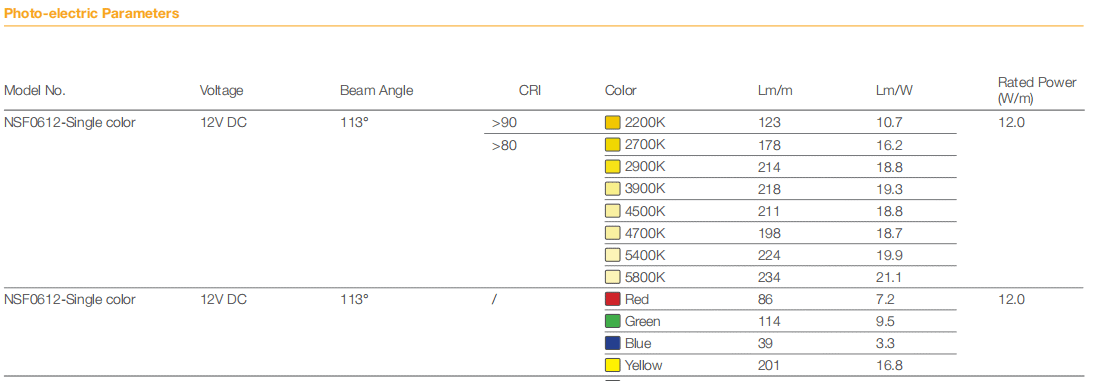

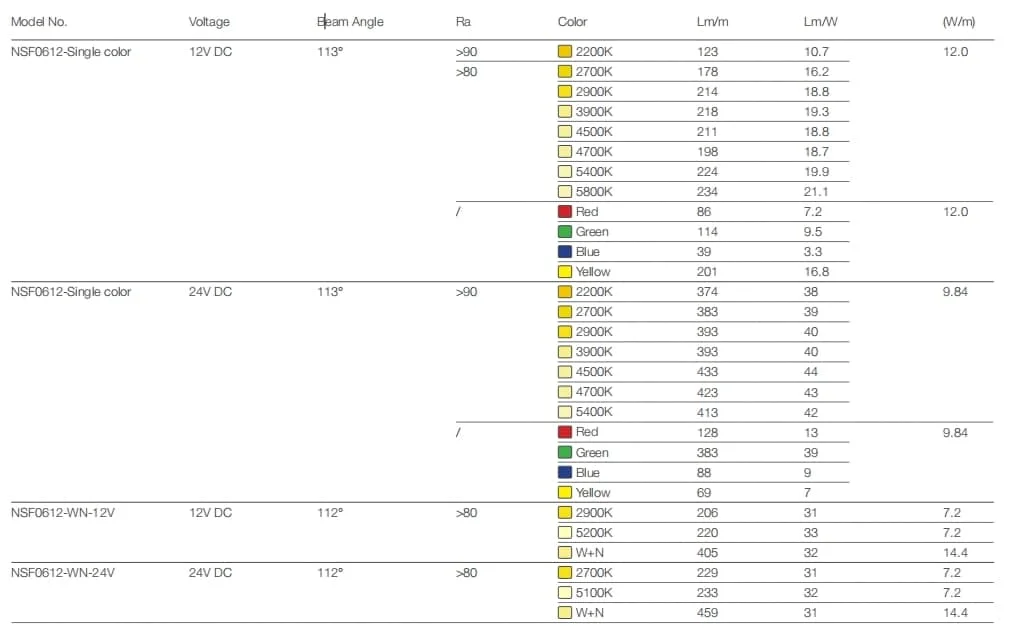

General Parameters NSF0612
| Model No. | Voltage | Beam Angle | Ra | Color | Lm/m | Lm/W | (W/m) |
| NSF0612-Single color | 12V DC | 113° | >90 | 2200K | 123 | 10.7 | 12.0 |
| >80 | 2700K | 178 | 16.2 | ||||
| 2900K | 214 | 18.8 | |||||
| 3900K | 218 | 19.3 | |||||
| 4500K | 211 | 18.8 | |||||
| 4700K | 198 | 18.7 | |||||
| 5400K | 224 | 19.9 | |||||
| 5800K | 234 | 21.1 | |||||
| / | Red | 86 | 7.2 | 12.0 | |||
| Green | 114 | 9.5 | |||||
| Blue | 39 | 3.3 | |||||
| Yellow | 201 | 16.8 | |||||
| NSF0612-Single color | 24V DC | 113° | >90 | 2200K | 374 | 38 | 9.84 |
| 2700K | 383 | 39 | |||||
| 2900K | 393 | 40 | |||||
| 3900K | 393 | 40 | |||||
| 4500K | 433 | 44 | |||||
| 4700K | 423 | 43 | |||||
| 5400K | 413 | 42 | |||||
| / | Red | 128 | 13 | 9.84 | |||
| Green | 383 | 39 | |||||
| Blue | 88 | 9 | |||||
| Yellow | 69 | 7 | |||||
| NSF0612-WN-12V | 12V DC | 112° | >80 | 2900K | 206 | 31 | 7.2 |
| 5200K | 220 | 33 | 7.2 | ||||
| W+N | 405 | 32 | 14.4 | ||||
| NSF0612-WN-24V | 24V DC | 112° | >80 | 2700K | 229 | 31 | 7.2 |
| 5100K | 233 | 32 | 7.2 | ||||
| W+N | 459 | 31 | 14.4 |
