IP67

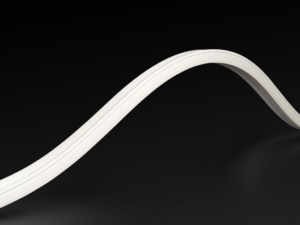

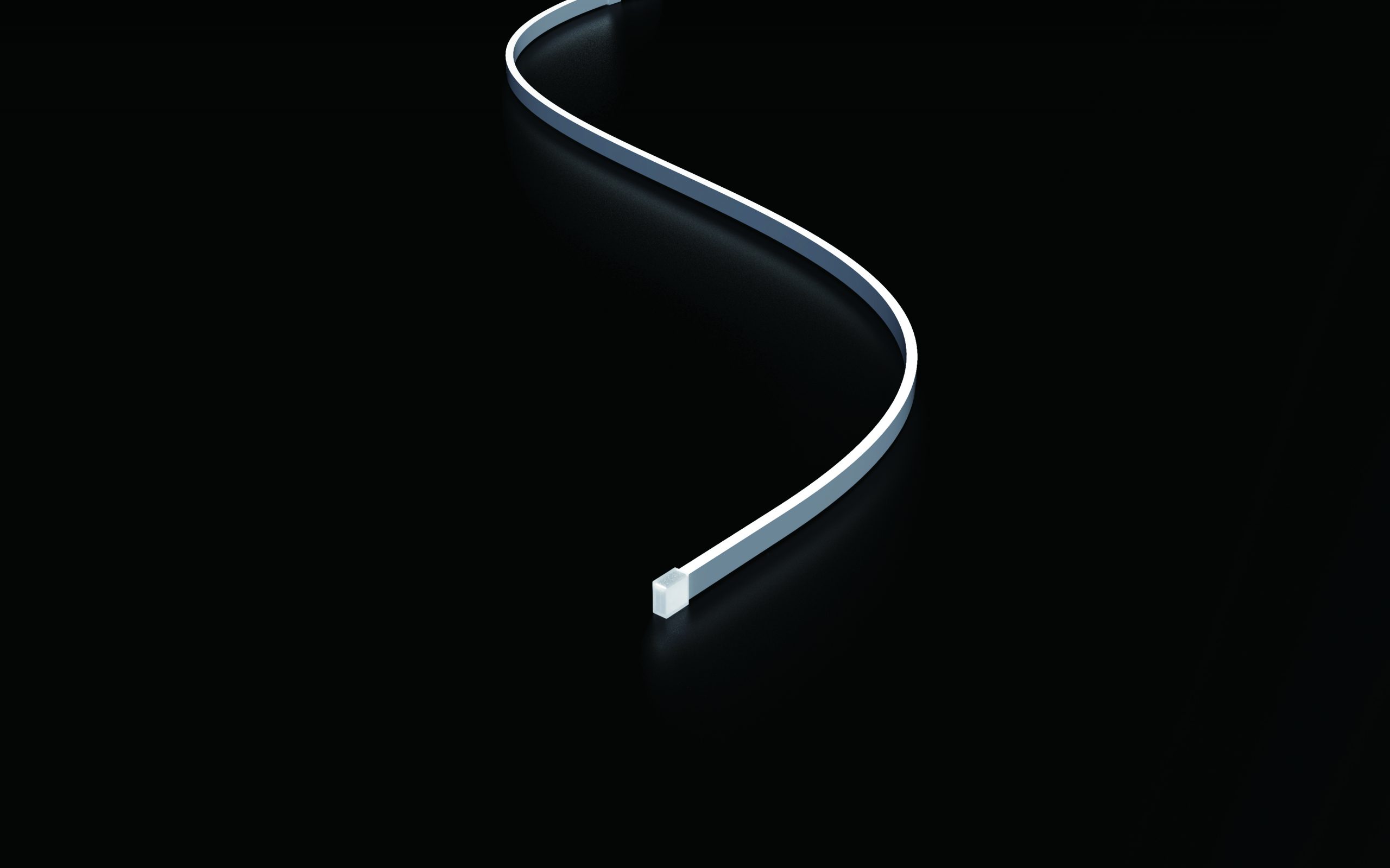

24V Mini Side-Bend Neon Flex NSF0410
No: NSF0410
~332lm/M
9.6W/m
Ra: ≥90
QTY: 120
Light Efficacy: 33.9lm/W
Run Length:5mm
4mm(W) / 10mm(H)
- Color options: Single color.
- Adopt high quality components with stable and reliable performance.
- Side bending, suitable for many shapes and good environmental adaptability.
- Support PWM, 0~10V, DALI, DMXdimming.
- Warranty: 5 years indoor, 3 years outdoor.
- Customization: multiple spec options, can be customized upon requirements.
DataSheet
-
NSF0410View PDF DataSheetNEW

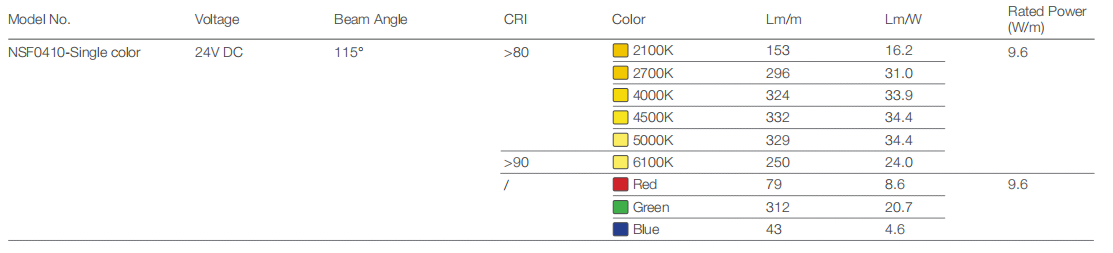

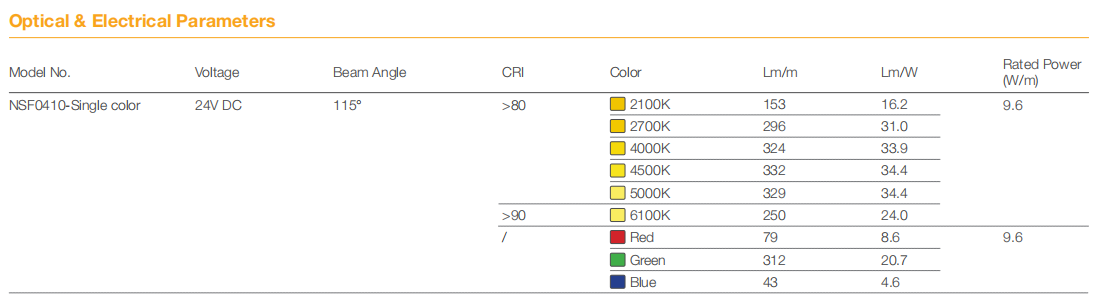

General Parameters 24V Mini Side-Bend Neon Flex NSF0410
| Model No. | Voltage | Beam Angle | CRI | Color | Lm/m | Lm/W | W/m |
| NSF0410-Single color | 24V DC | 115° | >80 | 2100K | 153 | 16.2 | 9.6 |
| 2700K | 296 | 31.0 | |||||
| 4000K | 324 | 33.9 | |||||
| 4500K | 332 | 34.4 | |||||
| 5000K | 329 | 34.4 | |||||
| >90 | 6100K | 250 | 24.0 | ||||
| / | Red | 79 | 8.6 | 9.6 | |||
| Green | 312 | 20.7 | |||||
| Blue | 43 | 4.6 |
