IP68
NDR2018
No: NDR2018
- Color options: Single color, WN, RGB, RGBW and Pixel
- Single color support PWM, 0~10V, DALI, DMX dimming
- Adopt high quality constant current components with stable and reliable performance
- Top bending with good flexibility
- Silicone integrated extrusion shaping process with good weather resistance
- Warranty: 5 years indoor, 3 years outdoor
- Customization: multiple spec options, can be customized upon requirements
DataSheet

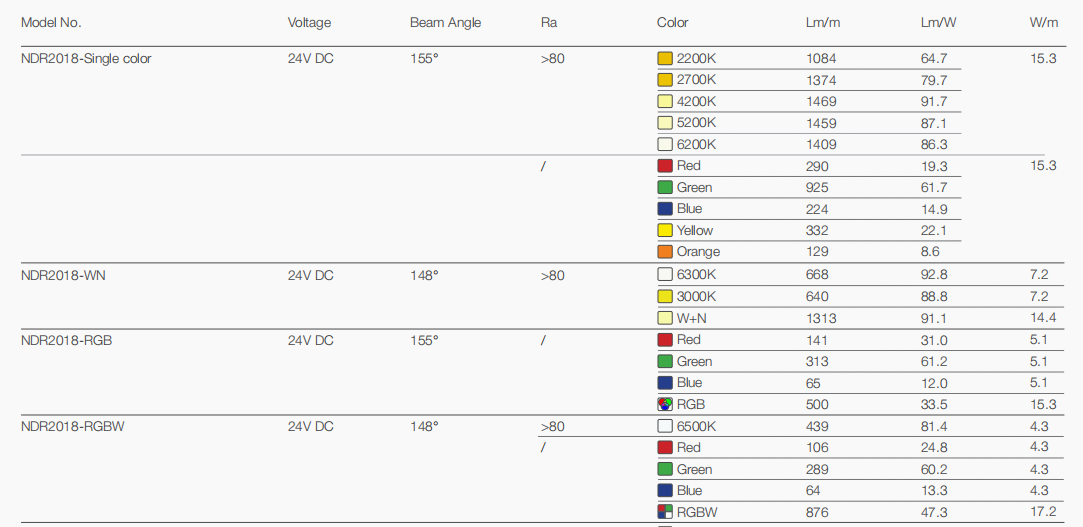

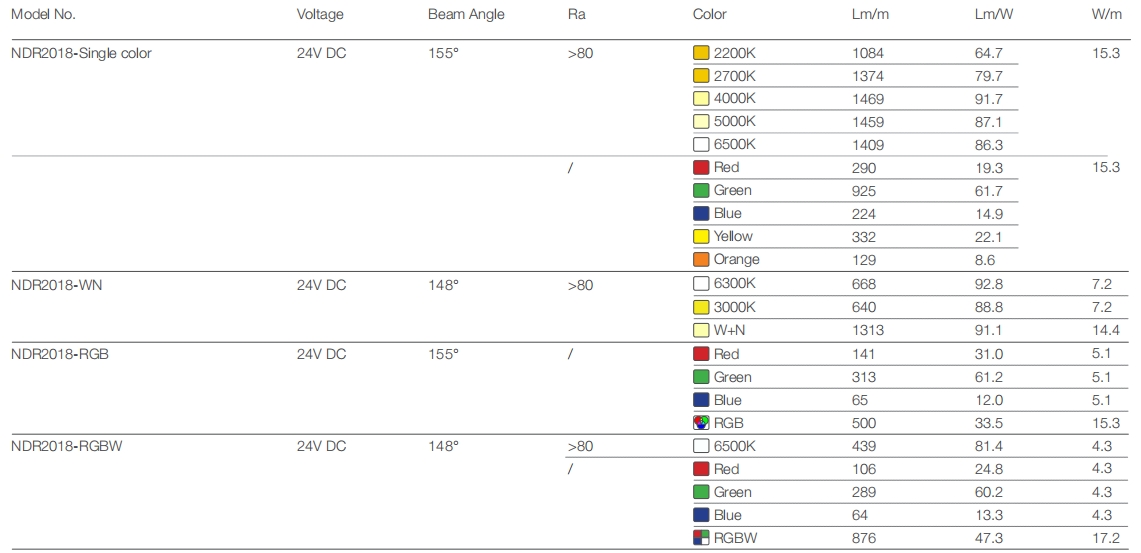

General Parameters NDR2018
| Model No. | Voltage | Beam Angle | Ra | Color | Lm/m | Lm/W | W/m |
| NDR2018-Single color | 24V DC | 155° | >80 | 2200K | 1084 | 64.7 | 15.3 |
| 2700K | 1374 | 79.7 | |||||
| 4000K | 1469 | 91.7 | |||||
| 5000K | 1459 | 87.1 | |||||
| 6500K | 1409 | 86.3 | |||||
| / | Red | 290 | 19.3 | 15.3 | |||
| Green | 925 | 61.7 | |||||
| Blue | 224 | 14.9 | |||||
| Yellow | 332 | 22.1 | |||||
| Orange | 129 | 8.6 | |||||
| NDR2018-WN | 24V DC | 148° | >80 | 6300K | 668 | 92.8 | 7.2 |
| 3000K | 640 | 88.8 | 7.2 | ||||
| W+N | 1313 | 91.1 | 14.4 | ||||
| NDR2018-RGB | 24V DC | 155° | / | Red | 141 | 31.0 | 5.1 |
| Green | 313 | 61.2 | 5.1 | ||||
| Blue | 65 | 12.0 | 5.1 | ||||
| RGB | 500 | 33.5 | 15.3 | ||||
| NDR2018-RGBW | 24V DC | 148° | >80 | 6500K | 439 | 81.4 | 4.3 |
| / | Red | 106 | 24.8 | 4.3 | |||
| Green | 289 | 60.2 | 4.3 | ||||
| Blue | 64 | 13.3 | 4.3 | ||||
| RGBW | 876 | 47.3 | 17.2 |
