IP68
NDF1212
No: NDF1212
- Color options: Single color, WN and RGB
- Design: Superior design with exquisite craftsmanship ensure stable and reliable performance
- Top bending with good flexibility
- Warranty: 5 years indoor, 3 years outdoor
- Customization: multiple spec options, can be customized upon requirements
- Single color does not support dimming (If using Mean Well ELG/HLG power supply, it supports PWM dimming within 2KHz)
DataSheet
-
NDF1212NEW View PDF DataSheet

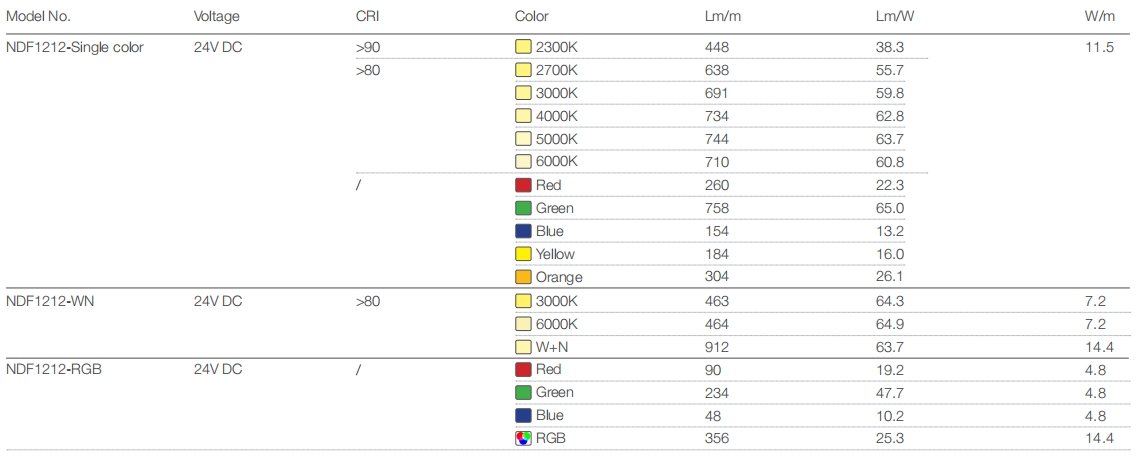

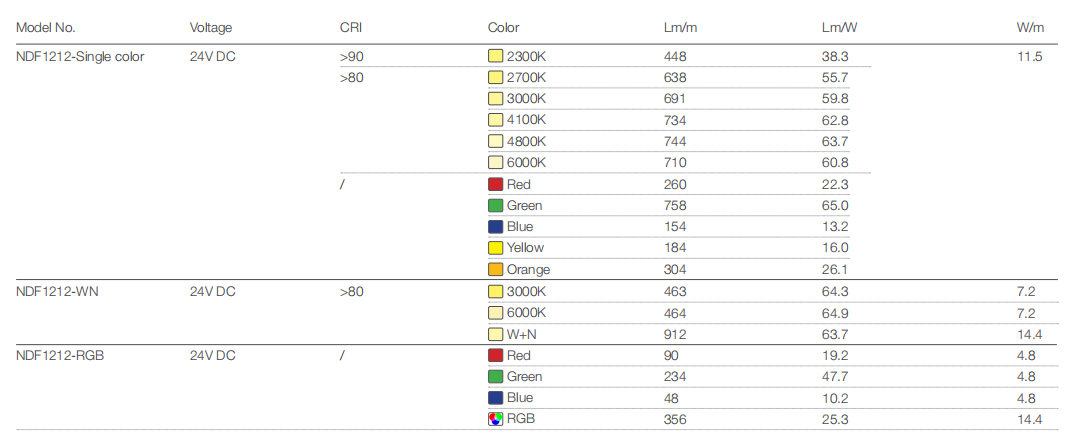

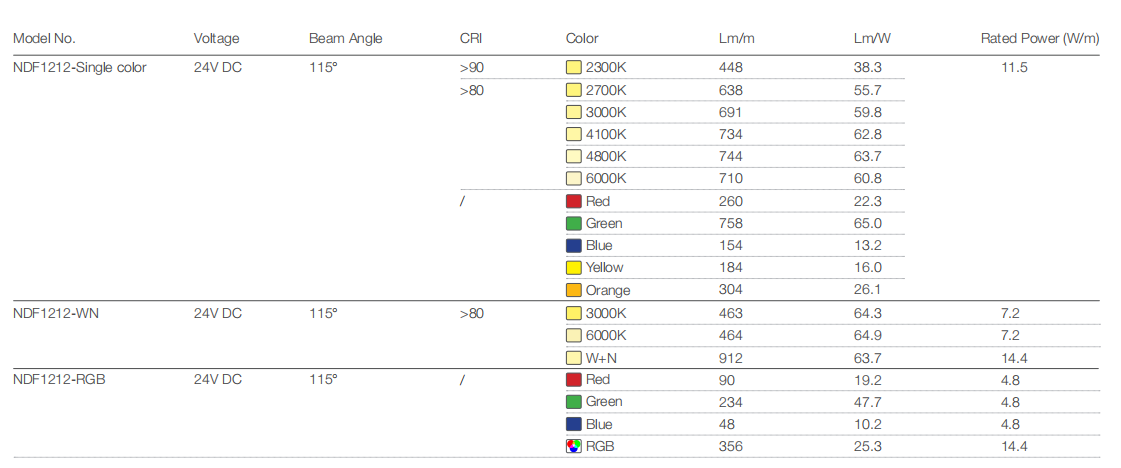

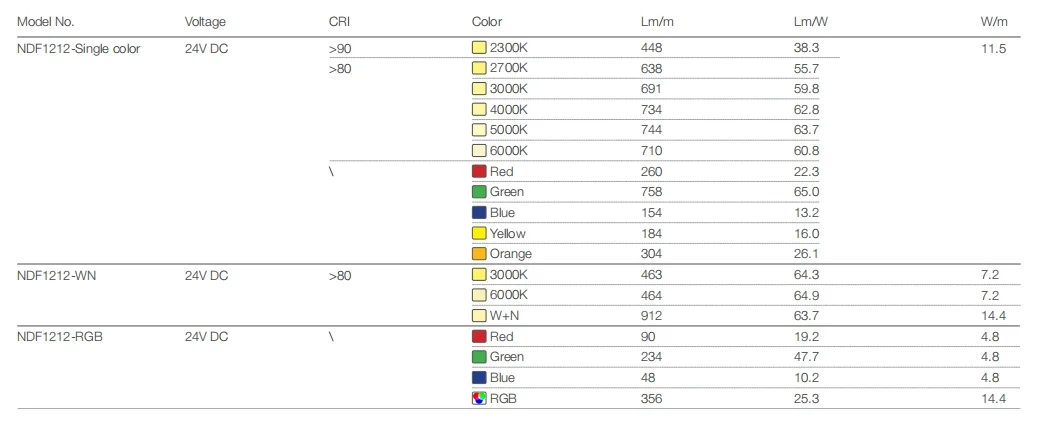

General Parameters NDF1212
| Model No. | Voltage | CRI | Color | Lm/m | Lm/W | W/m |
| NDF1212-Single color | 24V DC | >90 | 2300K | 448 | 38.3 | 11.5 |
| >80 | 2700K | 638 | 55.7 | |||
| 3000K | 691 | 59.8 | ||||
| 4000K | 734 | 62.8 | ||||
| 5000K | 744 | 63.7 | ||||
| 6000K | 710 | 60.8 | ||||
| \ | Red | 260 | 22.3 | |||
| Green | 758 | 65.0 | ||||
| Blue | 154 | 13.2 | ||||
| Yellow | 184 | 16.0 | ||||
| Orange | 304 | 26.1 | ||||
| NDF1212-WN | 24V DC | >80 | 3000K | 463 | 64.3 | 7.2 |
| 6000K | 464 | 64.9 | 7.2 | |||
| W+N | 912 | 63.7 | 14.4 | |||
| NDF1212-RGB | 24V DC | \ | Red | 90 | 19.2 | 4.8 |
| Green | 234 | 47.7 | 4.8 | |||
| Blue | 48 | 10.2 | 4.8 | |||
| RGB | 356 | 25.3 | 14.4 |
