N2-8 Plus
No: N2-8 Plus
- The rigid PCB design in a plastic shell, allowing for any bending or twisting without damaging the LEDs, PCB, or electronic components.
- Steel wires powered, long run length, strong tensile strength and 3D bending.
- Single-color warranty: 5 years. / Multicolor warranty: 5 years indoor, 3 years outdoor.
- Single-color supports PWM dimming up to 10kHz.
- Patented product. Counterfeiting prohibited.
- For single-color constant current dimming, use Mean Well HLG/ELG drivers. For other models, please contact us for compatibility.
DataSheet
-
N2-8 PlusView PDF DataSheet

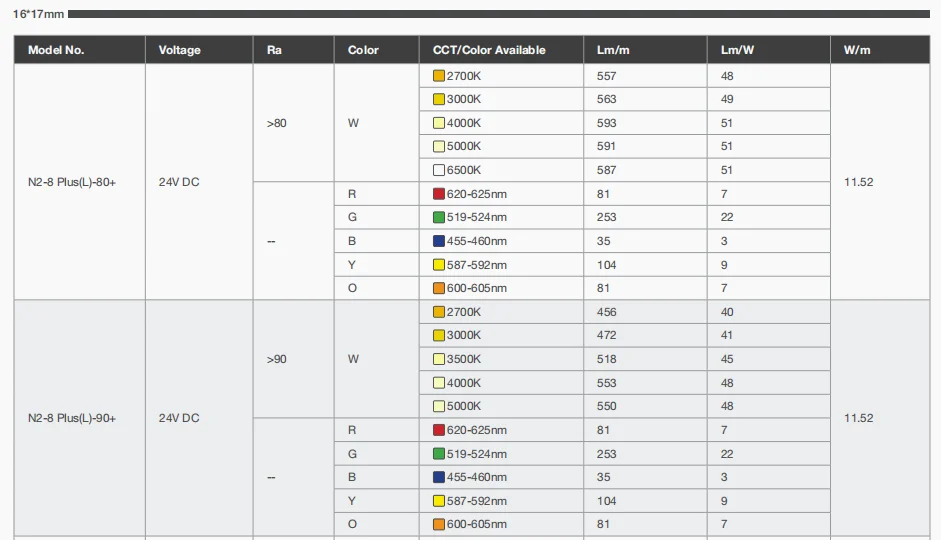

General Parameters N2-8 Plus
| Model No. | Voltage | Ra | Color | CCT/Color Available | Lm/m | Lm/W | W/m |
| N2-8 Plus(L)-80+ | 24V DC | >80 | W | 2700K | 557 | 48 | 11.52 |
| 3000K | 563 | 49 | |||||
| 4000K | 593 | 51 | |||||
| 5000K | 591 | 51 | |||||
| 6500K | 587 | 51 | |||||
| — | R | 620-625nm | 81 | 7 | |||
| G | 519-524nm | 253 | 22 | ||||
| B | 455-460nm | 35 | 3 | ||||
| Y | 587-592nm | 104 | 9 | ||||
| O | 600-605nm | 81 | 7 | ||||
| N2-8 Plus(L)-90+ | 24V DC | >90 | W | 2700K | 456 | 40 | 11.52 |
| 3000K | 472 | 41 | |||||
| 3500K | 518 | 45 | |||||
| 4000K | 553 | 48 | |||||
| 5000K | 550 | 48 | |||||
| — | R | 620-625nm | 81 | 7 | |||
| G | 519-524nm | 253 | 22 | ||||
| B | 455-460nm | 35 | 3 | ||||
| Y | 587-592nm | 104 | 9 | ||||
| 0 | 600-605nm | 81 | 7 |
