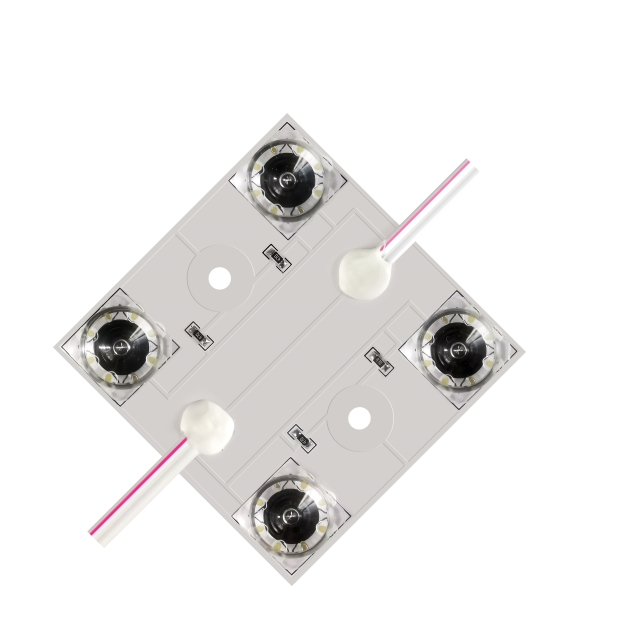

M8-S
No: M8-S
- Large beam angle 210°;
- Support PWM, 0-10V, and DALI dimming;
- Aluminum base for efficient heat dissipation;
- Single module cuttable, easy to install;
DataSheet
-
M8-SView PDF DataSheet

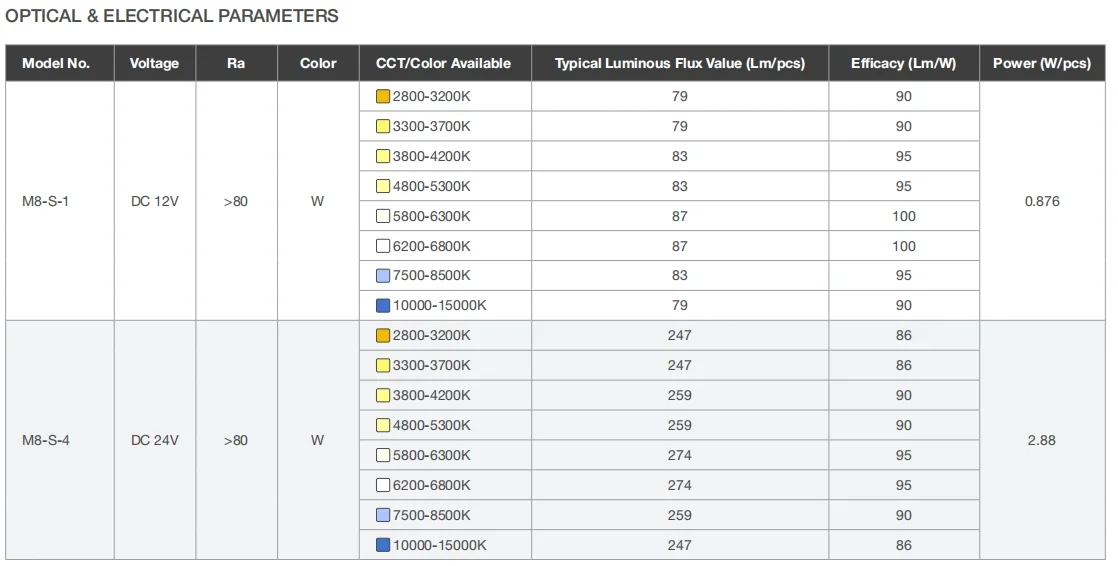

General Parameters M8-S
| Model No. | Voltage | Ra | Color | CCT/Color Available | Typical Luminous Flux Value (Lm/pcs) | Efficacy (Lm/W) | Power (W/pcs) |
| M8-S-1 | DC 12V | >80 | W | 2800-3200K | 79 | 90 | 0.876 |
| 3300-3700K | 79 | 90 | |||||
| 3800-4200K | 83 | 95 | |||||
| 4800-5300K | 83 | 95 | |||||
| 5800-6300K | 87 | 100 | |||||
| 6200-6800K | 87 | 100 | |||||
| 7500-8500K | 83 | 95 | |||||
| 10000-15000K | 79 | 90 | |||||
| M8-S-4 | DC 24V | >80 | W | 2800-3200K | 247 | 86 | 2.88 |
| 3300-3700K | 247 | 86 | |||||
| 3800-4200K | 259 | 90 | |||||
| 4800-5300K | 259 | 90 | |||||
| 5800-6300K | 274 | 95 | |||||
| 6200-6800K | 274 | 95 | |||||
| 7500-8500K | 259 | 90 | |||||
| 10000-15000K | 247 | 86 |
