IP66

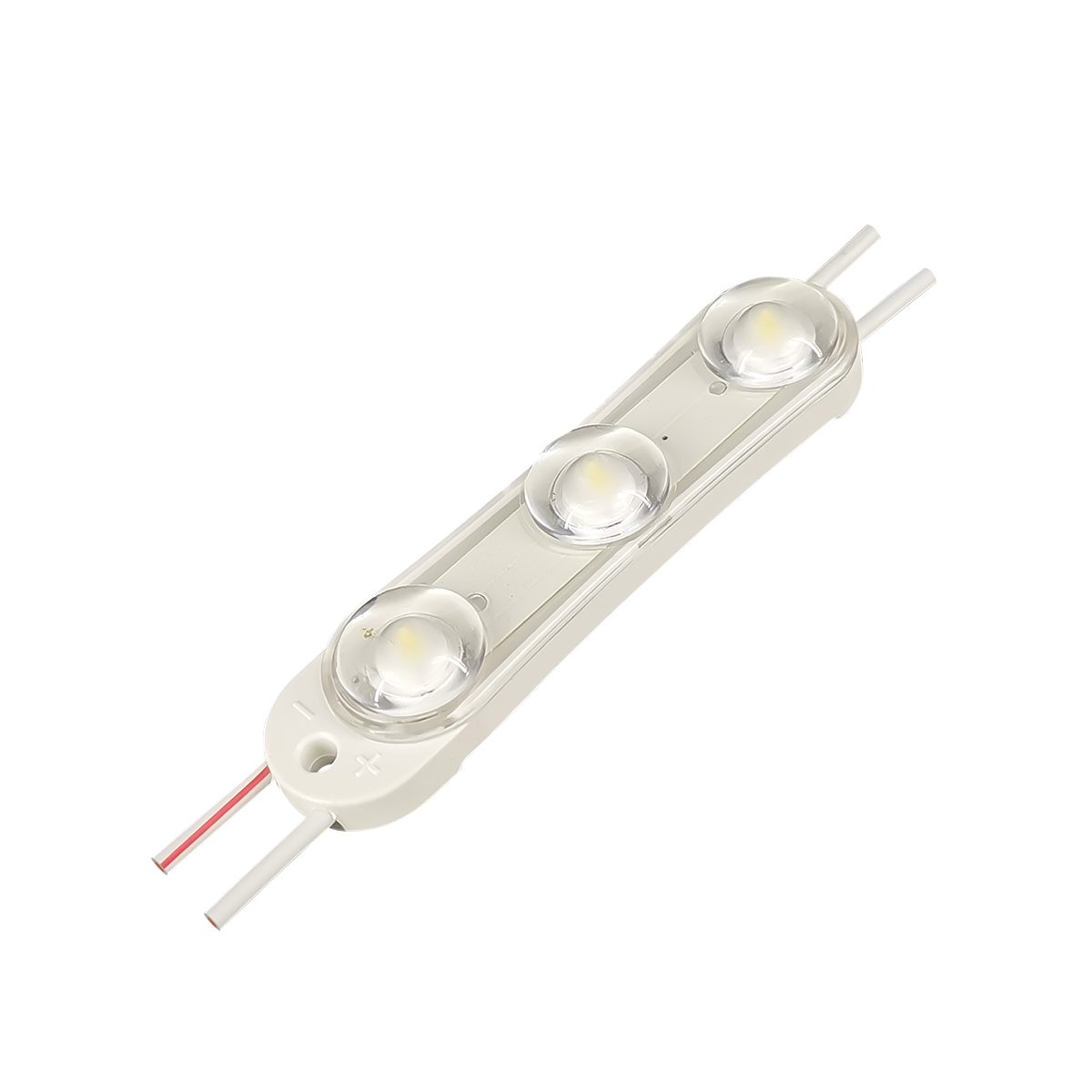

12V High Efficiency Module M1 Pro
No: M1 Pro
~59lm/M
0.36W/m
Ra: ≥70
SMD2835
QTY: 1
Light Efficacy: 165lm/W
Run Length:120mm
15.7mm(W) / 10.4mm(H)
- 180LM/W high efficiency;
- Adopt diffuse optical lens;
- Full enclosuer injection molding, IP67;
- Single module cuttable, easy to installation;
- Support PWM, DALI dimming;
DataSheet
-
M1 ProView PDF DataSheet
General Parameters 12V High Efficiency Module M1 Pro
| Model No. | Light Color | CCT (K) | Beam Angle | Typical Luminous Flux value (lm/pcs) | Efficacy (lm/W) | Ra | Voltage (DC) | Power (W/pcs) |
| M1 PRO-1 | W | 6200-6800 | 175° | 59 | 165 | 70+ | 12V | 0.36 |
| M1 PRO-2 | 119 | 0.72 | ||||||
| M1 PRO-3 | 178 | 1.08 | ||||||
| M1 PRO-4 | 238 | 1.44 |
