IP60

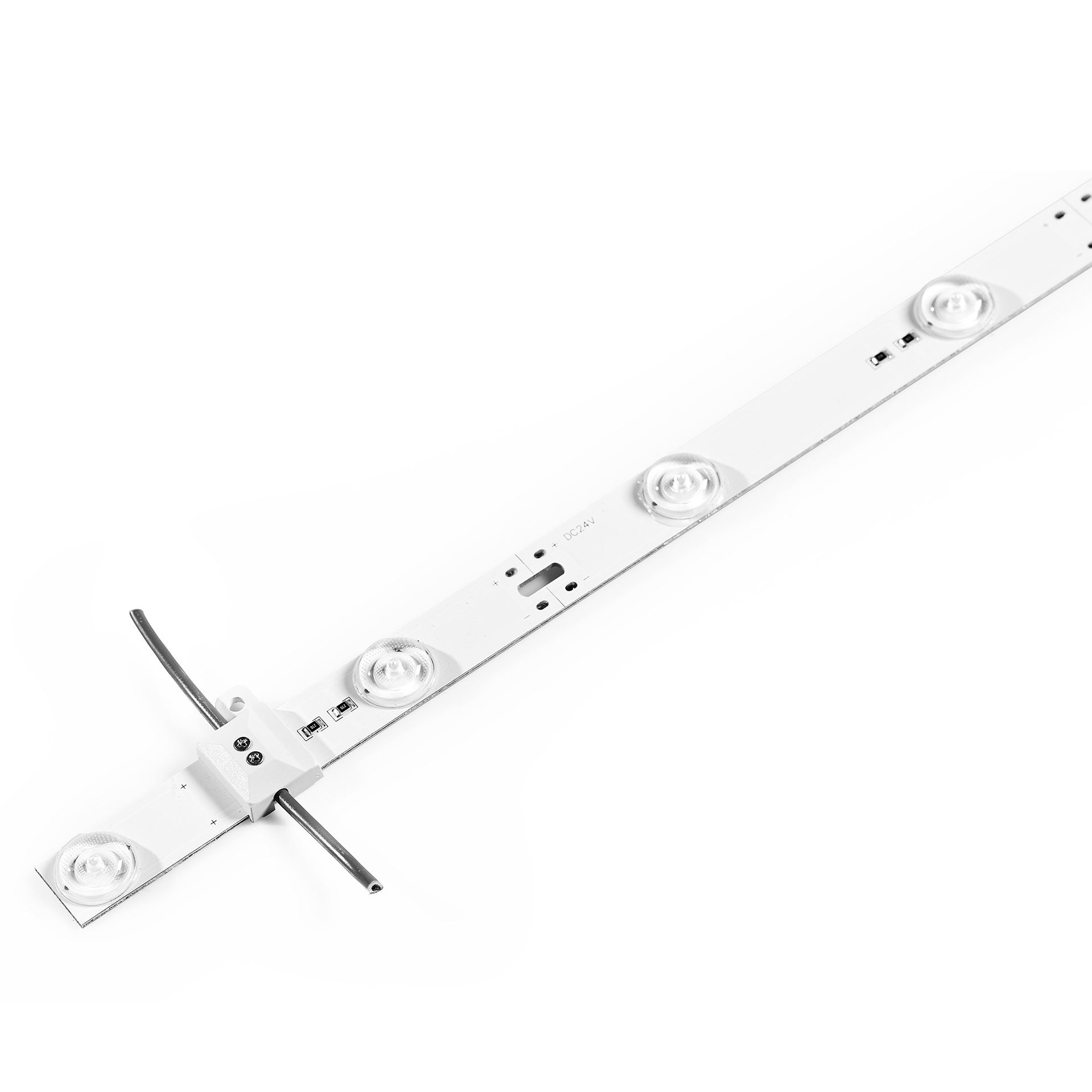

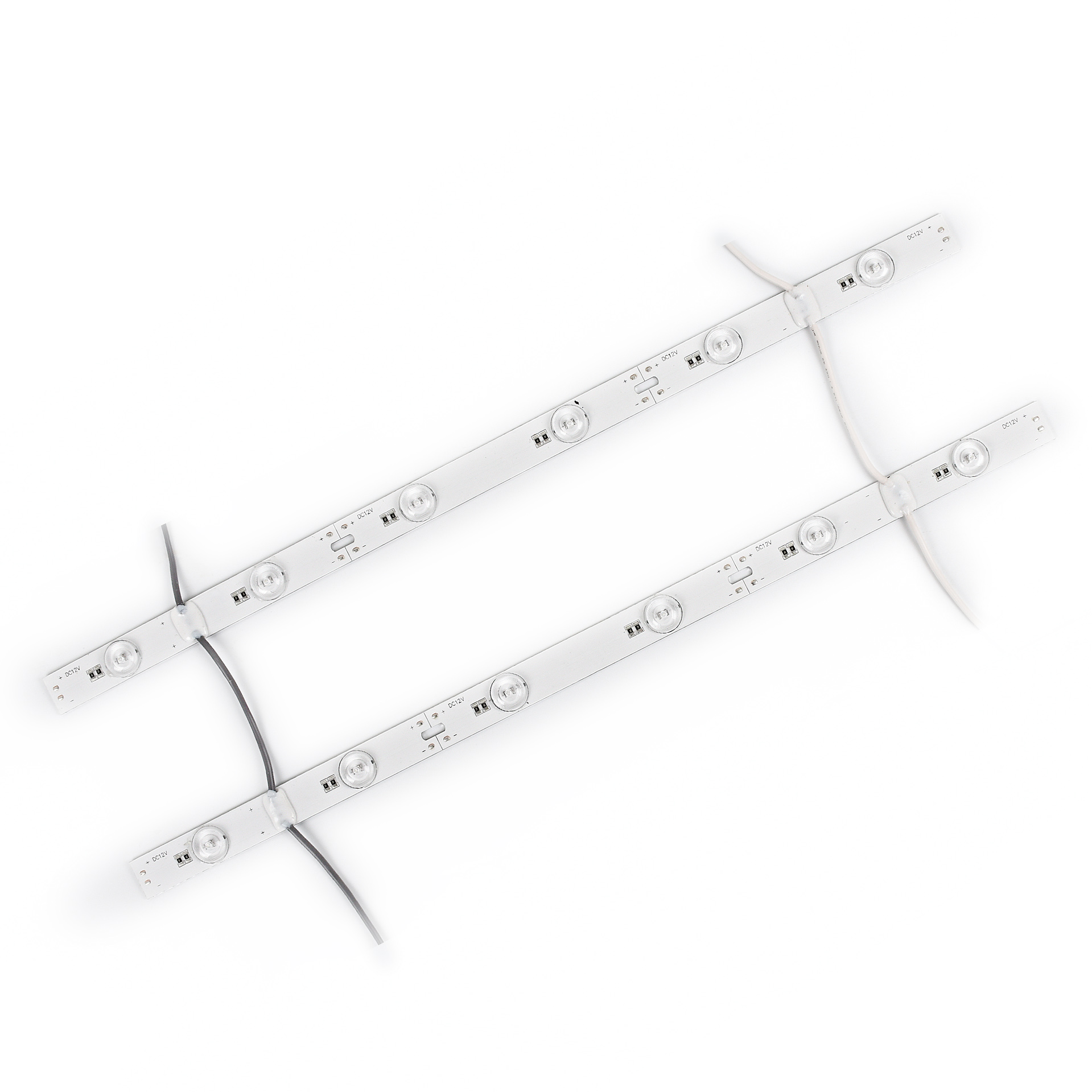

24V Curtain Style Rigid Bar JYD3-A
No: JYD3-A
~816lm/M
9.6W/m
Ra: ≥80
SMD3030
QTY: 8
Light Efficacy: 85lm/W
Run Length:10mm
20mm(W) / 7.3mm(H)
- High efficacy 9V 3030 SMD
- Secondary lens design for uniform light
- Aluminium PCB for excellent heat dissipation
- Curtain style for simple mounting
- Available in 4 specifications
- 3 years warranty
DataSheet
-
JYD3-AView PDF DataSheetNEW

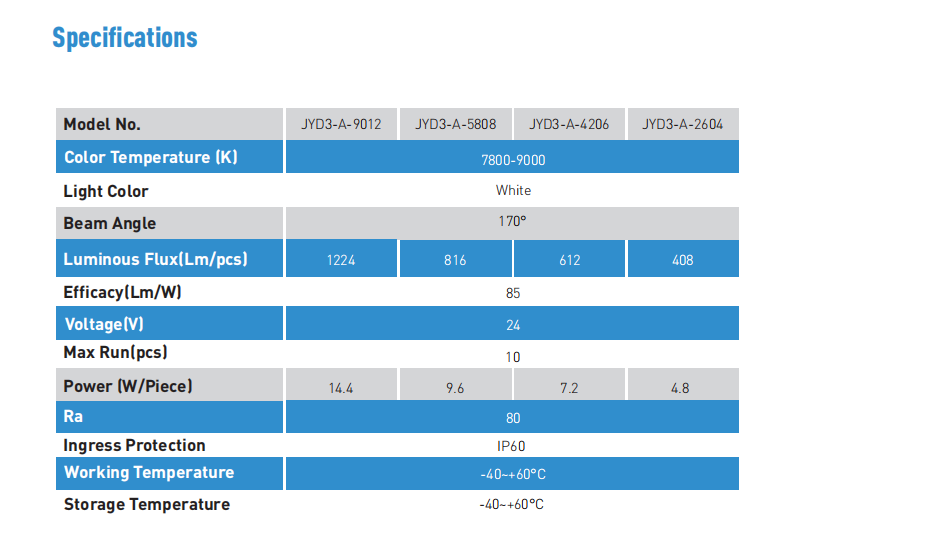

General Parameters 24V Curtain Style Rigid Bar JYD3-A
| Model No. | JYD3-A-9012 | JYD3-A-5808 | JYD3-A-4206 | JYD3-A-2604 |
| Color Temperature (K) | 7800-9000 | |||
| Light Color | White | |||
| Beam Angle | 170° | |||
| Luminous Flux(Lm/pcs) | 1224 | 816 | 612 | 408 |
| Efficacy(Lm/W) | 85 | |||
| Voltage(V) | 24 | |||
| Max Run(pcs) | 10 | |||
| Power (W/Piece) | 14.4 | 9.6 | 7.2 | 4.8 |
| Ra | 80 | |||
| Ingress Protection | IP60 | |||
| Working Temperature | -40~+60°C | |||
| Storage Temperature | -40~+60°C | |||
