IP20
H150-RGBW-FN-F5050-162-24

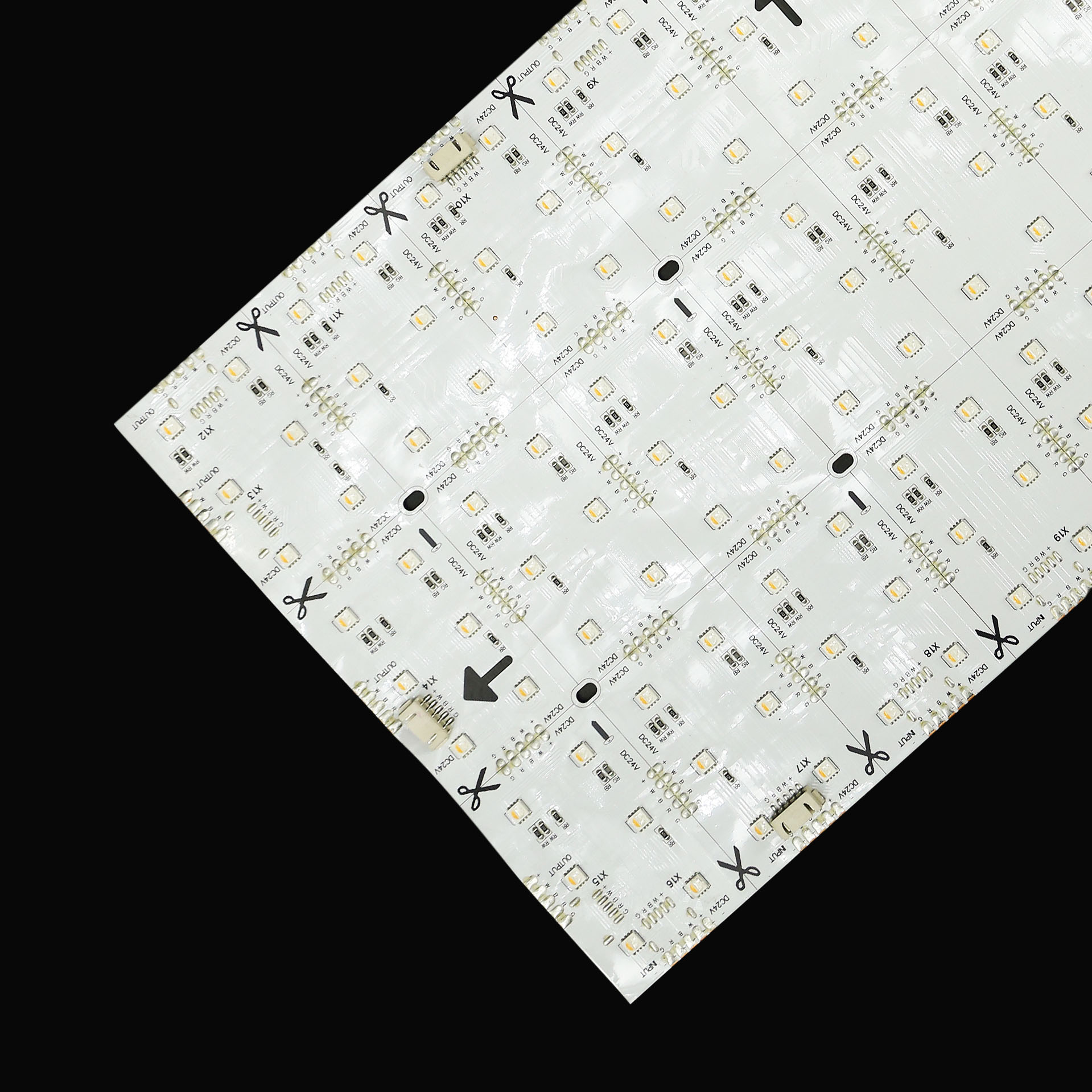

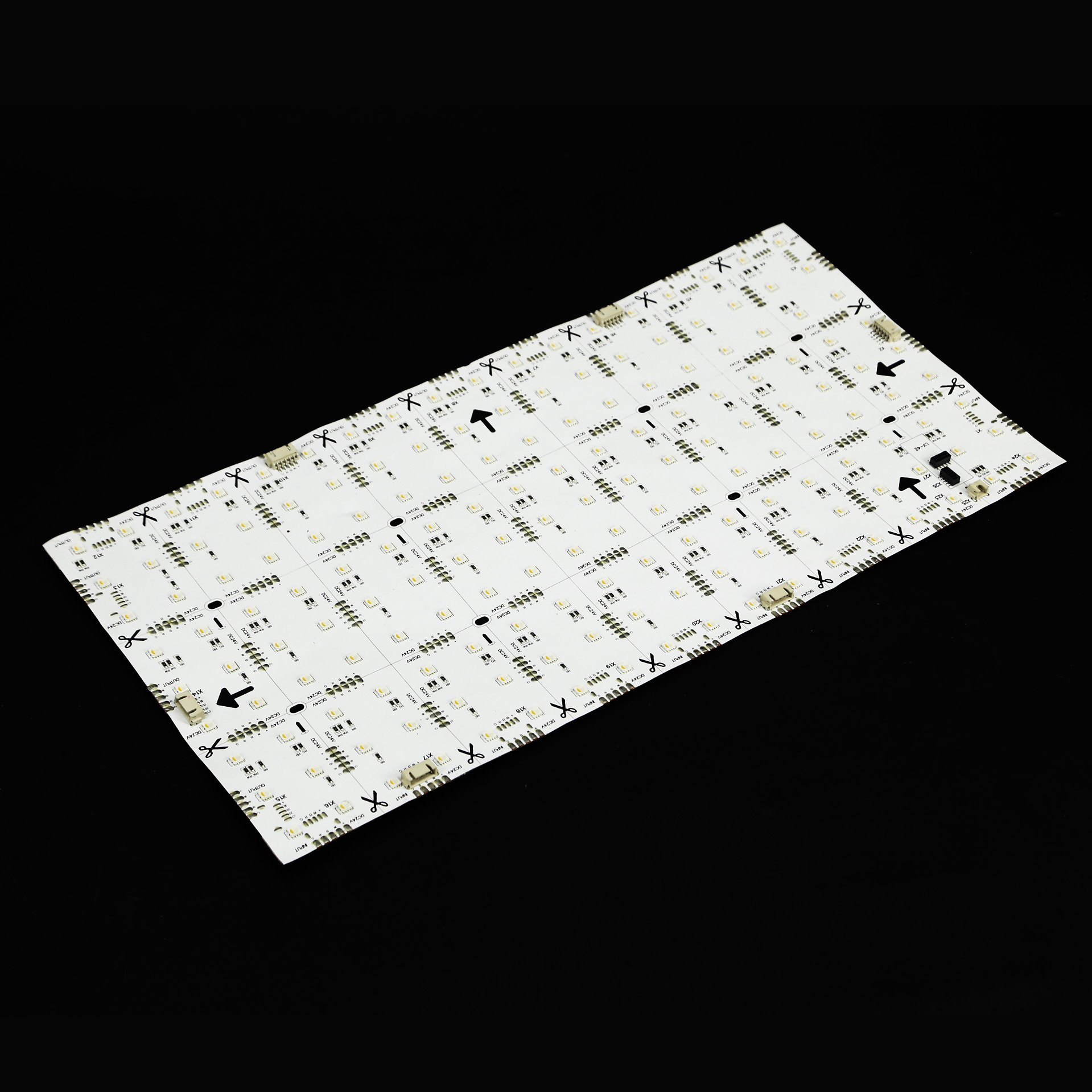

No: H150-RGBW-FN-F5050-162-24
- 4 in 1 with colors of red, green, blue and warm white
- Flexible and cuttable every 80.0*53.3mm
- Long lifespan with great lumen maintenance
- Create rich color changing effect via controller
- Dimmable with PWM technology
DataSheet
-
H150-RGBW-TN-F5050-24vView PDF DataSheet

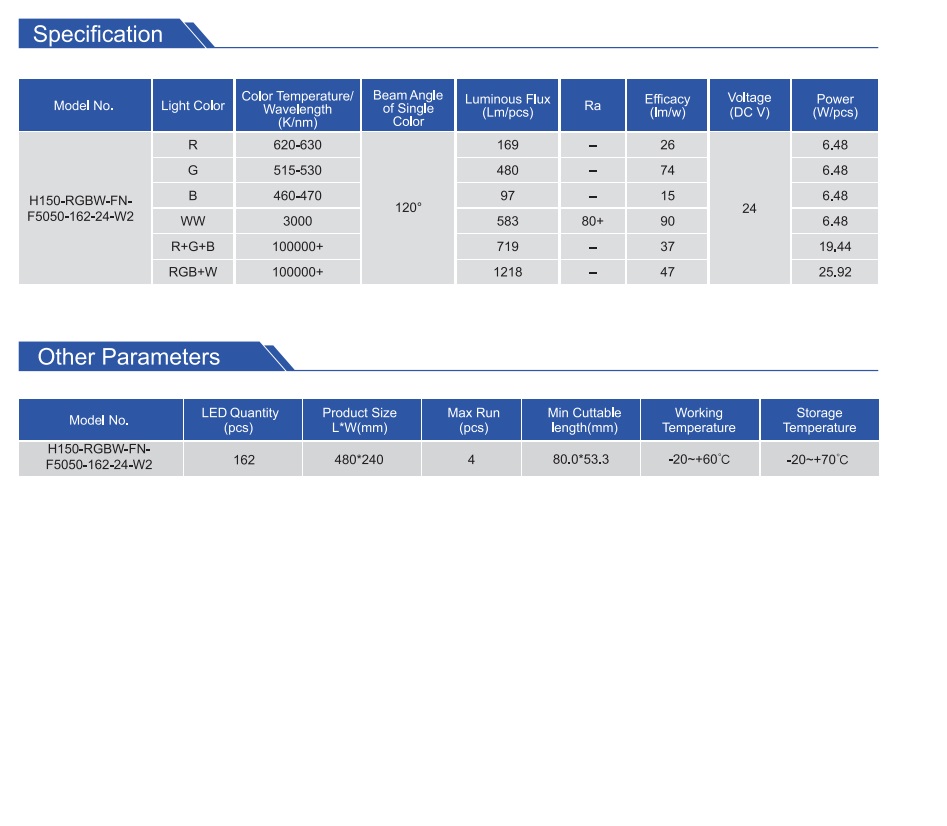

General Parameters H150-RGBW-FN-F5050-162-24
| Model No. | Light Color | Color Temperature/Wavelength (K/nm) | Beam Angle of Single Color | Luminous Flux (Lm/pcs) | Ra | Efficacy (lm/w) | Voltage (DC V) | Power (W/pcs) |
| H150-RGBW-FN-F5050-162-24-W2 | R | 620-630 | 120° | 169 | – | 26 | 24 | 6.48 |
| G | 515-530 | 480 | – | 74 | 6.48 | |||
| B | 460-470 | 97 | – | 15 | 6.48 | |||
| WW | 3000 | 583 | 80+ | 90 | 6.48 | |||
| R+G+B | 100000+ | 719 | – | 37 | 19.44 | |||
| RGB+W | 100000+ | 1218 | – | 47 | 25.92 |
Other Parameters
| Model No. | LED Quantity (pcs) | Product Size L*W(mm) | Max Run (pcs) | Min Cutable length(mm) | Working Temperature | Storage Temperature |
| H150-RGBW-FN-F5050-162-24-W2 | 162 | 480*240 | 4 | 80.0*53.3 | -20~+60°C | -20~+70°C |
