IP20

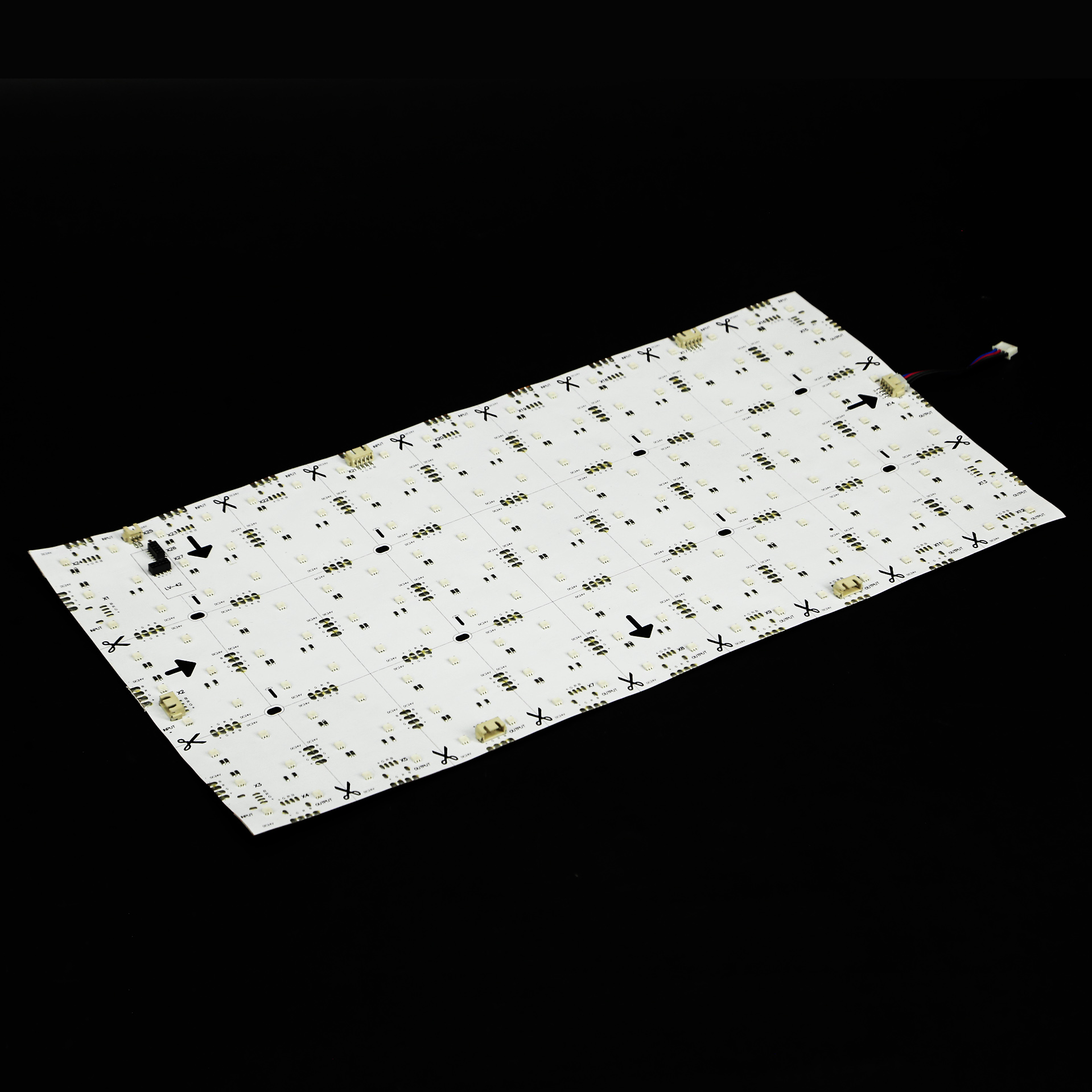

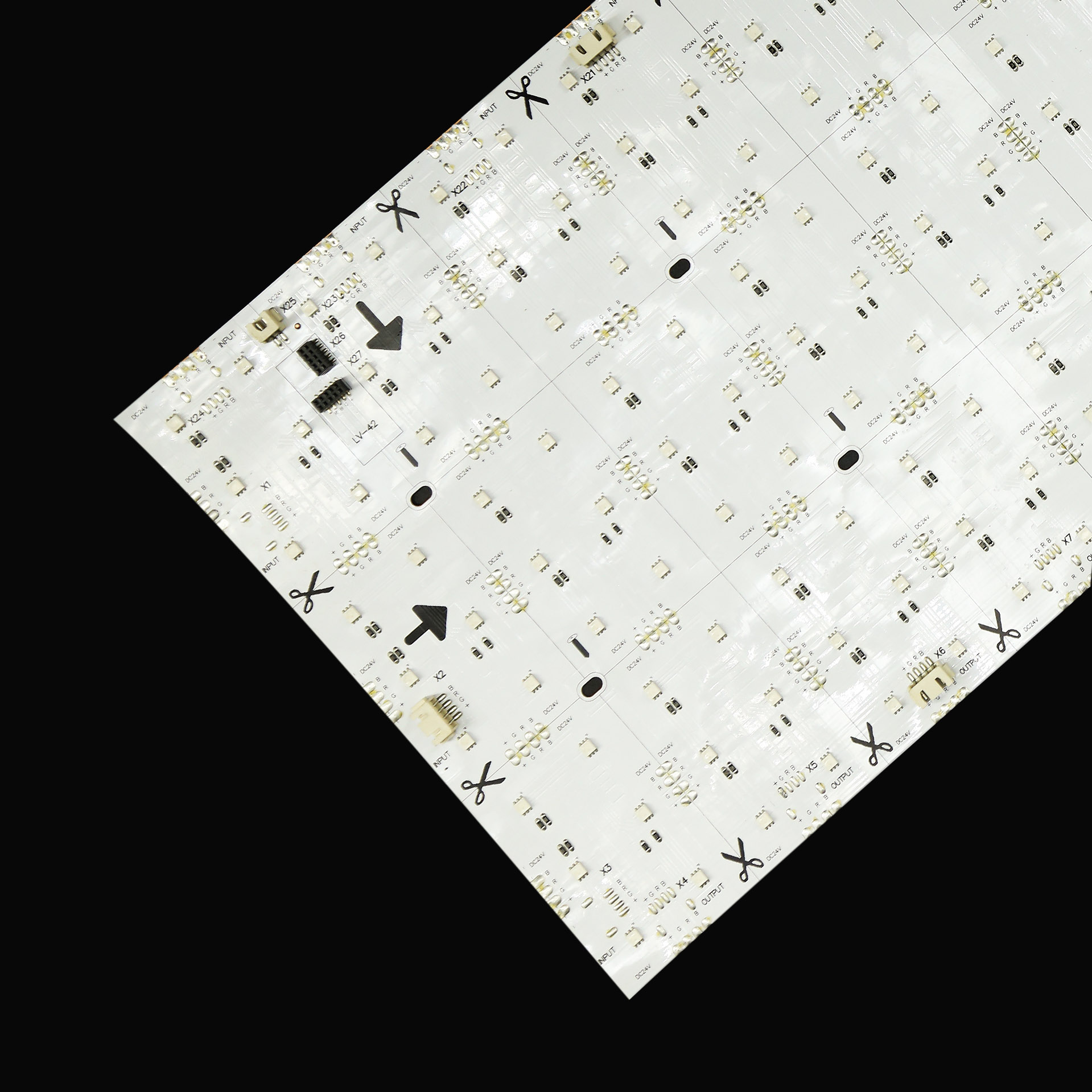

H150-RGB-TN-4040-162-24
No: H150-RGB-TN-4040-162-24
- RGB in one 4040 LED
- Satisfy high density and slim application requirements
- Flexible PCB for proper bending and versatile use
- Flexible and cuttable every 80.0*53.3mm
- Long service life with great lumen maintenance
- Achieve rich lighting effects via controller
- Super slim 3M double-side tape with strong adhesive
DataSheet
-
H150-RGB-TN-4040-24vView PDF DataSheet

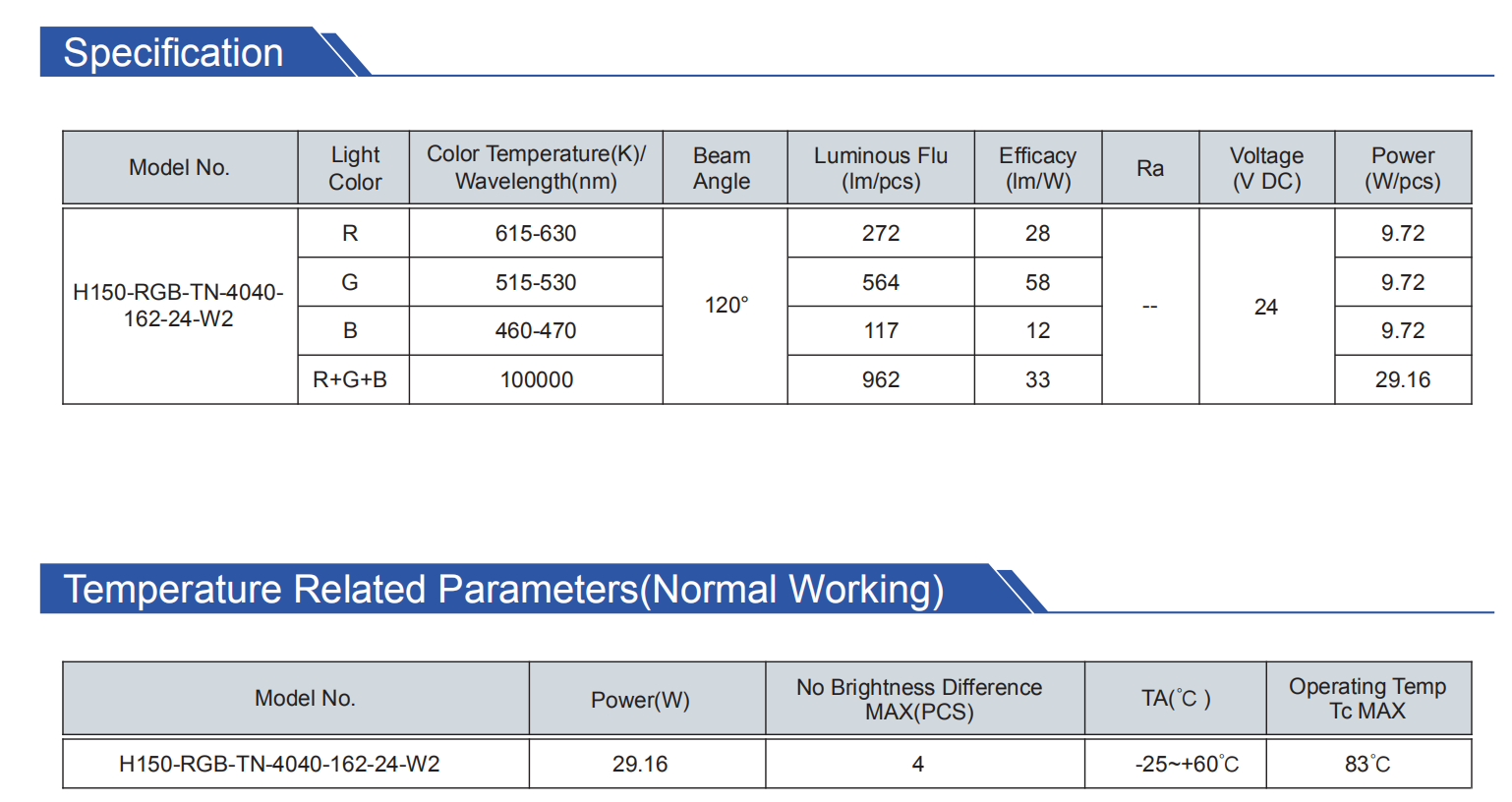

General Parameters H150-RGB-TN-4040-162-24
| Model No. | Light Color | Color Temperature(K)/ Wavelength(nm) | Beam Angle | Luminous Flu (lm/pcs) | Efficacy (lm/W) | Ra | Voltage (V DC) | Power (W/pcs) |
| H150-RGB-TN-4040-162-24-W2 | R | 615-630 | 120° | 272 | 28 | — | 24 | 9.72 |
| G | 515-530 | 564 | 58 | 9.72 | ||||
| B | 460-470 | 117 | 12 | 9.72 | ||||
| R+G+B | 100000 | 962 | 33 | 29.16 |
Temperature Related Parameters(Normal Working)
| Model No. | Power(W) | No Brightness Difference MAX(PCS) | TA(℃) | Operating Temp Tc MAX |
| H150-RGB-TN-4040-162-24-W2 | 29.16 | 4 | -25~+60℃ | 83℃ |
