IP20
H150-D3-DN4040-288-24-W2
No: H150-D3-DN4040-288-24-W2
- Adopt USC5603A IC, 6 LEDs per cutting unit
- Support SPI signal control, PWM dimming is not allowed
- Can create rich light changes via a controller
- Separate power supply and signal input ports
- Multiple specification, support customization
DataSheet
-
H150-D3-DN4040-24vView PDF DataSheet

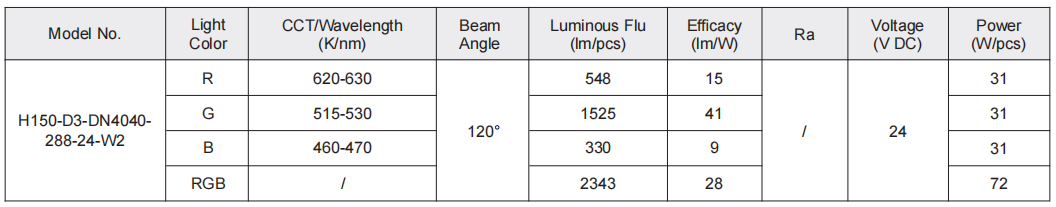

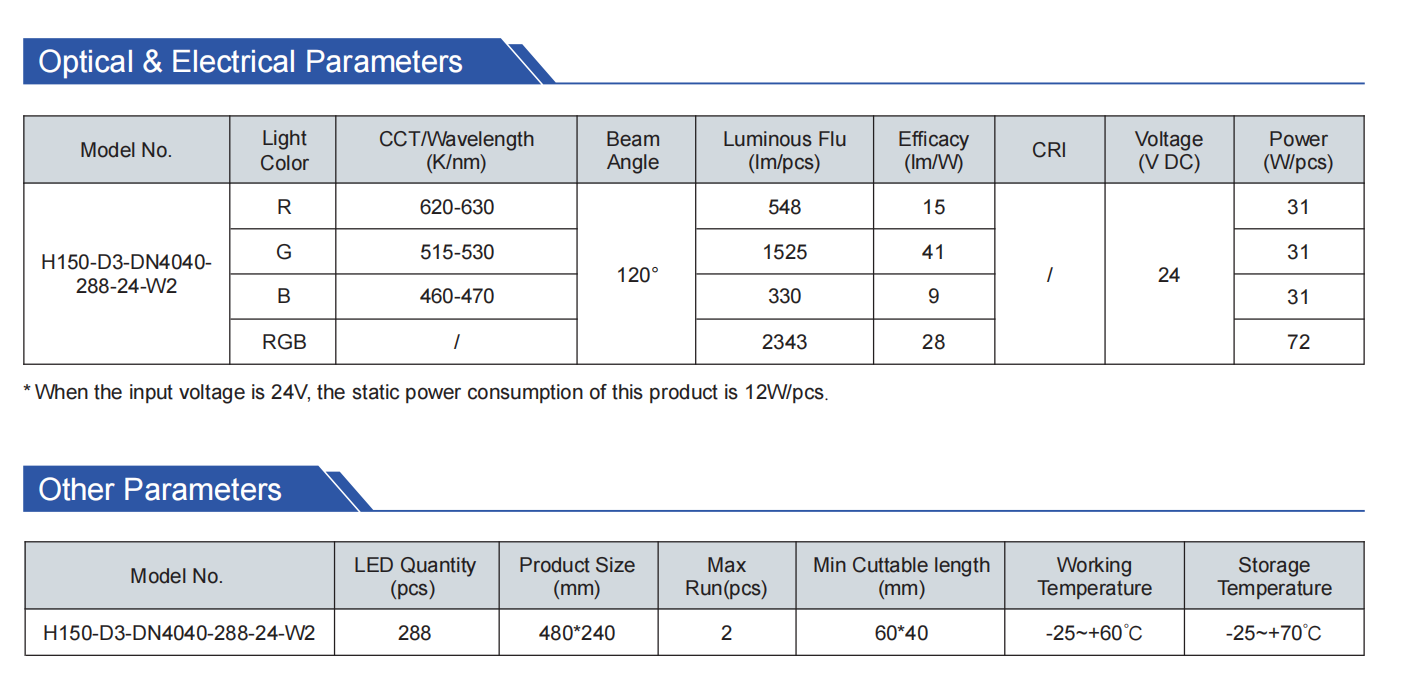

General Parameters H150-D3-DN4040-288-24-W2
| Model No. | Light Color | CCT/Wavelength (K/nm) | Beam Angle | Luminous Flu (lm/pcs) | Efficacy (lm/W) | Ra | Voltage (V DC) | Power (W/pcs) |
| H150-D3-DN4040-288-24-W2 | R | 620-630 | 120° | 548 | 15 | / | 24 | 31 |
| G | 515-530 | 1525 | 41 | 31 | ||||
| B | 460-470 | 330 | 9 | 31 | ||||
| RGB | / | 2343 | 28 | 72 |
