IP65

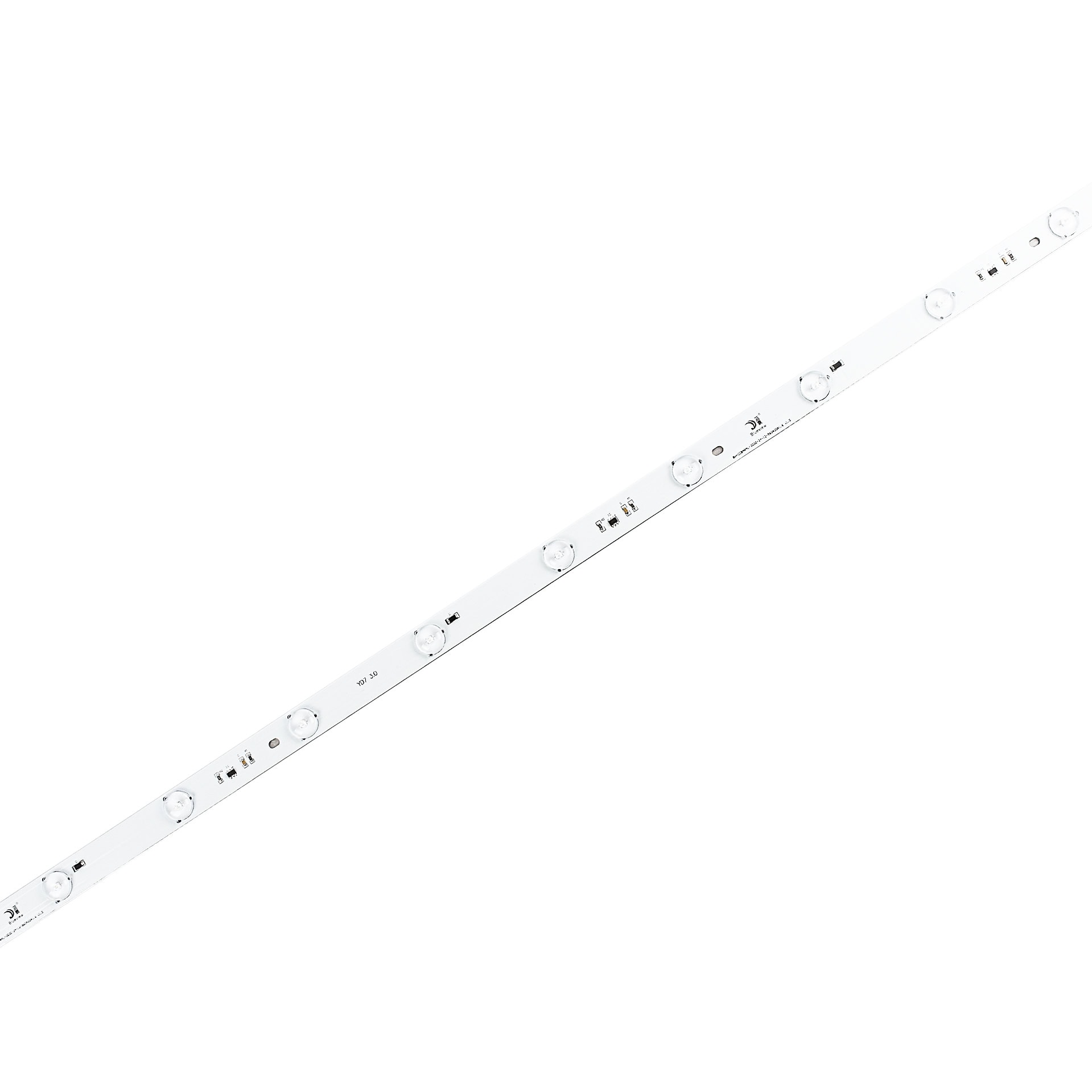

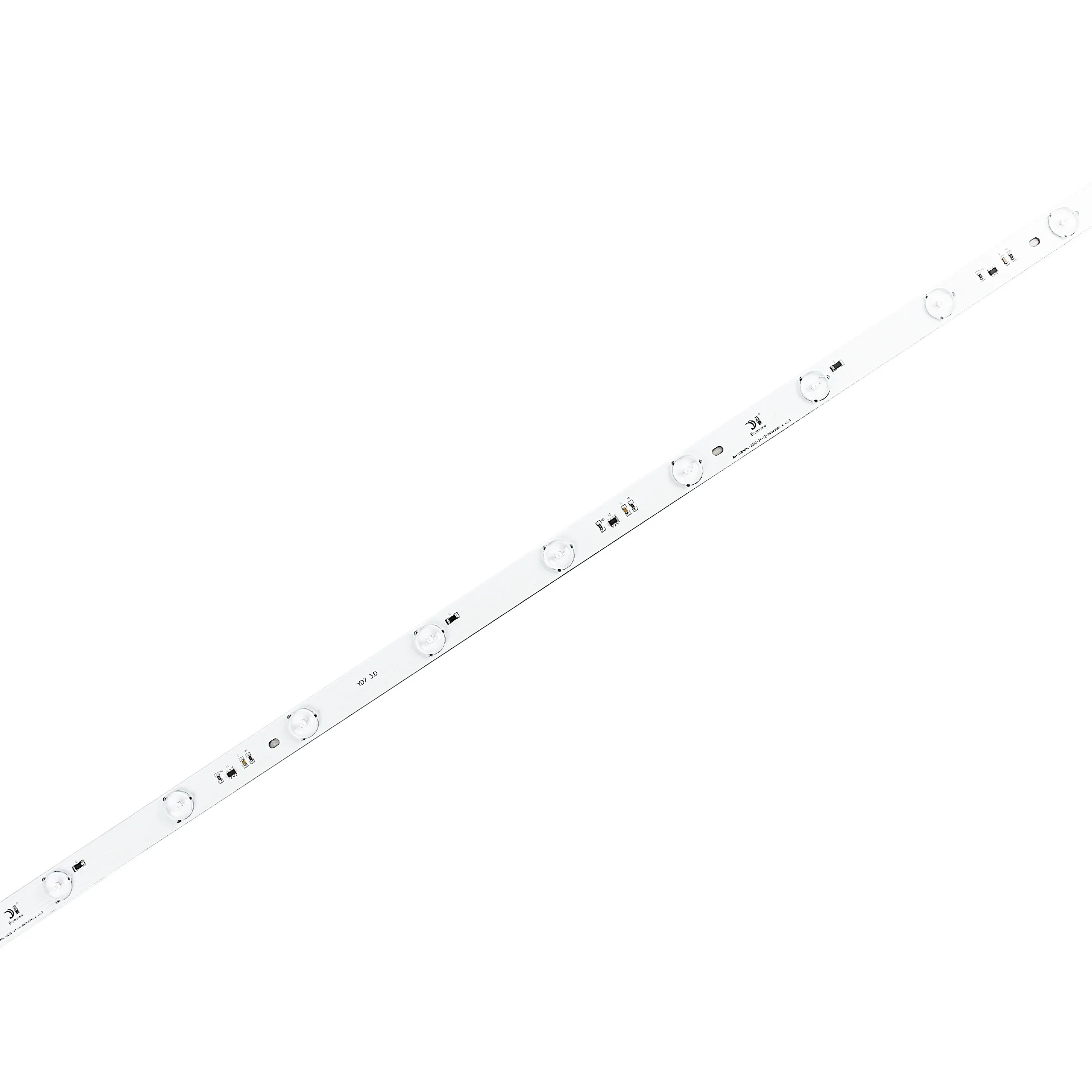

24V Back Light Rigid Bar FYD7 3.0
No: FYD7 3.0

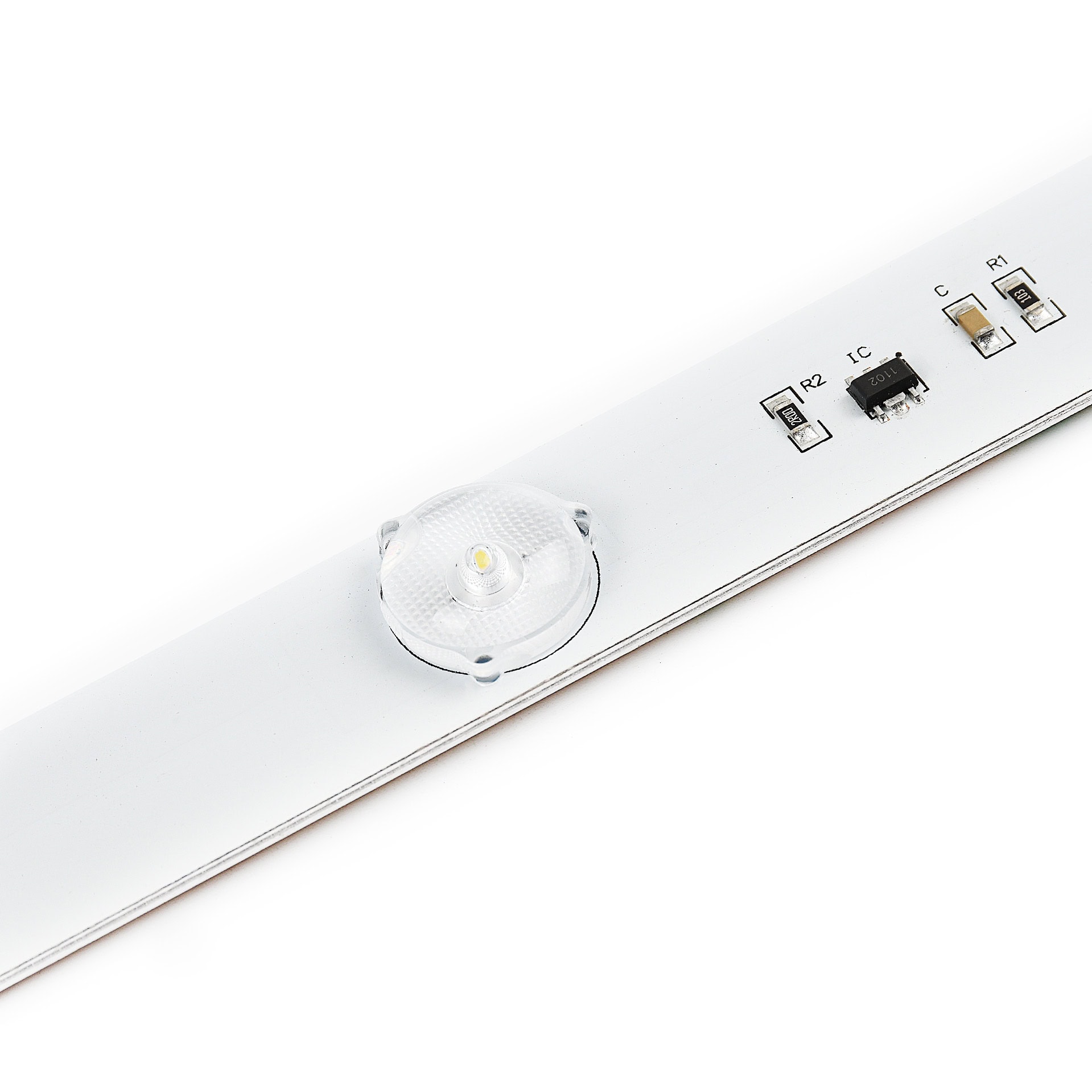

- Nichia LED with Vf=6V, high-power 1W, 3030 package
- Aluminum PCB adopted,for better heat diffusion
- Good Back light source with high brightness and uniform light
- Reversed polarity connect protection, no damage to bar if positive and negative connection reversed
- Adopt WOGO 2060 connector or AMPR connector(Female/male), more convenient for installation
- Constant current IC: Ensure the stability of the product performance and less brightness decay
DataSheet
-
FYD7 3.0View PDF DataSheetNEW

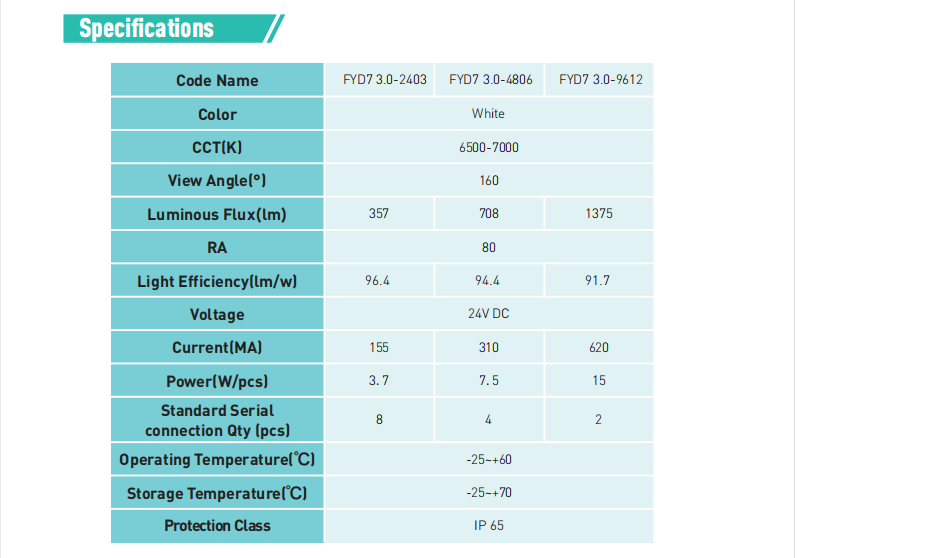

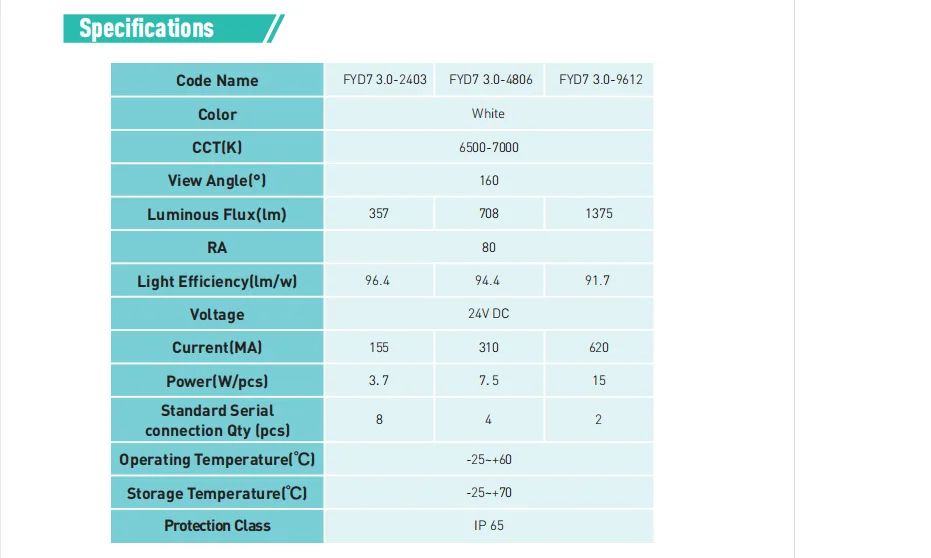

General Parameters 24V Back Light Rigid Bar FYD7 3.0
| Code Name | FYD7 3.0-2403 | FYD7 3.0-4806 | FYD7 3.0-9612 |
| Color | White | ||
| CCT(K) | 6500-7000 | ||
| View Angle(°) | 160 | ||
| Luminous Flux(lm) | 357 | 708 | 1375 |
| RA | 80 | ||
| Light Efficiency(lm/w) | 96.4 | 94.4 | 91.7 |
| Voltage | 24V DC | ||
| Current(MA) | 155 | 310 | 620 |
| Power(W/pcs) | 3.7 | 7.5 | 15 |
| Standard Serial connection Qty (pcs) | 8 | 4 | 2 |
| Operating Temperature(℃) | -25-+60 | ||
| Storage Temperature(℃) | -25-+70 | ||
| Protection Class | IP 65 | ||
