IP20

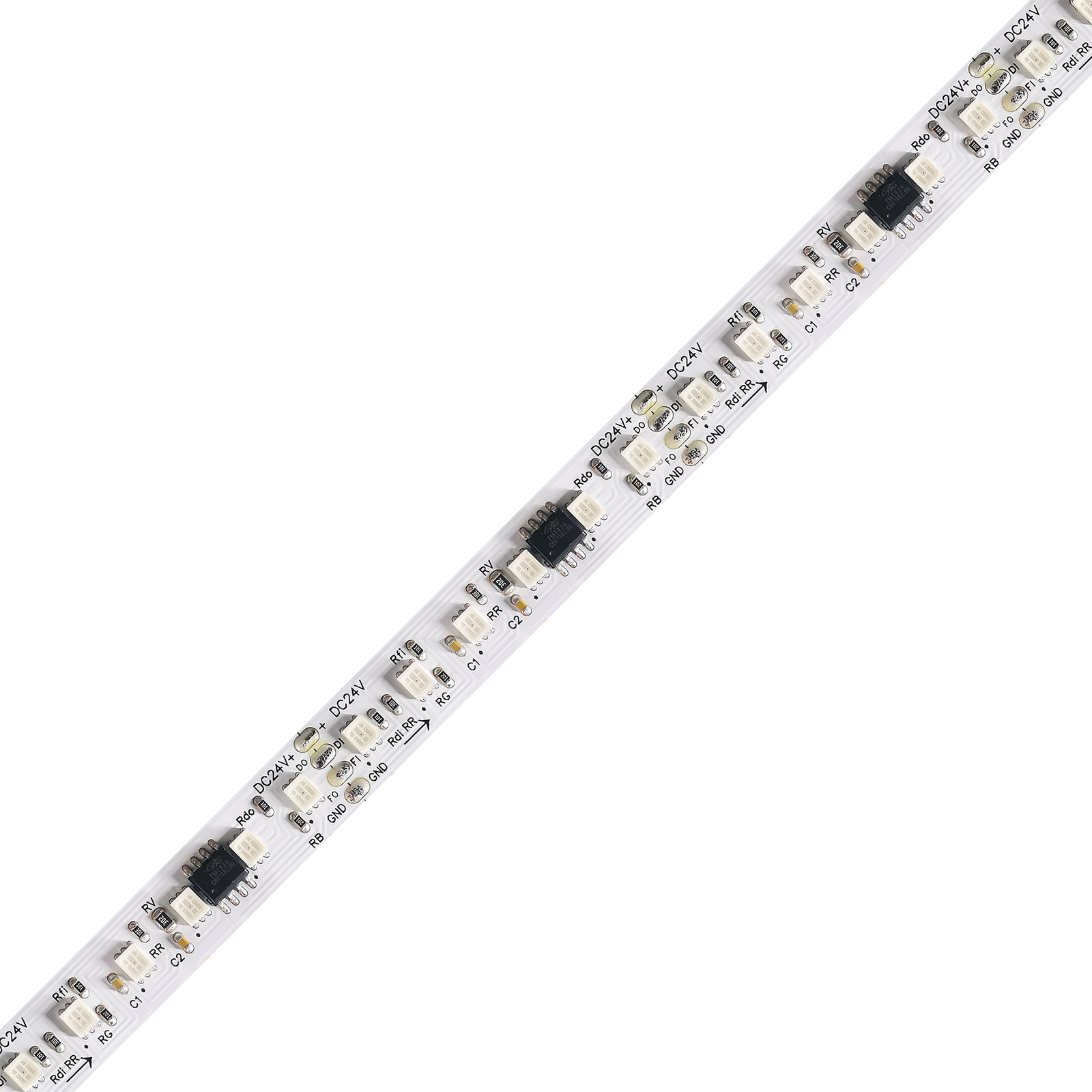

24V Digital Single LED Control RGB Strip
No: DN-N5-120-24-RGB-DD
~435lm/M
12.24W/m
SMD5050
QTY: 120
Light Efficacy: 35.6lm/W
Run Length:3mm
10mm(W) / 2.2mm(H)
- Adopt flexible FPC material, with stable performance;
- Pre-cut marks for easy on-site trimming and installation;
- With an external controllers, to achieve a variety of lighting effects
- like colors chasing,racing, flowing;
- Low light attenuation, long lifespan;
- Each LED can be controlled individually.
DataSheet
-
DN-N5-120-24-RGB-DDView PDF DataSheet

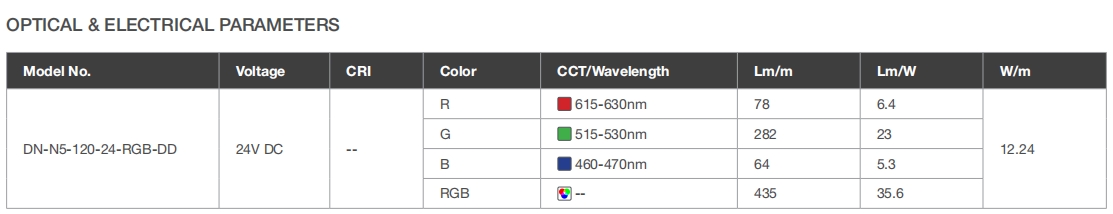

General Parameters 24V Digital Single LED Control RGB Strip
| Model No. | Voltage | CRI | Color | CCT/Wavelength | Lm/m | Lm/W | W/m |
| DN-N5-120-24-RGB-DD | 24V DC | — | R | 615-630nm | 78 | 6.4 | 12.24 |
| G | 515-530nm | 282 | 23 | ||||
| B | 460-470nm | 64 | 5.3 | ||||
| RGB | — | 435 | 35.6 |
