IP67
CS8-A
No: CS8-A
- Bright lens RGB LED module with special design
- IP67 perfect for outdoor use
- Long distance signal transmission without signal distortion or weakness
- PWM signal,256 grades brighness controllable
- Single-line three-channel LED constant current drive, the external controller can control the chip with single line The signal transmission will resume from break point
- Support multiple controllers to realize various light effects
DataSheet
-
CS8-AView PDF DataSheet

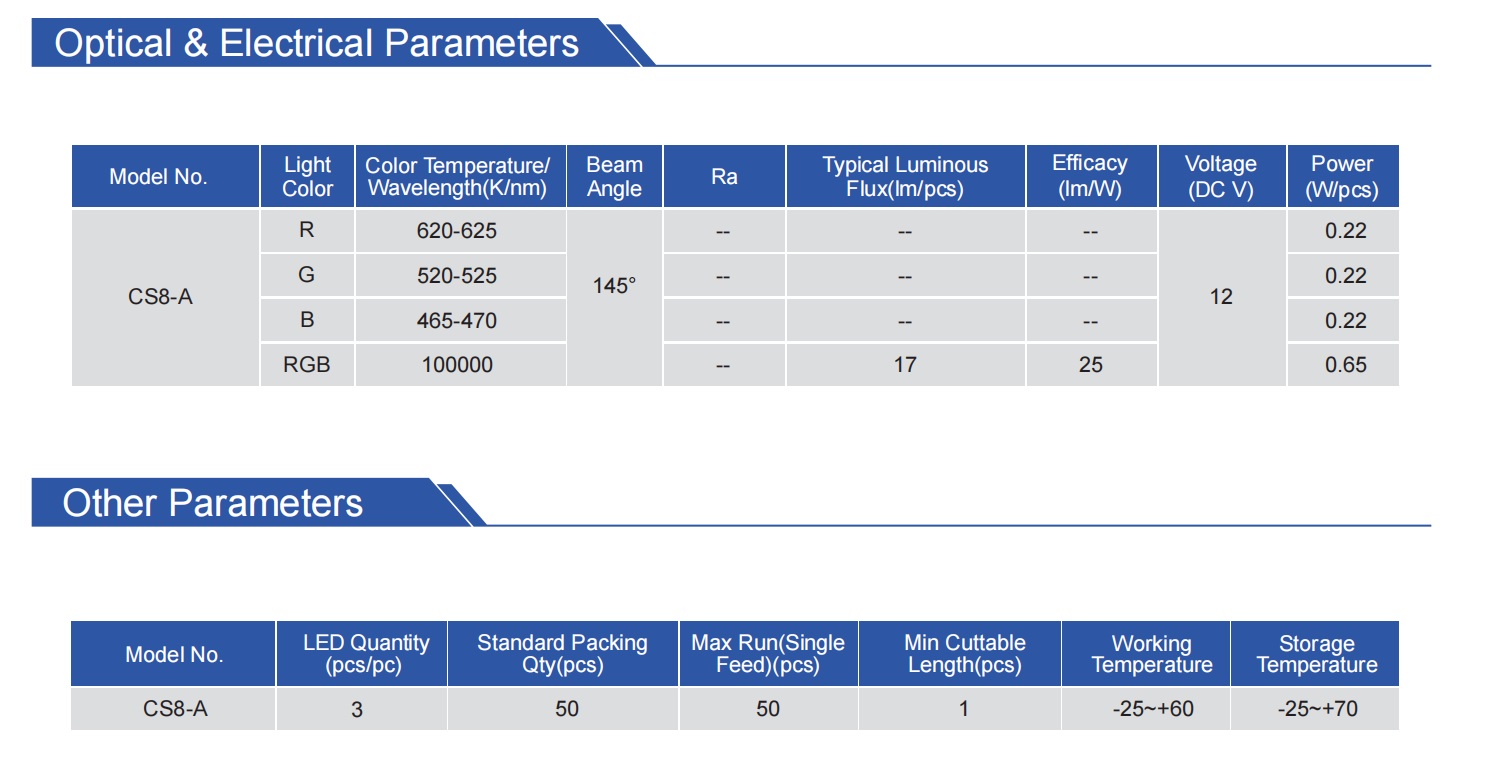

General Parameters CS8-A
| Model No. | Light Color | Color Temperature/Wavelength(K/nm) | Beam Angle | Ra | Typical Luminous Flux(lm/pcs) | Efficacy (lm/W) | Voltage (DC V) | Power (W/pcs) |
| CS8-A | R | 620-625 | 145° | — | — | — | 12 | 0.22 |
| G | 520-525 | — | — | — | 0.22 | |||
| B | 465-470 | — | — | — | 0.22 | |||
| RGB | 100000 | — | 17 | 25 | 0.65 |
Other Parameters
| Model No. | LED Quantity (pcs/pc) | Standard Packing Qty(pcs) | Max Run(Single Feed)(pcs) | Min Cuttable Length(pcs) | Working Temperature | Storage Temperature |
| CS8-A | 3 | 50 | 50 | 1 | -25~+60 | -25~+70 |
