IP68
CS20
No: CS20
- Large luminous surface, give out light evenly
- Adopt PC colored shell and specially designed optical lens
- Elastic buckle design, suitable for mounting board of 1-3mm
- Glue injection process, great waterproof performance
- Single module can be cut
- Support PWM, 0-10V, DALI and DMX dimming
DataSheet
-
CS20View PDF DataSheet

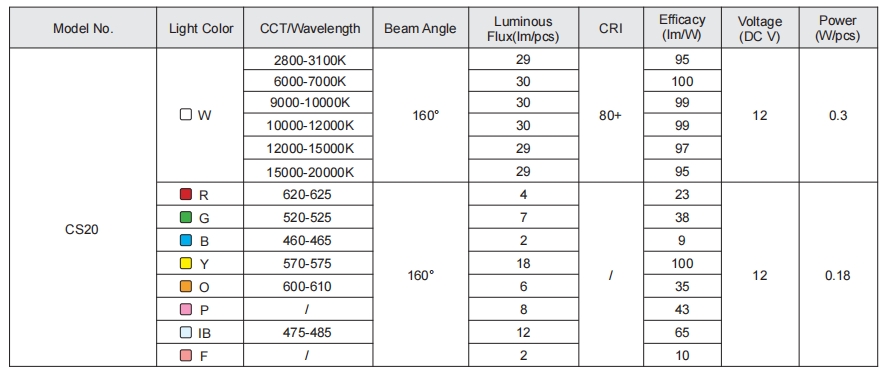

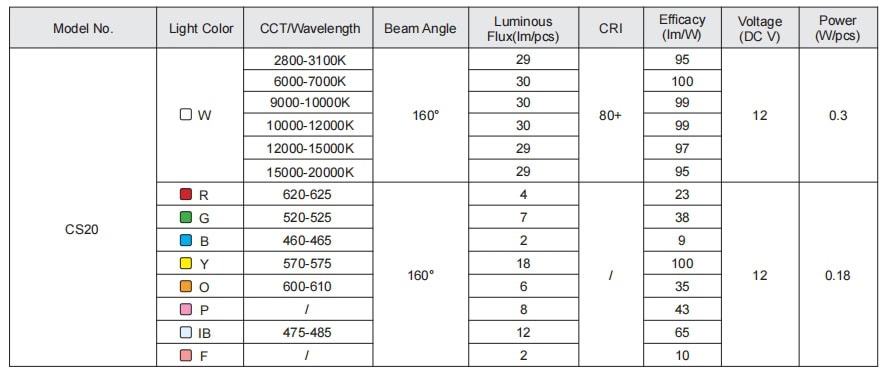

General Parameters CS20
| Model No. | Light Color | CCT/Wavelength | Beam Angle | Luminous Flux(lm/pcs) | CRI | Efficacy (lm/W) | Voltage (DC V) | Power (W/pcs) |
| CS20 | W | 2800-3100K | 160° | 29 | 80+ | 95 | 12 | 0.3 |
| 6000-7000K | 30 | 100 | ||||||
| 9000-10000K | 30 | 99 | ||||||
| 10000-12000K | 30 | 99 | ||||||
| 12000-15000K | 29 | 97 | ||||||
| 15000-20000K | 29 | 95 | ||||||
| R | 620-625 | 160° | 4 | / | 23 | 12 | 0.18 | |
| G | 520-525 | 7 | 38 | |||||
| B | 460-465 | 2 | 9 | |||||
| Y | 570-575 | 18 | 100 | |||||
| O | 600-610 | 6 | 35 | |||||
| P | / | 8 | 43 | |||||
| IB | 475-485 | 12 | 65 | |||||
| F | / | 2 | 10 |
