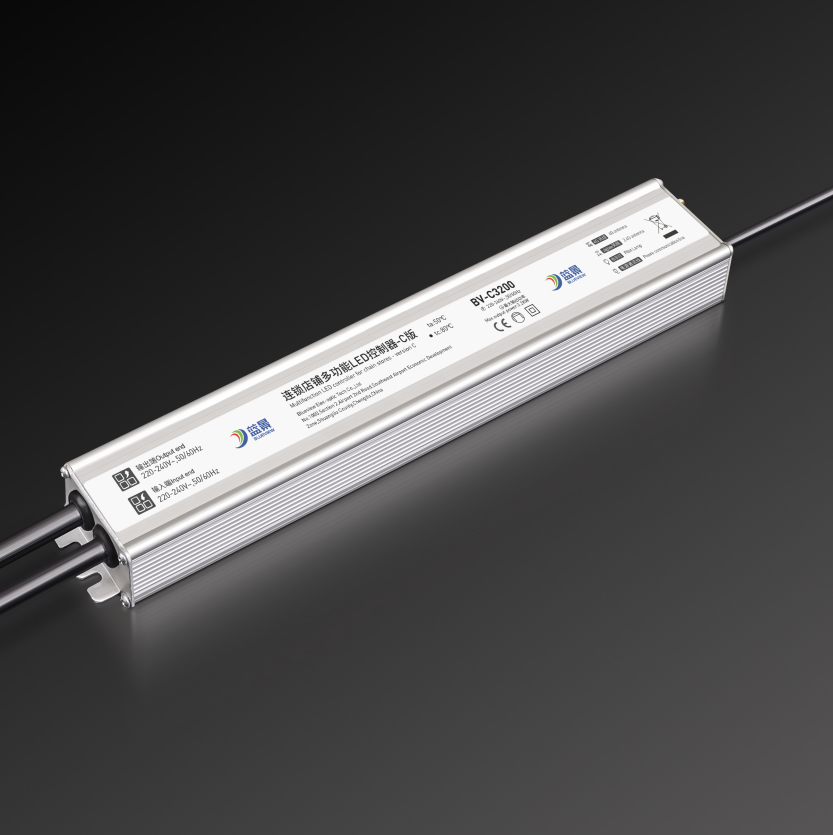

BV-C3200 Multi-function LED Controller-Version C
No: BV-C3200 Multi-function LED Controller-Version C
- Highly integrated device and cost-effective
- Power on and play, support website and Phone APP control;
- Max output 3.2KW/pc, with built-in 3-year 4G data;
- Yearly/monthly/daily electricity consumption can be counted;
- Power failure detection, device offline alarm, power abnormality alarm and etc;
- Can be connected to a light sensor to adjust the brightness of the light;
- Directly connected to the base station with high stability and supports remote system upgrades;
DataSheet
-
BV-C3200 Multi-function LED ControllerView PDF DataSheet

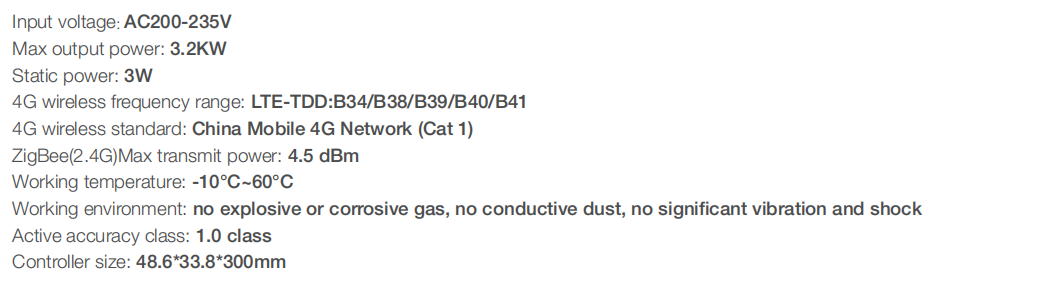

General Parameters BV-C3200 Multi-function LED Controller-Version C
| Input voltage: AC200-235V |
| Max output power: 3.2KW |
| Static power:3W |
| 4G wireless frequency range: LTE-TDD:B34/B38/B39/B40/B41 |
| 4G wireless standard: China Mobile 4G Network(Cat 1) |
| ZigBee(2.4G)Max transmit power: 4.5 dBm |
| Working temperature:-10℃~60℃ |
| Working environment: no explosive or corrosive gas, no conductive dust, no significant vibration and shock |
| Active accuracy class: 1.0 class |
| Controller size: 48.6*33.8*300mm |
