IP20

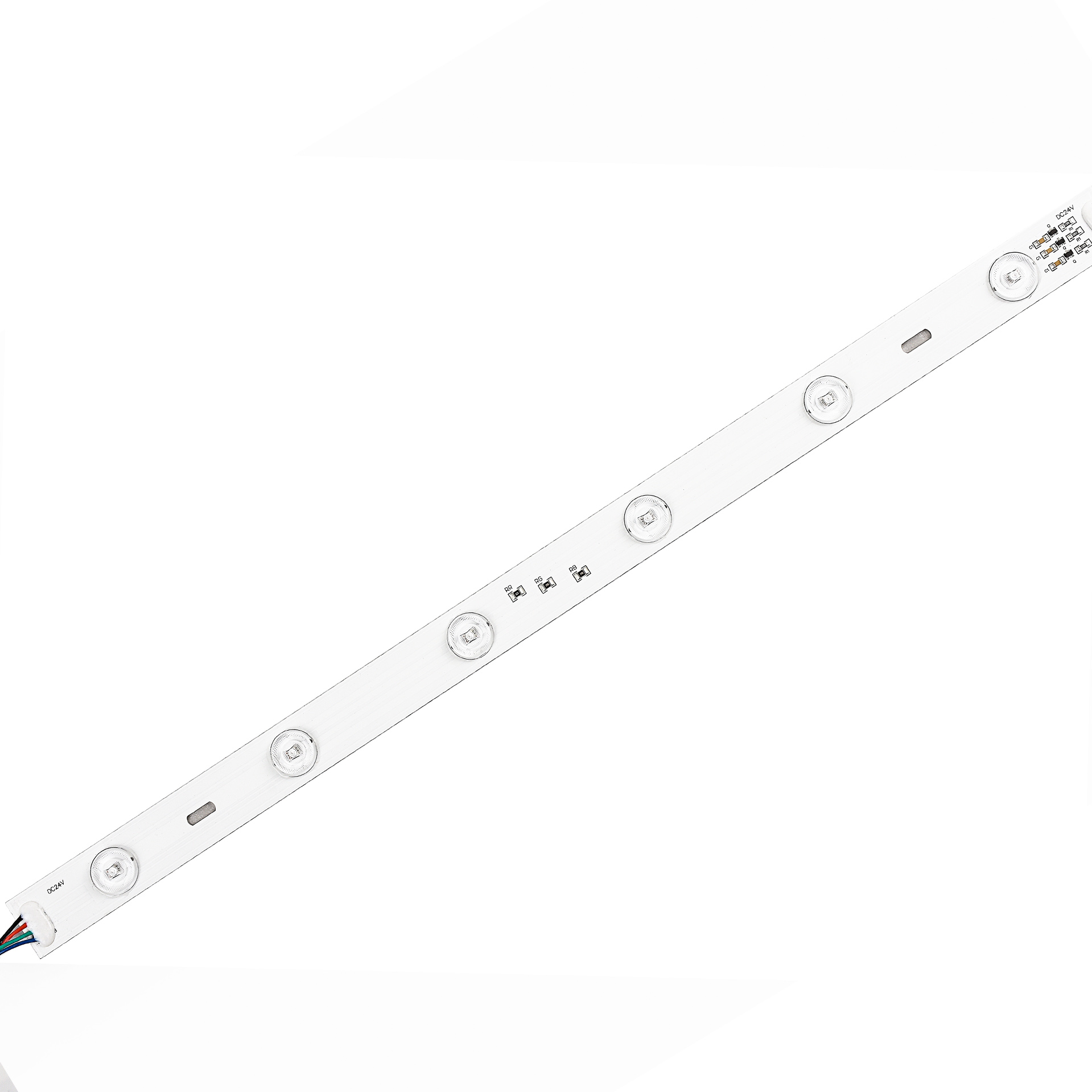

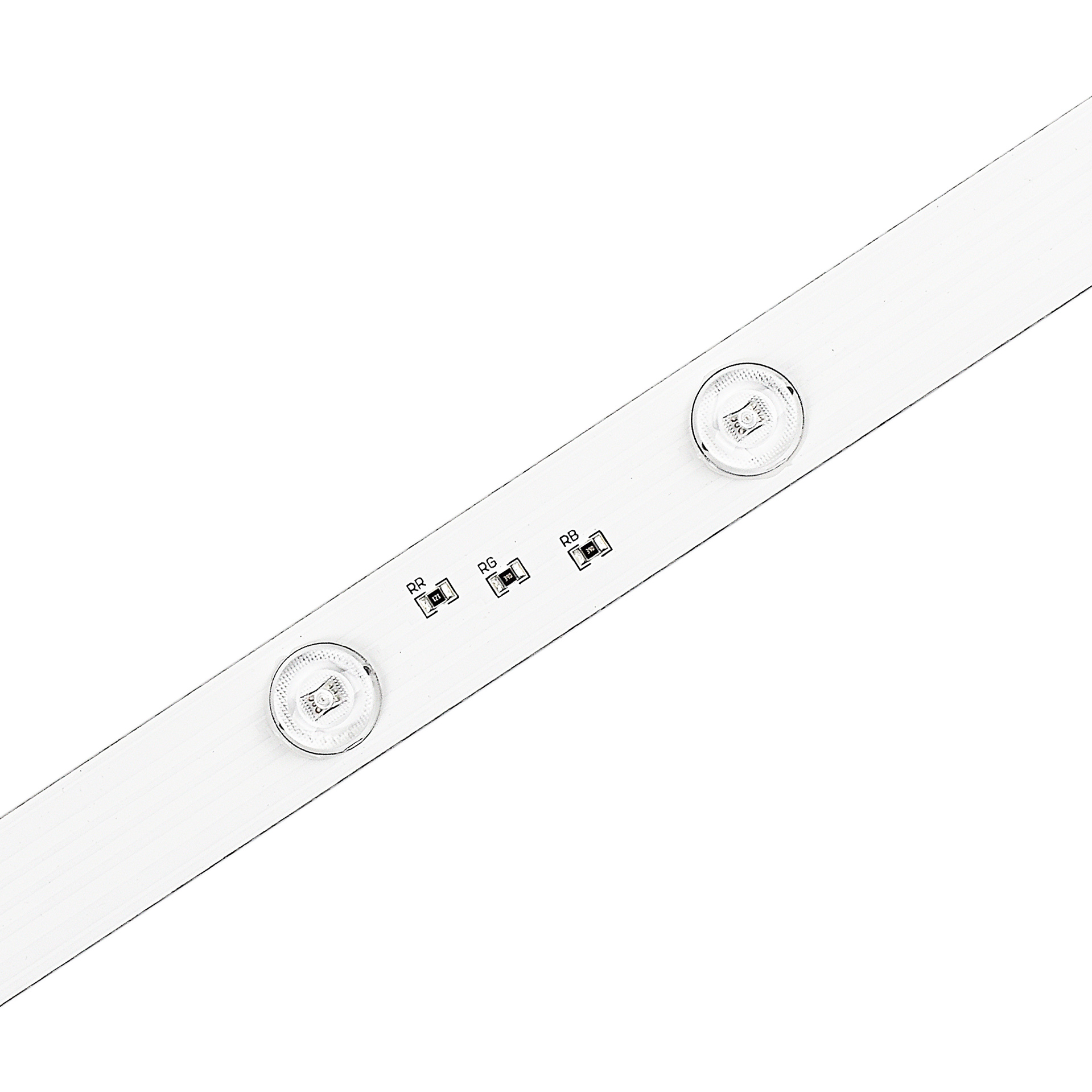

BQ5-A RGB
No: BQ5-A RGB
- Adopt RGB in one 2830 LED
- Good color-mixing effect and stability
- Special lens with 170° beam angle, suitable for thin light box
- Create rich color changing effect via controller
- Adopt standard terminals for easy usage
DataSheet
-
BQ5-AView PDF DataSheet

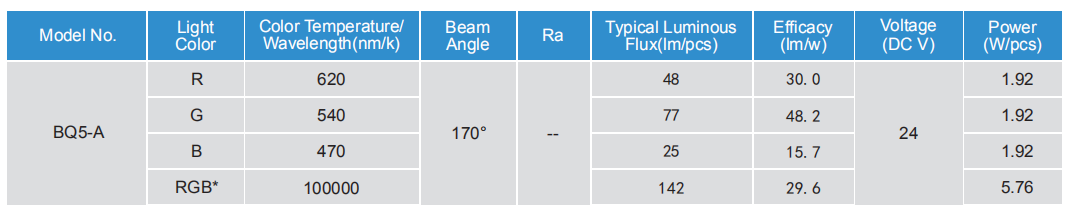

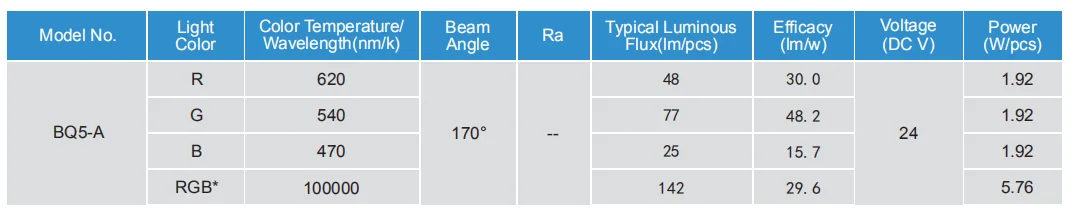

General Parameters BQ5-A RGB
| Model No. | Light Color | Color Temperature/Wavelength(nm/k) | Beam Angle | Ra | Typical Luminous Flux(lm/pcs) | Efficacy (lm/w) | Voltage (DC V) | Power (W/pcs) |
| BQ5-A | R | 620 | 170° | — | 48 | 30.0 | 24 | 1.92 |
| G | 540 | 77 | 48.2 | 1.92 | ||||
| B | 470 | 25 | 15.7 | 1.92 | ||||
| RGB* | 100000 | 142 | 29.6 | 5.76 |
