IP20

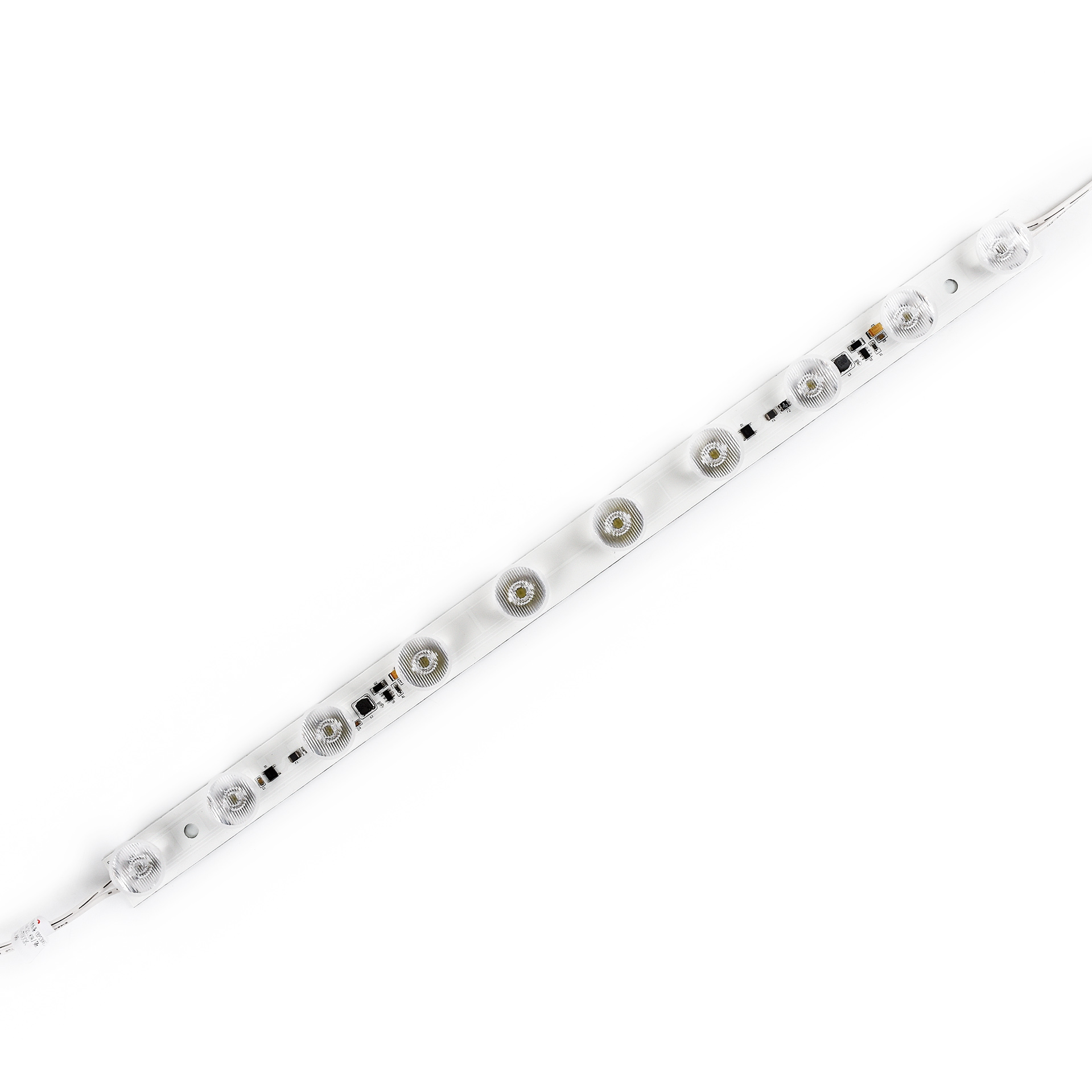

24V Edge-lit High Brightness Rigid Bar BPS300
No: BPS300
~1620lm/M
21.6W/m
Ra: ≥70
SMD3535
QTY: 10
Light Efficacy: 75lm/W
Run Length:3mm
25mm(W) / 13.5mm(H)

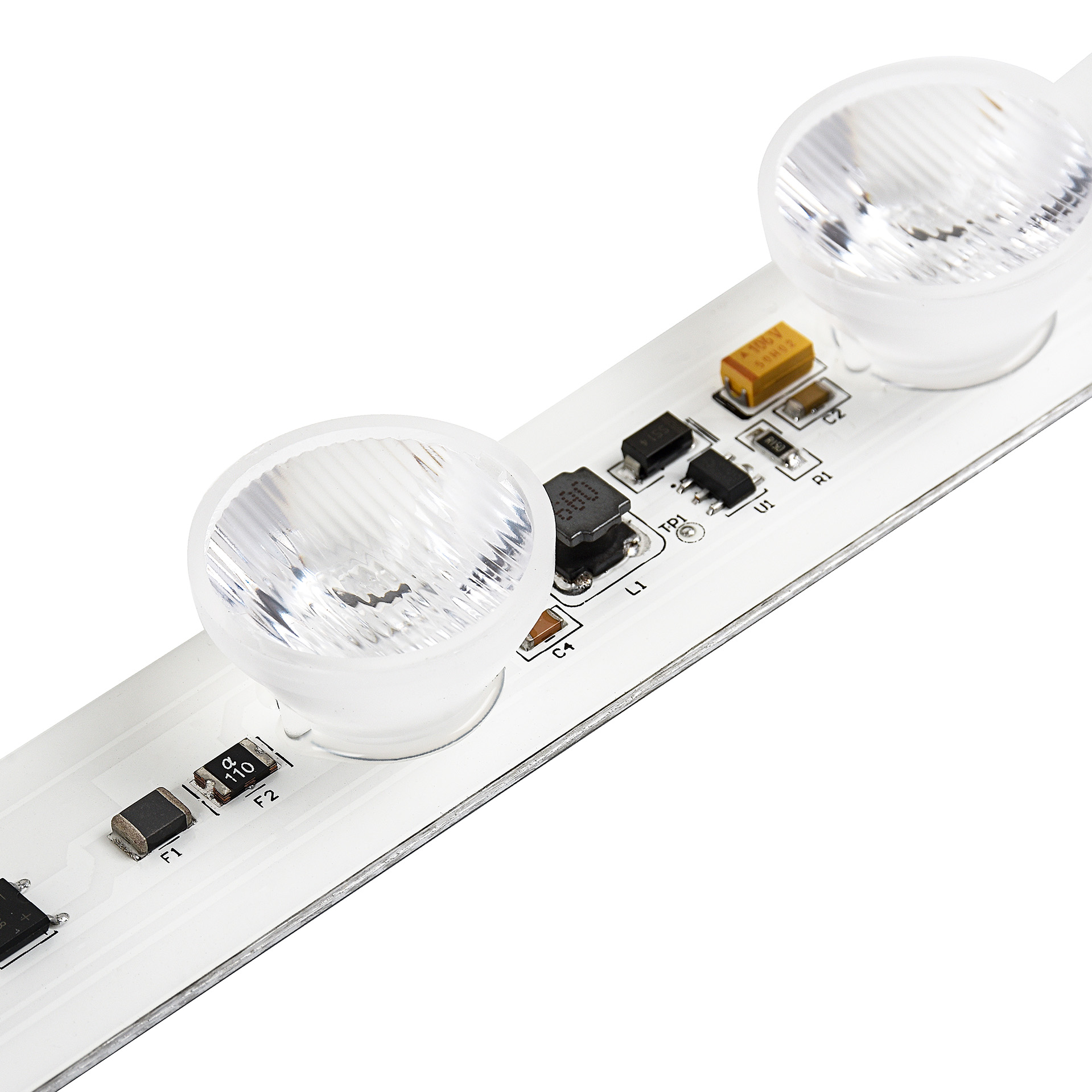

- Adopt high quality 3535 LED
- High brightness of single bar
- Secondary optical lens for uniform light
- Stable and reliable performance, easy installation
- 5 years Warranty
- Dimming is not supported
DataSheet
-
BPS300View PDF DataSheet

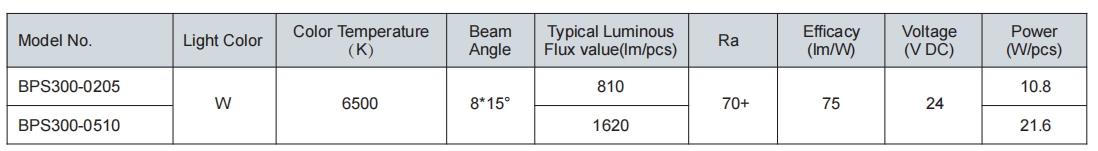

General Parameters 24V Edge-lit High Brightness Rigid Bar BPS300
| Model No. | Light Color | Color Temperature (K) | Beam Angle | Typical Luminous Flux value(lm/pcs) | Ra | Efficacy (lm/W) | Voltage (V DC) | Power (W/pcs) |
| BPS300-0205 | W | 6500 | 8*15° | 810 | 70+ | 75 | 24 | 10.8 |
| BPS300-0510 | 1620 | 21.6 |
