IP68

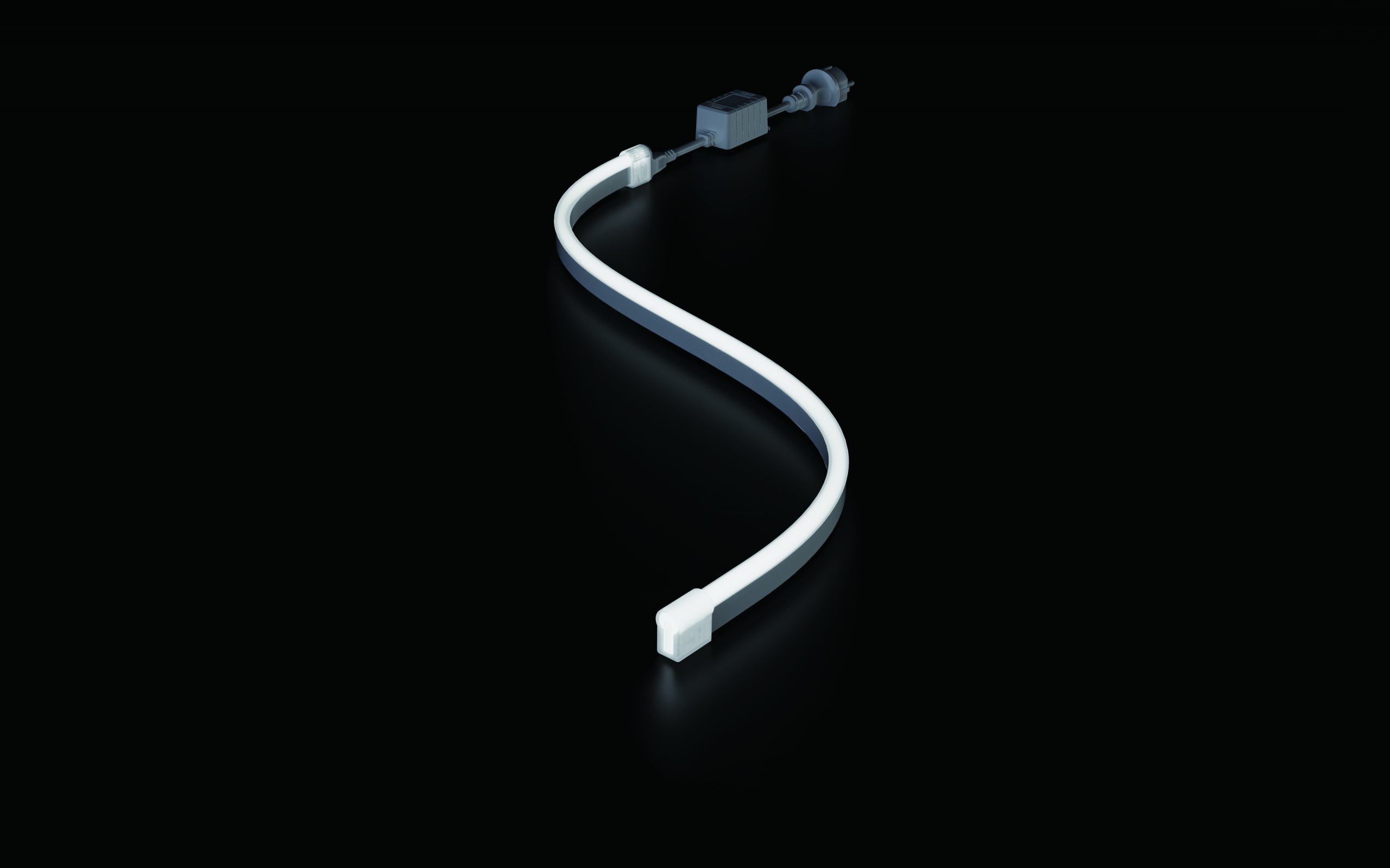

220V High Voltage Side-Bend Neon Flex AN2-4
No: AN2-4
~497lm/M
10W/m
Ra: ≥80
QTY: 120
Light Efficacy: 51lm/W
Run Length:50mm
10mm(W) / 25mm(H)
- -Color options: Tunable white, RGBY.
- -Design: Superior design with exquisite craftsmanship ensure stable and reliable performance.
- -Flexibility: Side bending, min. bend diameter 30mm[1.18].
- -IP grade: Silicone extrusion, molding pressed IP68 protection.
- -Warranty: 5 years indoor, 3 years outdoor.
- -Customization: multiple spec options, can be customized upon requirements.
DataSheet
-
AN2-4View PDF DataSheetNEW

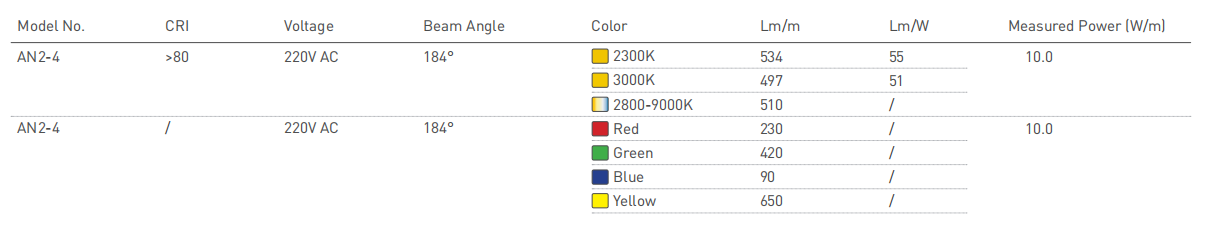

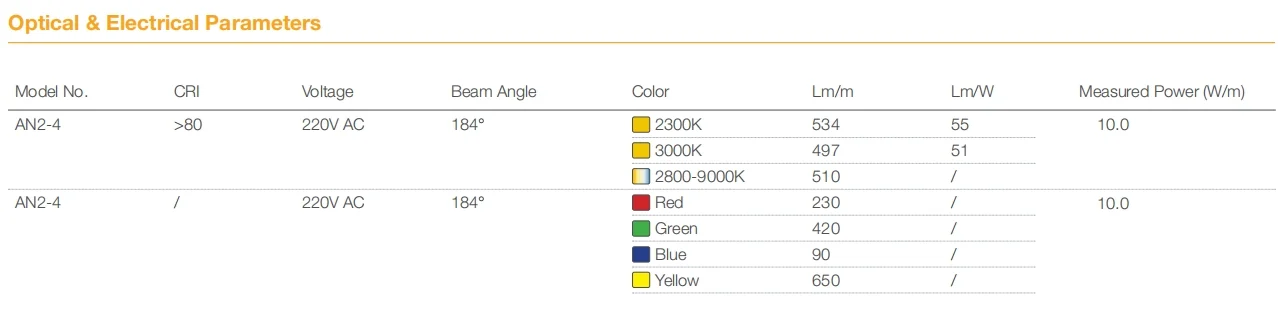

General Parameters 220V High Voltage Side-Bend Neon Flex AN2-4
| Model No. | CRI | Voltage | Beam Angle | Color | Lm/m | Lm/W | Measured Power (W/m) |
| AN2-4 | >80 | 220V AC | 184° | 2300K | 534 | 55 | 10 |
| 3000K | 497 | 51 | |||||
| 2800-9000K | 510 | / | |||||
| AN2-4 | / | 220V AC | 184° | Red | 230 | / | 10 |
| Green | 420 | / | |||||
| Blue | 90 | / | |||||
| Yellow | 650 | / |
