IP66
A4-FW
No: A4-FW
- 220V AC input.
- Self-designed 170° wide beam angle for uniform light.
- Curtain style, 6pcs each string for easy installation.
- Multiple specifications, support customization.
- Do not support PWM dimming.
DataSheet
-
A4-FWView PDF DataSheet

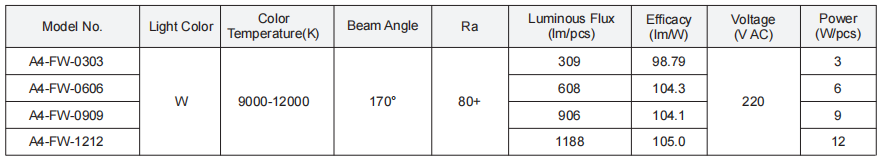

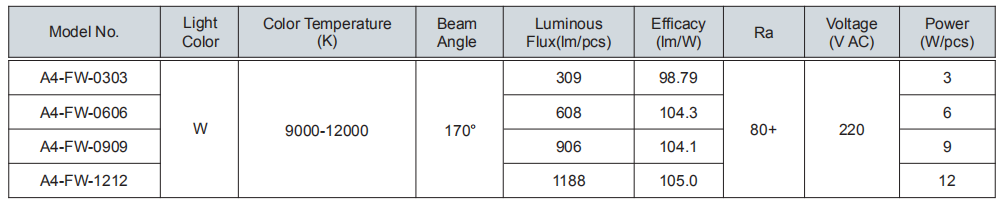

General Parameters A4-FW
| Model No. | Light Color | Color Temperature(K) | Beam Angle | Ra | Luminous Flux (lm/pcs) | Efficacy (lm/W) | Voltage (V AC) | Power (W/pcs) |
| A4-FW-0303 | W | 9000-12000 | 170° | 80+ | 309 | 98.79 | 220 | 3 |
| A4-FW-0606 | 608 | 104.3 | 6 | |||||
| A4-FW-0909 | 906 | 104.1 | 9 | |||||
| A4-FW-1212 | 1188 | 105.0 | 12 |
