IP66
A1 2.0
No: A1 2.0
- 220V AC direct, eliminating the need and failure of DC driver
- Aluminum PCB with PC cover, IP66 suitable for outdoor use
- High efficiency & high power factor with PF>0.9,η>90%
- Wide input voltage range from 85-240VAC
- Power supply with filling and solidifying technology, safe and environmental protection
- Two length in 0.6m & 1.2m for option
- 6PCS a group, single bar cuttable
DataSheet
-
A1 2.0View PDF DataSheet

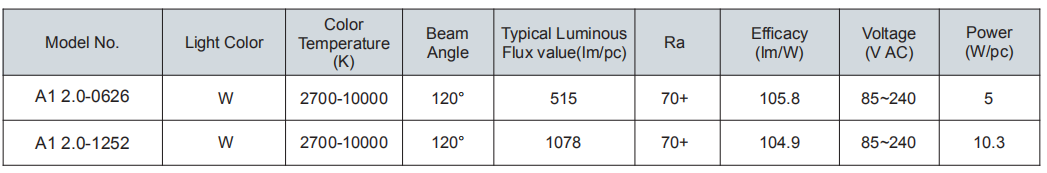

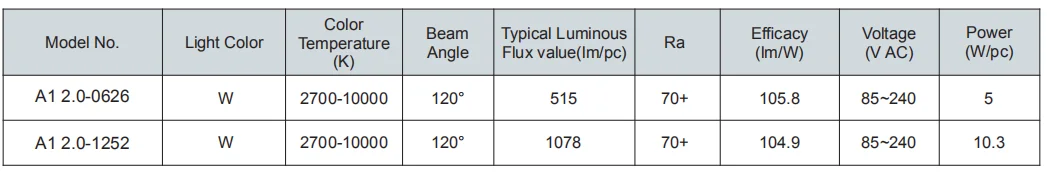

General Parameters A1 2.0
| Model No. | Light Color | Color Temperature (K) | Beam Angle | Typical Luminous Flux value(lm/pc) | Ra | Efficacy (lm/W) | Voltage (V AC) | Power (W/pc) |
| A1 2.0-0626 | W | 2700-10000 | 120° | 515 | 70+ | 105.8 | 85~240 | 5 |
| A1 2.0-1252 | W | 2700-10000 | 120° | 1078 | 70+ | 104.9 | 85~240 | 10.3 |
