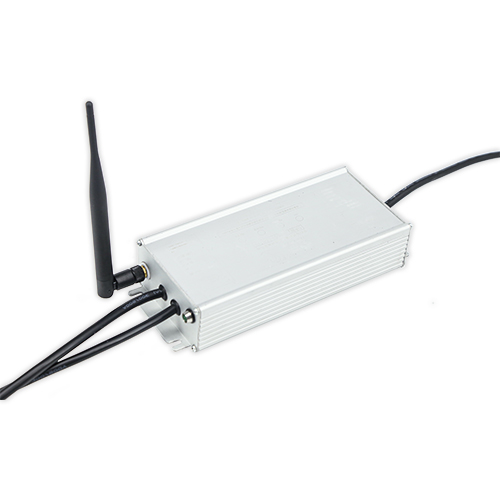

400W SMART WIRELESS POWER SUPPLY-BV-P24400-B
No: 400W SMART WIRELESS POWER SUPPLY-BV-P24400-B
- Remote dimming;
- Timing switch / dimming (carry out the plan);
- One key batch operation;
- Voice control;
- Expansion: automatic dimming with sensor and scene switching with touch screen；
DataSheet
-
BV-P24400-BView PDF DataSheet

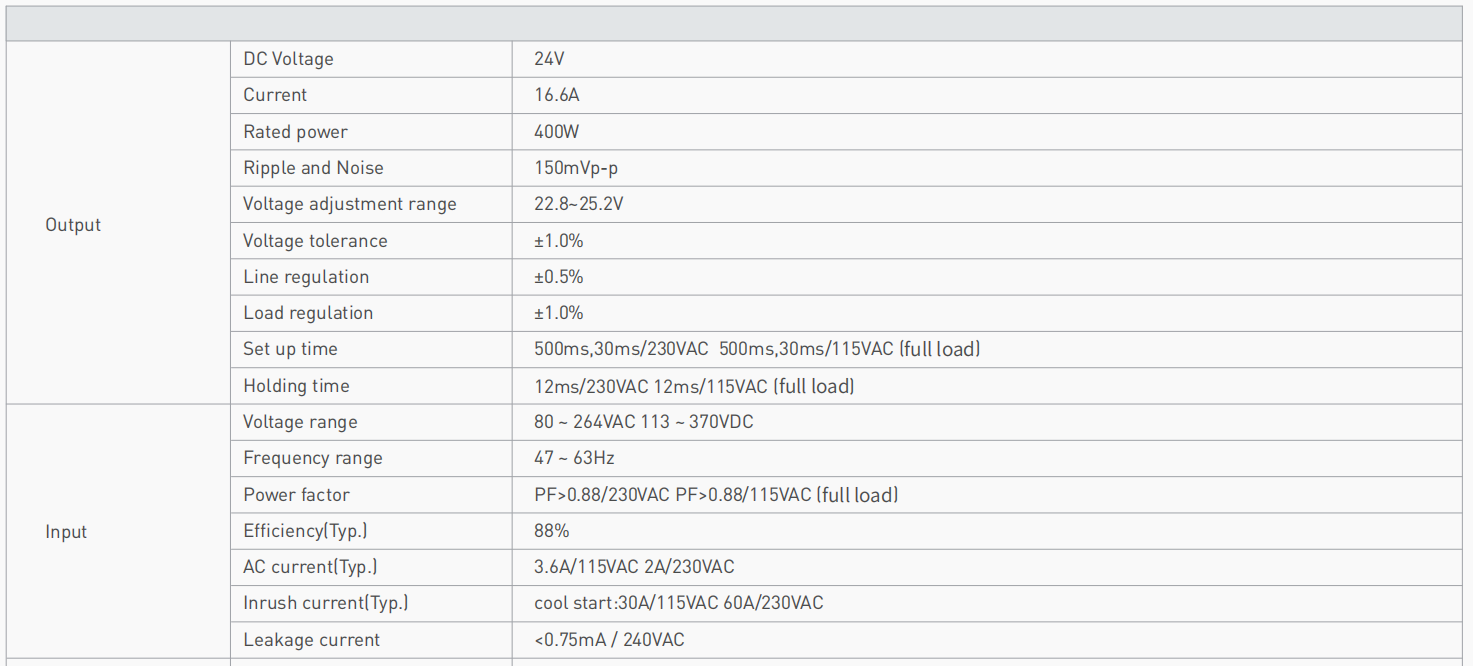

General Parameters 400W SMART WIRELESS POWER SUPPLY-BV-P24400-B
| Output | DC Voltage | 24V |
| Current | 16.6A | |
| Rated power | 400W | |
| Ripple and Noise | 150mVp-p | |
| Voltage adjustment range | 22.8~25.2V | |
| Voltage tolerance | ±1.0% | |
| Line regulation | ±0.5% | |
| Load regulation | ±1.0% | |
| Set up time | 500ms,30ms/230VAC 500ms,30ms/115VAC (full load) | |
| Holding time | 12ms/230VAC 12ms/115VAC (full load) | |
| Input | Voltage range | 80 ~ 264VAC 113 ~ 370VDC |
| Frequency range | 47 ~ 63Hz | |
| Power factor | PF>0.88/230VAC PF>0.88/115VAC (full load) | |
| Efficiency(Typ.) | 88% | |
| AC current(Typ.) | 3.6A/115VAC 2A/230VAC | |
| Inrush current(Typ.) | cool start:30A/115VAC 60A/230VAC | |
| Leakage current | <0.75mA / 240VAC |
