IP20
24V RGB+W Multi-color Strip TN-4040RGB+2835W
No: TN-4040RGB+2835W-192-24
~1148lm/M
25W/m
Ra: ≥90
SMD4040
QTY: 192
Light Efficacy: 44lm/W
Run Length:3mm
12mm(W) / 1.8mm(H)
- Adopt 4040 RGB 3in1 LED and 2835 white LED SMD
- Flexible and cuttable every 12 LEDs
- Long lifespan with great lumen maintenance
- To achieve rich light effects change with external controller
- Multiple spec optional, customization available
DataSheet
-
TN-4040RGB+2835W-192-24View PDF DataSheetNEW

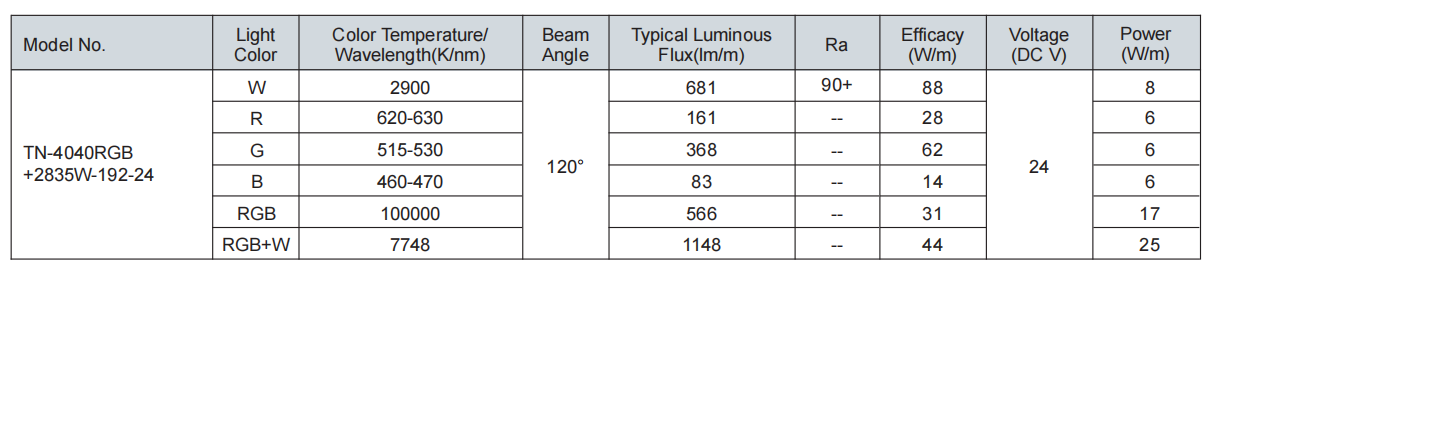

General Parameters 24V RGB+W Multi-color Strip TN-4040RGB+2835W
| Model No. | Light Color | Color Temperature/Wavelength(K/nm) | Beam Angle | Typical Luminous Flux(lm/m) | Ra | Efficacy (W/m) | Voltage (DC V) | Power (W/m) |
| TN-4040RGB +2835W-192-24 | W | 2900 | 120° | 681 | 90+ | 88 | 24 | 8 |
| R | 620-630 | 161 | — | 28 | 6 | |||
| G | 515-530 | 368 | — | 62 | 6 | |||
| B | 460-470 | 83 | — | 14 | 6 | |||
| RGB | 100000 | 566 | — | 31 | 17 | |||
| RGB+W | 7748 | 1148 | — | 44 | 25 |
