IP20

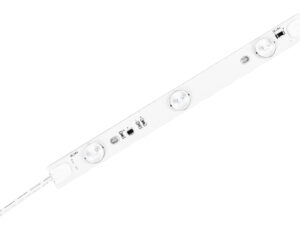

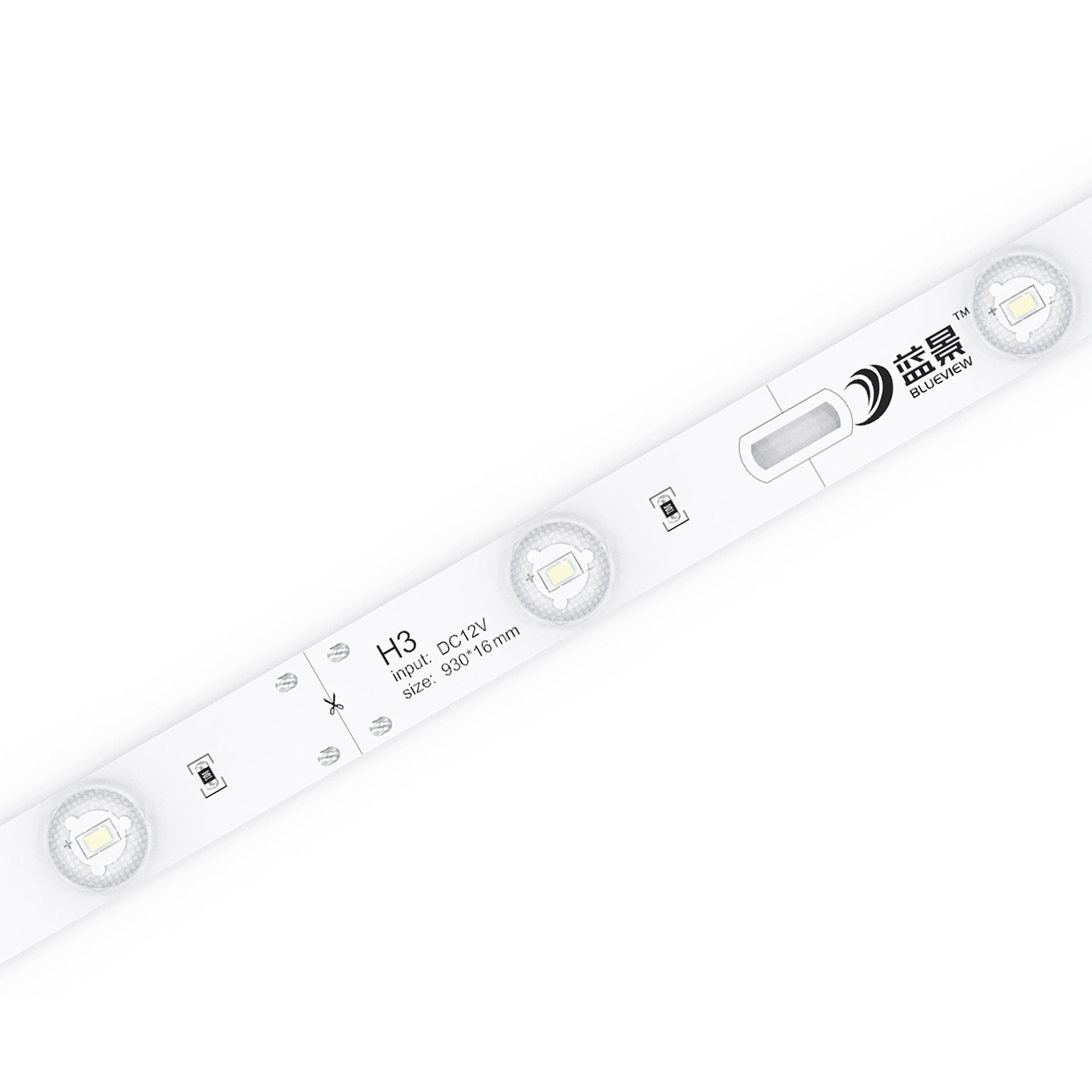

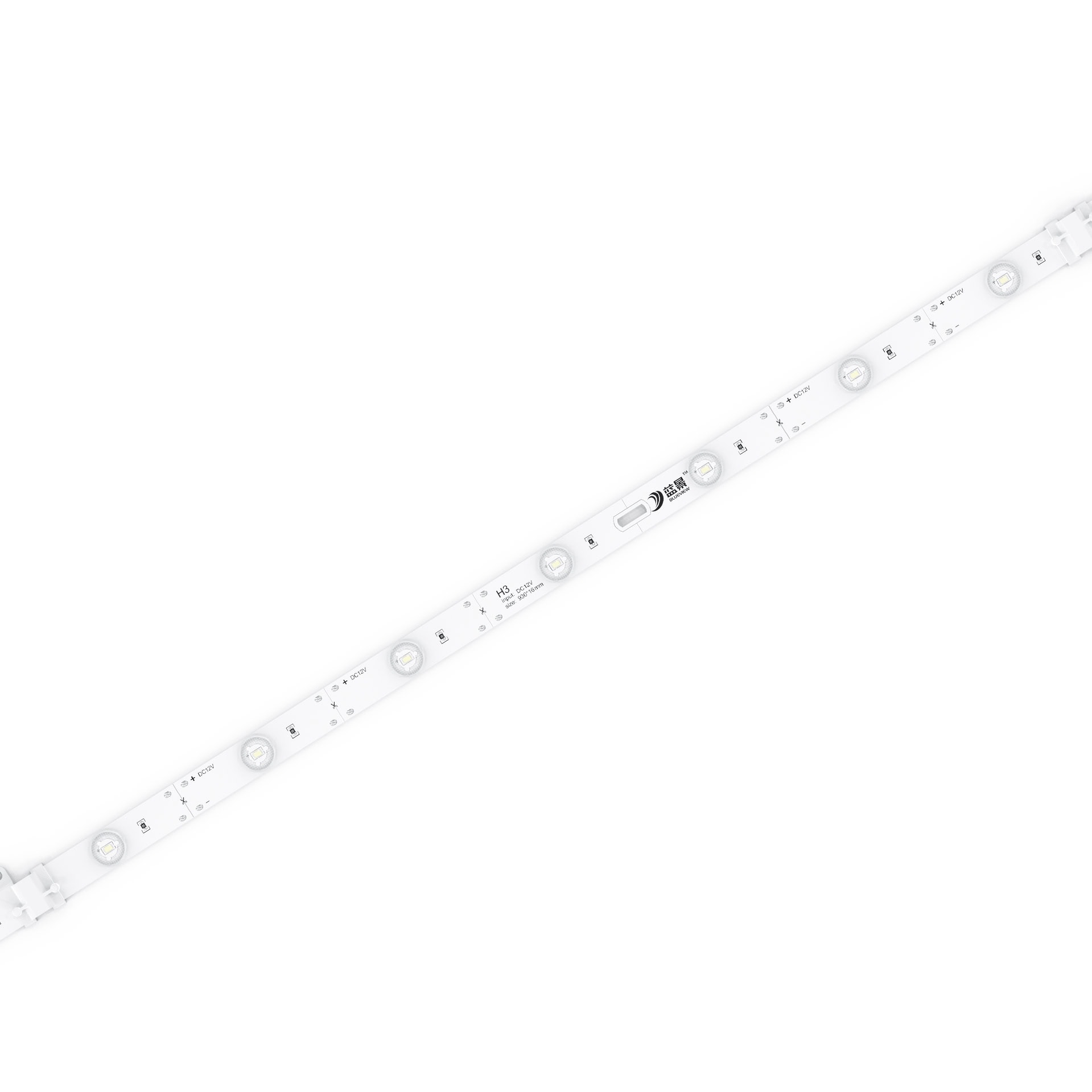

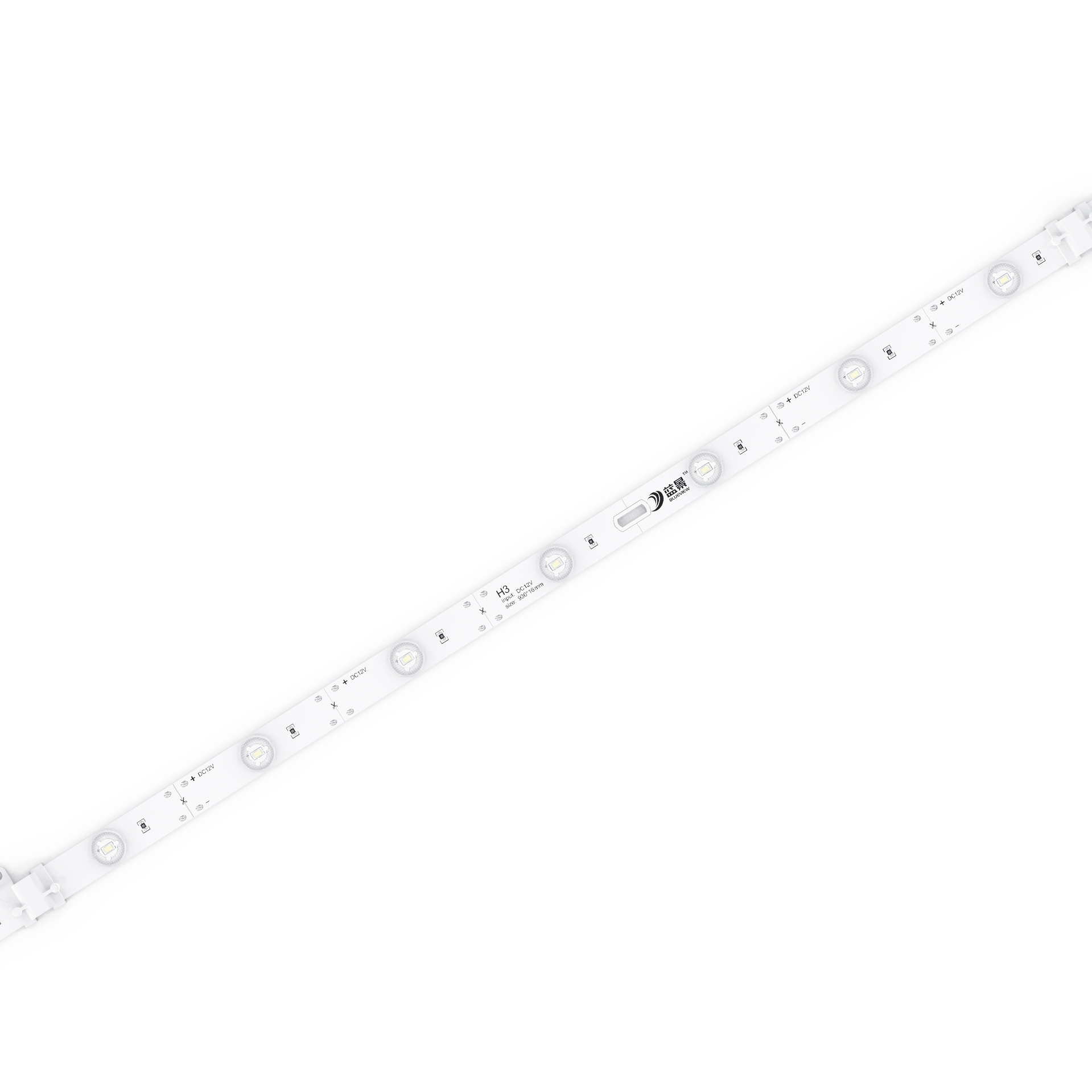

H3
No: H3
- Self-designed secondary lens for uniform light
- Aluminum PCB for direct and quick heat dissipation
- Curtain style for easy mounting
- Exclusive designed clips for easy installing and beauty appearance
- Single LED can be cut, multiple specifications, customization available
DataSheet

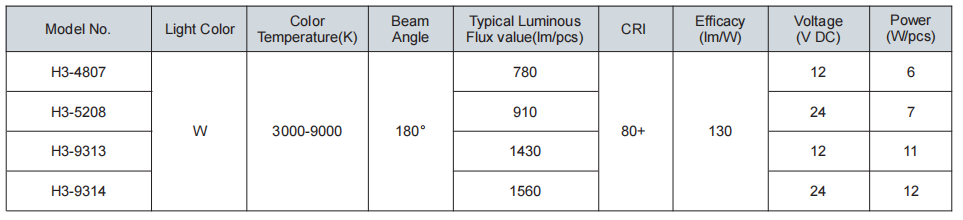

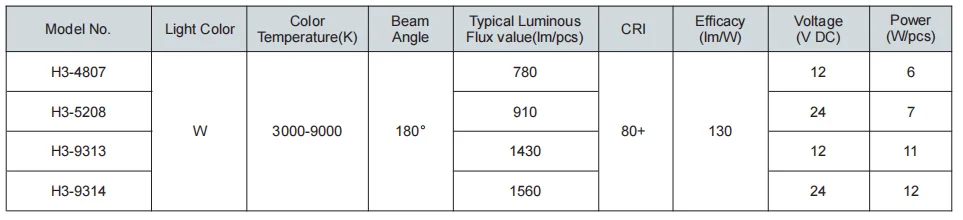

General Parameters H3
| Model No. | Light Color | Color Temperature(K) | Beam Angle | Typical Luminous Flux value(lm/pcs) | CRI | Efficacy (lm/W) | Voltage (V DC) | Power (W/pcs) |
| H3-4807 | W | 3000-9000 | 180° | 780 | 80+ | 130 | 12 | 6 |
| H3-5208 | 910 | 24 | 7 | |||||
| H3-9313 | 1430 | 12 | 11 | |||||
| H3-9314 | 1560 | 24 | 12 |
