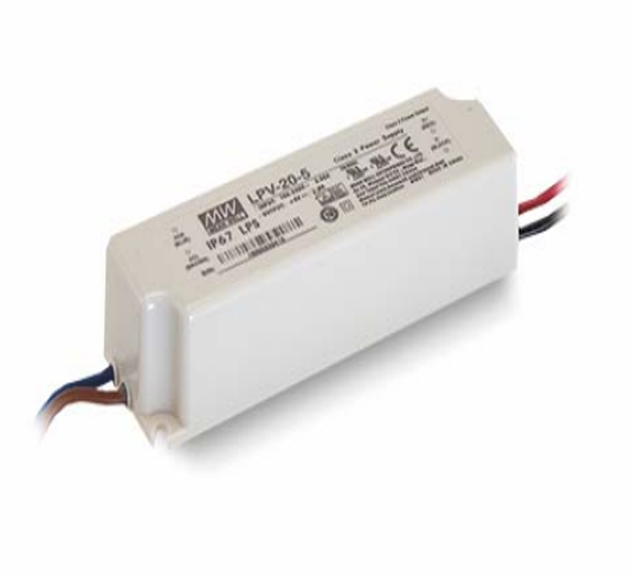

LPV-20 series WATERPROOF POWER SUPPLY

E318168ce

– Constant voltage design
– universal AC input/full range
– withstand 300VAC surge input for 5 seconds
– protection:short circuit/overload/over voltage
– cooling by free air convection
– small and compact size
– fully encapsulated with IP67 level (note.7)
– fully isolated plastic case
– class Ⅱ power unit,no FG
– class 2 power unit
– pass LPS
– 100% full load burn-in test
– low cost,high reliability
– 2 years warranty
– suitable for led related fixture or appliance(such as led decoration or advertisement devices)

Description

Part No.	Input Vol.	Output Vol.	Output Power	Input Current	Rated current	Power Efficiency	Product Size
LPV-20-5	90-264VAC;127-370VDC	5VDC	15W	O.55A/115VAC;0.35A/230VAC	3A	77%	1183526mm
LPV-20-12	90-264VAC;127-370VDC	12VDC	20W	0.55/115VAC;0.35A/230VAC	1.67A	81%	1183526mm
LPV-20-15	90-264VAC;127-370VDC	15VDC	20W	0.55A/115VAC;0.35A/230VAC	1.33A	83%	1183526mm
LPV-20-24	90-264VAC;127-370VDC	24VDC	20.2W	0.55A/115VAC;0.35A/230VAC	0.84A	83%	1183526mm

E318168ce

SPECIFICATION SHEET
